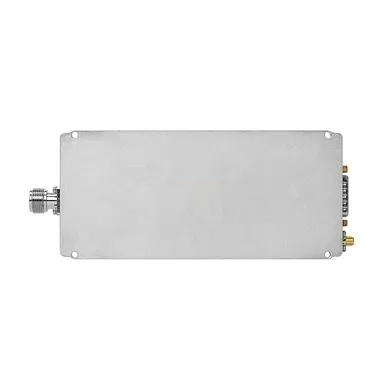

Unleash the Power of Your Communications with the High Power 5150-5900MHz PA Module
nnIn the demanding world of modern communications, signal integrity and strength are non-negotiable. Whether you are navigating complex radar systems, ensuring the stability of drone flights, or pushing the boundaries of satellite communication, the need for reliable, high-performance amplification is paramount. We are proud to introduce the High Power 5150-5900MHz PA Module—a state-of-the-art 100W power amplifier module designed to unlock a new realm of possibility for your critical applications. This powerful module delivers a robust signal amplification capability of up to 48dBm output, providing the muscle needed to overcome interference and maintain crystal-clear communication in even the most challenging environments. By choosing this solution, you are investing in advanced technology that guarantees stellar performance and unwavering reliability for your most important projects.nnThe core of this module lies in its sophisticated design, which includes a built-in noise-modulation signal source. This key feature actively improves the overall signal quality by reducing unwanted noise and interference, ensuring that your transmissions are both powerful and precise. The result is a cleaner, more stable signal that supports higher data rates and more dependable connections. This is not just a component; it is a comprehensive solution engineered to meet the rigorous standards of professional and industrial communication systems.nn
Versatile Applications of the 100W Power Amplifier Module
nnThis module is engineered for versatility, seamlessly integrating into a wide spectrum of high-stakes operations. Its robust power and precise control make it an ideal choice for:nn- Radar Systems: Requires a stable, high-power signal for precise detection and ranging. The module’s excellent gain and low in-band fluctuation provide the accuracy needed for reliable target identification.n- Unmanned Aerial Vehicles (UAVs) and Drones: Demands a consistent, powerful link for stable flight control and high-definition video transmission. The module’s 100W output ensures your drone remains connected over long distances and through adverse conditions.n- Satellite Communications: Necessitates a highly efficient and reliable amplifier for maintaining stable data links to orbiting satellites. The module’s exceptional linearity and thermal management guarantee that satellite ground stations can operate at peak efficiency, even under continuous heavy load.nn
Robust Protection and Reliability Features
nnReliability in the field is critical. One of the most valuable features of this module is its integrated over-temperature cutoff function. This intelligent safety mechanism automatically engages when the internal temperature exceeds safe operating limits, providing reliable over-temperature protection. By preventing thermal damage, this feature significantly extends the operational lifespan of the module, safeguarding your investment and ensuring your communication systems remain online when you need them most. This proactive protection, combined with the module’s rugged construction, allows it to perform consistently in harsh environments with extreme temperature swings.nn
Technical Specifications of the High Power RF Module
nnTo give you a complete understanding of its capabilities, here are the detailed technical parameters for the High Power 5150-5900MHz PA Module. All specifications are presented in a structured format for clarity.nn
| Item | Parameter | Remark / Condition |
|---|---|---|
| Frequency | 5150-5350MHz / 5700-5900MHz | Dual-band operation |
| Working Voltage | 30V (28-32V) | Nominal operating range |
| Max Output Power | 49±1dBm | Approximately 80-100W |
| Working Current | 7.5A @80W typical | Dependent on output power |
| Controllable Output Power | 50W～100W | Via ALC and voltage control |
| ALC Power Regulation Range | ≥3dB | Voltage-controlled attenuation |
| Gain | 50±1.0dB | Small signal gain |
| In-band Fluctuation | ±2dB (Peak to Peak) | Within operating band |
| Max Allowable Input | ≥+10dBm | Lasts for 1 minute without damage |
| Input VSWR | ≤1.50 | With +28V, standard network output -10dBm |
| Input VSWR (Powered) | ≤1.50 | With power on, dual directional coupler test |
| Working Temperature | -10℃～+55℃ | Environment |
| Gain Stability | ±1.5dB | @-10℃～+55℃ |
| Power Stability | ±1.5dB | @-10℃～+55℃ |
| Power Supply Requirement | ≥8A @+30Vdc | For 100W continuous wave output |
| Power Supply / Control Interface | 7W2 | A1: VCC+28V; A2: GND |
| Control Signals | TEMP_AL (Temp Alarm), RUN (Running), VSWR_AL (VSWR Alarm), PA_EN (Enable) | Active high/low as per detailed pinout |
| RF Output Connector | N-Type Female (N-F) | Standard |
| Module Protection | Temperature compensation, over-temperature protection, VSWR protection | Built-in safety features |
| Signal Source | Built-in high-speed noise modulation signal source | Reduces interference |
| LED Indicators | POWER (Power), RUN (Running), VSWR (Standing wave alarm) | Visual status indication |
nn
Conclusion: The Optimal Choice for High-Power RF Needs
nnBy integrating this module into your system, you are not just purchasing a component; you are acquiring a cornerstone for high-performance communication. The High Power 5150-5900MHz PA Module offers an unmatched blend of raw power, intelligent design, and robust protection. From its high-speed noise modulation for cleaner signals to its comprehensive thermal and VSWR protection for long-term durability, every aspect is engineered for excellence. As a best RF power module supplier, our commitment to quality is evident in the rigorous testing and precise manufacturing of this 100W amplifier. Choose advanced technology, choose reliable performance, and choose the High Power 5150-5900MHz PA Module to provide a solid, unshakeable foundation for your most demanding communication projects.
