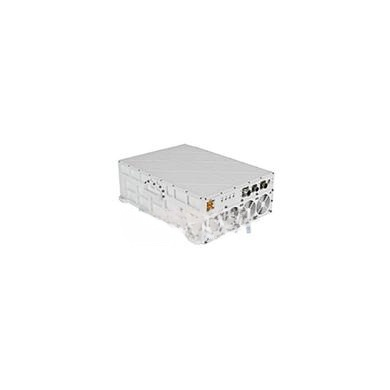

Exceptional Signal Amplification with the V Band SSPA Module
nIn the rapidly evolving field of RF communication, achieving effective amplification and precise signal transmission is crucial for maintaining stable system operations. Our V Band SSPA Module stands out as a premier solution, combining cutting-edge technology with robust performance to meet the demands of professional applications. Designed to excel in challenging environments, this module ensures reliable signal integrity, making it an indispensable component for satellite communications, radar systems, and beyond. By delving into its core specifications and operational benefits, you can understand why this device sets a new standard in high-frequency amplification.nn
Core Performance Parameters of the V Band SSPA Module
nAt the heart of this module lies an impressive set of performance metrics tailored for high-demand scenarios. Covering a frequency range of 47 to 51 GHz, the V Band SSPA Module adapts seamlessly to diverse RF environments, ensuring consistent operation. Its rated power of +53 dBm (200W) delivers exceptional signal strength, enabling long-distance transmission through complex media without degradation. This powerful output is vital for applications like satellite uplinks and advanced radar detection, where signal fidelity is non-negotiable.nnThe gain adjustment feature offers remarkable flexibility, allowing precise increments of 0.1 dB within a 0 to 25 dB range. Users can fine-tune gain values to meet specific requirements, achieving personalized signal amplification. Meanwhile, gain flatness is meticulously controlled at ≤0.5 dBp-p, ensuring uniform performance across the entire frequency band and minimizing signal distortion. Gain stability is equally impressive, with a rating of ±0.5 dB per 24 hours, guaranteeing reliable amplification during extended operations.nn
Signal Purity and Noise Management
nSignal purity is a cornerstone of the V Band SSPA Module’s design. Stray signal suppression exceeds -60 dBc, effectively reducing external interference and preserving signal accuracy. Additionally, noise power density is capped at ≤ -135 dBW/4 kHz, further enhancing signal clarity in noisy environments. The third-order intermodulation (IM3) sits at -23 dBc, while AM/PM characteristics are maintained at ≤ 3°/dB, and group delay is ≤ 0.5 ns (p-p). These parameters collectively ensure high-quality amplification and transmission, even under strenuous conditions.nn
Technical Specifications of the V Band SSPA Module
nTo provide a comprehensive overview, the following table outlines key electrical and mechanical specifications, ensuring you have all necessary data for integration and deployment.nn
| Parameter | Value |
|---|---|
| Electrical Specifications | |
| Frequency Range | 47-51 GHz |
| Rated Power | +53 dBm / 200 W |
| Gain Adjustment | 0~25 dB (Step 0.1 dB) |
| Gain Flatness | ≤0.5 dBp-p |
| Gain | ≥65 dB |
| Gain Stability | ±0.5 dB/24h |
| IM3 | -23 dBc |
| Spurious | ≤-60 dBc |
| Noise Power Density | ≤-135 dBW/4 kHz |
| AM/PM | ≤3°/dB |
| Group Delay | ≤0.5 nS (p-p) |
| Power Supply | 220 VAC (47-63 Hz) |
| Power Consumption | 1800 W |
| Mechanical Specifications | |
| Dimensions | 500 × 350 × 160 mm |
| Weight | 38 kg |
| RF Connectors | Input: WR19/BJ500; Output: WR19/BJ500 |
| Communication Interface | LAN/RS485/RS422/RS232 (optional) |
| Cooling | Forced Air Cooling |
nn
Conclusion: The Ultimate Solution for High-End RF Applications
nIn summary, the V Band SSPA Module offers a reliable and efficient solution for high-end RF communication and radar detection. Its powerful 200W output, precise gain control, and superior signal purity make it a top choice for professionals seeking performance and reliability. Whether deployed in satellite systems or advanced radar networks, this module ensures robust performance with comprehensive electrical and mechanical design. By integrating this device into your system, you can achieve exceptional signal quality and operational efficiency, solidifying your position in demanding RF environments.
