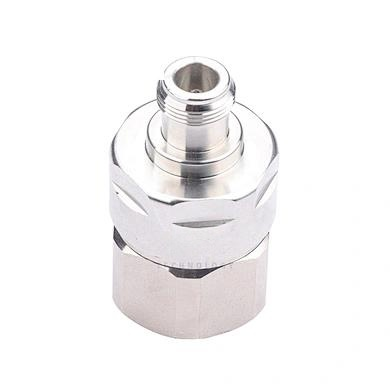

MOP-CN-NF-CF78: The Ultimate N Straight Female Connector for 7/8-Inch RF Cables
nn
In the demanding world of wireless communication, every connection matters. The MOP-CN-NF-CF78 is an N straight female connector meticulously engineered for 7/8-inch flexible RF cables, delivering exceptional performance across a broad spectrum of applications. Whether deployed in cellular base stations, distributed antenna systems, or high-frequency test equipment, this connector ensures reliable signal integrity and long-term durability. Crafted from high-quality brass with silver plating and PTFE insulation, it offers a perfect blend of conductivity, corrosion resistance, and thermal stability. With 50 Ohm impedance, a DC to 6 GHz wide frequency range, low VSWR, and minimal insertion loss, the MOP-CN-NF-CF78 stands out as a robust solution for RF connections. Its IP68 waterproof rating, wide temperature tolerance, and stable passive intermodulation (PIM) performance make it an ideal choice for outdoor and harsh environments. Fully compliant with RoHS standards, this connector is designed to meet the rigorous demands of modern wireless infrastructure.
nn
Unmatched Technical Specifications for Reliable RF Performance
nn
When selecting a connector for critical RF systems, understanding its technical specifications is paramount. The MOP-CN-NF-CF78 excels in every key parameter, ensuring that your network operates at peak efficiency. Below is a comprehensive breakdown of its material composition, electrical characteristics, and environmental resilience.
nn
| Parameter | Specification |
|---|---|
| MOP Model | MOP-CN-NF-CF78 |
| Connector Type | N Straight Female Connector for 7/8 Flexible RF Cable |
| Inner Conductor Pin Material & Plating | Brass / Silver Plating |
| Inner Conductor Socket Material & Plating | Tin-bronze / Silver Plating |
| Body & Outer Conductor Material & Plating | Brass / Trimetal Plating |
| Insulator Material | PTFE |
| Gasket Material | Silicon Rubber |
| Nut Material & Plating | Brass / Nickel Plated |
| Impedance | 50 Ohm |
| Frequency Range | DC ~ 6 GHz |
| Insulation Resistance | ≥ 10000 MΩ |
| Center Contact Resistance | ≤ 1.5 MΩ |
| Outer Contact Resistance | ≤ 1.5 MΩ |
| Dielectric Strength | 2500 V rms |
| Working Voltage | 1400 V rms |
| Insertion Loss | ≤ 0.10 dB |
| VSWR (Voltage Standing Wave Ratio) | ≤ 1.10 |
| PIM (2x20W) | ≤ -160 dBc |
| Durability (Matings) | ≥ 500 cycles |
| Thermal Shock Test | MIL-STD-202F, Method 107G, Test Condition B |
| Vibration Test | MIL-STD-202, Method 204, Condition B |
| Temperature Range | -65°C ~ +165°C |
| RoHS Compliance | Compliant |
| Sealing Class | IP68 (24 hours at 1 meter depth, 20°C) |
nn
Why Low VSWR and Insertion Loss Matter in RF Connections
nn
The MOP-CN-NF-CF78 achieves a VSWR of ≤1.10 and insertion loss of ≤0.10 dB, which directly translates to superior signal transmission with minimal reflection and power loss. In wireless communication systems, such as 4G/5G base stations or in-building coverage solutions, these parameters reduce signal degradation and enhance overall network capacity. The low passive intermodulation (PIM) performance of ≤-160 dBc further ensures that the connector does not introduce unwanted interference, which is critical for high-traffic environments where signal clarity is non-negotiable.
nn
Built for the Long Haul: Environmental and Mechanical Robustness
nn
Outdoor RF deployments face extreme conditions, from freezing temperatures to heavy rain. The MOP-CN-NF-CF78 is designed to withstand these challenges. Its IP68 rating guarantees protection against continuous immersion in water up to 1 meter for 24 hours, making it suitable for rooftop antennas, tower installations, or underground cabling. The wide temperature range of -65°C to +165°C and compliance with military-standard thermal shock and vibration tests (MIL-STD-202) mean the connector maintains performance under rapid temperature changes and mechanical stress. With a durability of over 500 mating cycles, this connector is built for repeated use without degradation.
nn
Application Versatility: From Telecom to Test Equipment
nn
The MOP-CN-NF-CF78 is not just a connector; it is a gateway to reliable RF connectivity. Its N-type female interface and compatibility with 7/8-inch flexible cables make it a staple in telecom infrastructure, including macrocell and small cell installations. Beyond telecommunications, it is equally valuable in laboratory setups, broadcast systems, and military communication devices where precision and durability are paramount. The high-quality silver-plated contacts ensure low resistance and excellent signal conductivity, reducing maintenance intervals and operational costs over the product’s lifespan.
nn
Conclusion: Elevate Your RF Network with the MOP-CN-NF-CF78
nn
In summary, the MOP-CN-NF-CF78 is more than just an N straight female connector; it is a comprehensive solution for demanding RF applications. Its advanced material selection—featuring brass, silver plating, and PTFE insulation—delivers optimal electrical performance with minimal signal loss. The emphasis on low VSWR, low insertion loss, and stable PIM performance ensures that your network maintains high data throughput and reliability. The IP68 sealing and wide temperature tolerance make it a champion in outdoor and industrial environments. By choosing the MOP-CN-NF-CF78, you invest in a connector that meets rigorous industry standards, simplifies installation, and guarantees long-term performance. For any wireless communication system requiring a robust, high-frequency connection, this connector is the benchmark.
