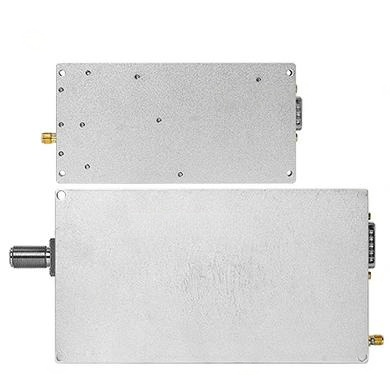

Revolutionizing RF Amplification with the DDS Power Amplifier Module
nnAs one of the premier RF amplifier manufacturers, we are proud to introduce our cutting-edge 50W 4000-6000MHz DDS power amplifier solution. This high-performance amplifier module seamlessly integrates direct digital synthesis (DDS) technology with robust RF amplification, delivering exceptional signal purity and power efficiency across the 4-6GHz frequency range. The innovative DDS power amplifier core ensures precise frequency control and ultra-low phase noise, making it an ideal choice for advanced radar, electronic warfare, and 5G test applications. Our expertise as renowned RF amplifier manufacturers is evident in the module’s sophisticated thermal design, which maintains stable 50W output even under continuous operation. This amplifier module represents the next generation of DDS power amplifier technology, offering 4000-6000MHz broadband operation, 50W saturated output power, integrated DDS signal generation, and a compact, ruggedized package. Trusted by defense and telecom industries worldwide, our solution combines the reliability of top RF amplifier manufacturers with innovative DDS power amplifier architecture, delivering unmatched performance for your most demanding RF challenges.nn
Key Features of the DDS Power Amplifier Module
nnThis amplifier module boasts a comprehensive set of features designed to meet the rigorous demands of modern RF systems. The integrated DDS technology enables rapid frequency hopping and precise waveform synthesis, while the high-efficiency GaN-based amplification ensures minimal power loss. The module’s robust construction includes a machined aluminum housing with integrated heat sinking, allowing for passive cooling in a wide range of environments. Additionally, built-in protection circuits guard against over-voltage, over-current, and reverse polarity, ensuring long-term reliability in field deployments.nn
Advanced Performance Specifications
nnTo fully appreciate the capabilities of this DDS power amplifier module, we have compiled its key specifications in the table below. These parameters highlight the module’s exceptional performance across critical metrics, from operating frequency and output power to harmonic suppression and efficiency.nn
| Parameter | Unit | Min | Typ | Max | Symbol |
|---|---|---|---|---|---|
| Operating Frequency | MHz | 4000 | – | 6000 | Fo |
| Operating Bandwidth | MHz | – | 1600 | – | BW |
| Peak Output Power @CW Signal | W | – | 50 | – | PSAT |
| Input Power | dBm | – | -2±3 | – | PIN |
| Maximum Input Power @Without Damage | dBm | – | – | 5 | PIN, MAX |
| Power Gain @Input Power 0dBm | dB | – | 48±3 | – | GP |
| Gain Flatness @Input Power 0dBm | dB | – | – | ±3 | ∆GP |
| Efficiency | % | – | 25 | – | EFF |
| Harmonics 1 to N @Output Power 40W | dBc | 10 | – | – | HN |
| Spurious Level | dBc | 60 | – | – | Spur |
| Input VSWR | dB | – | – | 2:1 | VSWR |
| Output VSWR | dB | – | – | 2:1 | VSWR |
| Operating Voltage | V | 28 | – | 30 | VDC |
| Current Consumption @Output Power 40W | A | – | 6.5 | – | IDC |
nn
Applications in Modern RF Systems
nnThe DDS power amplifier module excels in a variety of high-stakes environments. In electronic warfare systems, its fast frequency agility and low phase noise enable effective jamming and signal intelligence. For 5G infrastructure, the module supports beamforming and massive MIMO testing, providing clean, high-power signals for validation. Radar systems benefit from the module’s ability to generate complex pulse trains with minimal distortion, enhancing target detection and tracking. Additionally, its compact footprint allows for integration into space-constrained platforms such as UAVs and portable test sets.nn
Trusted by Industry Leaders
nnAs dedicated RF amplifier manufacturers, we have partnered with defense contractors and telecom innovators to refine this DDS power amplifier module. Rigorous qualification testing—including thermal cycling, shock, and vibration—ensures that each unit meets military-grade standards. The module’s design incorporates field-replaceable connectors and standard mounting interfaces, simplifying maintenance and upgrade cycles. With a proven track record in mission-critical applications, this DDS power amplifier module delivers the reliability and performance that industry professionals demand.nn
Why Choose Our DDS Power Amplifier Module?
nnSelecting the right amplifier module can make or break your RF system. Our solution offers distinct advantages over traditional designs. First, the integrated DDS eliminates the need for external signal sources, reducing system complexity and cost. Second, the broadband coverage from 4000 to 6000 MHz allows a single module to support multiple bands, streamlining inventory and design efforts. Third, the exceptional linearity and harmonic suppression minimize filtering requirements, further simplifying your chain. Finally, as established RF amplifier manufacturers, we provide comprehensive technical support, including application notes, simulation models, and direct engineering assistance. This commitment ensures that your DDS power amplifier module is optimized for your specific use case, from test bench to field deployment.nn
Conclusion: Elevate Your RF Performance
nnIn the fast-evolving world of wireless communications and defense electronics, the choice of amplifier technology directly impacts system success. Our 50W 4000-6000MHz DDS power amplifier module stands as a testament to the expertise of leading RF amplifier manufacturers, combining advanced DDS technology with proven amplification techniques. Whether you are developing next-generation radar, conducting 5G research, or fielding electronic warfare systems, this module provides the power, purity, and precision required. Choose our DDS power amplifier module for your next project and experience the difference that innovative engineering and rigorous manufacturing can make. Contact our team today to discuss integration and customization options for your specific requirements.
