Understanding the Oscillator Definition: The Heart of Modern Electronics
An oscillator is a fundamental electronic circuit that generates a periodic, oscillating signal—typically a sine wave or square wave—at a specific frequency. These circuits are the backbone of countless technologies, from simple timekeeping devices to complex satellite communication systems. The oscillator definition encompasses devices that convert direct current (DC) from a power supply into an alternating current (AC) signal, enabling precise timing and frequency generation. Without oscillators, modern electronics as we know them would not exist.
What Is a Dielectric Resonator Oscillator (DRO)?
Among the various types of oscillators, the dielectric resonator oscillator (DRO) stands out for its exceptional frequency stability, low phase noise, and high performance in radio frequency (RF) applications. A dielectric resonator oscillator uses a dielectric resonator—a high-quality (high-Q) ceramic component—to stabilize the oscillator’s frequency. This design makes DROs ideal for systems requiring precise and stable frequency generation, such as microwave transceivers, military communications, and aerospace systems.
The oscillator definition for a DRO is straightforward: it is a high-frequency RF oscillator that employs a dielectric resonator as its frequency-stabilizing element. The dielectric resonator, typically made from a ceramic material with low loss and high permittivity, provides excellent thermal stability and low phase noise. Unlike traditional LC or crystal oscillators, DROs operate at microwave frequencies, typically above 1 GHz, and are widely used in RF and microwave systems.
Key Advantages of Dielectric Resonator Oscillators
The key advantages of DROs include:
- High frequency stability – DROs maintain their frequency even under varying environmental conditions, thanks to the thermal properties of the ceramic resonator.
- Low phase noise – This reduces signal distortion, which is critical for communication and radar systems.
- Excellent harmonic suppression – DROs effectively filter out unwanted harmonics, ensuring cleaner signal output.
- Compact and robust design – Their small footprint and rugged construction make them suitable for demanding environments.
With these superior characteristics, DRO modules are essential for high-performance communication systems, including satellite communication, aviation, and military defense. In defense applications, they are used in radar, electronic warfare, and secure communication devices, where reliability and precision are paramount.

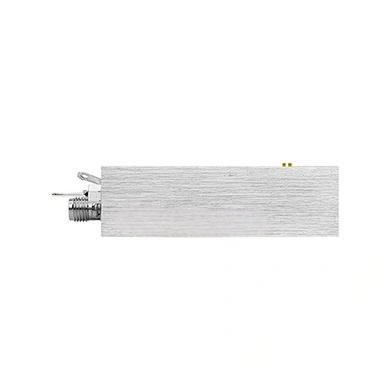

The MOPTECH Advanced Oscillator: A Prime Example of Excellence
The MOPTECH advanced oscillator is an awesome oscillator designed for demanding RF applications. It combines superior electrical performance with a rugged mechanical design, making it suitable for both commercial and military use. When considering why choose MOPTECH DRO, the answer lies in their leading phase noise performance, wide frequency selection, compact construction, and reliable power output. This awesome oscillator solution meets the needs of modern high-frequency RF systems.
Technical Specifications of the MOPTECH DRO
| Parameter | Frequency 9.65 GHz | Frequency 9.8 GHz | Frequency 9.9 GHz | Frequency 10.0 GHz | Frequency 10.1 GHz | Frequency 10.2 GHz | Frequency 10.3 GHz | Frequency 10.4 GHz | Frequency 10.5 GHz |
|---|---|---|---|---|---|---|---|---|---|
| Output Power (Pout, dBm) | 10 | 9.7 | 10 | 10 | 10 | 10 | 9.8 | 9.1 | 8.9 |
| Phase Noise @10 kHz (dBc/Hz) | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 | 85 |
| Phase Noise @100 kHz (dBc/Hz) | 112 | 112 | 112 | 112 | 112 | 112 | 112 | 112 | 112 |
| Second Harmonic (dBc) | 29 | 30 | 31 | 30 | 31 | 32 | 30 | 24 | 27 |
| 1/2 Harmonic (dBc) | 43 | 43 | 43 | 44 | 44 | 43 | 44 | 43 | 42 |
| 3/2 Harmonic (dBc) | 24 | 24 | 26 | 29 | 30 | 30 | 31 | 30 | 30 |
| Parameter | Value |
|---|---|
| +12V Current (mA) | 220 |
| Size | 54 x 40 x 18.5 mm |
| Connectors | SMA Female |
| Mounting | 4-Φ2.5 mm through-hole |
| Output Power (minimum) | 20 dBm |
| Operating Temperature | ‑40 to +80°C |
| Non-operating Temperature | ‑55 to +85°C |
This dielectric resonator oscillator delivers consistent performance across a range of frequencies, with low phase noise and robust harmonic suppression. The compact design and reliable power output make it an excellent choice for demanding RF environments.
Conclusion: Why the Oscillator Definition Matters in Modern Technology
In conclusion, understanding the oscillator definition—especially for specialized types like the dielectric resonator oscillator—is essential for selecting the right component for high-frequency applications. The MOPTECH DRO exemplifies the best qualities of an awesome oscillator, offering stability, low noise, and durability for critical systems in satellite communication, aviation, and defense. As technology advances, the role of oscillators will only grow, making their definition and performance more important than ever. Choosing a DRO like MOPTECH ensures reliable signal generation, whether in a laboratory or deep space.
