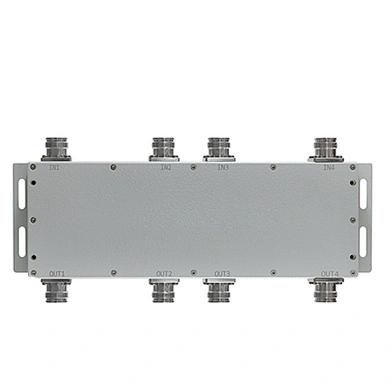

Elevate Your RF Network with the 4×4 Hybrid Coupler
n
The modern wireless landscape demands components that can handle complexity without compromise. Enter the 4×4 hybrid coupler, a high-performance RF device engineered for advanced signal combining and distribution across the broad frequency spectrum of 698-3800MHz. This is not your standard coupler; it is a versatile RF tool designed to excel in the most demanding environments, from dense urban cellular base stations and critical public safety networks to expansive distributed antenna systems (DAS). Unlike traditional 3dB hybrid coupler designs limited to two ports, this 4×4 architecture offers four input and four output ports, granting engineers superior flexibility for intricate RF architectures and multi-carrier deployments.
n
At its core, the 4×4 hybrid coupler solves a fundamental challenge: how to combine multiple high-power signals with minimal loss and maximum purity. It achieves this through precision engineering, delivering low insertion loss (6±1.2dB) and high isolation (≥25dB) to ensure efficient combining without degrading signal quality. This robust performance spans the entire 698-3800MHz range, making it fully backward-compatible with legacy 2G/3G networks, essential for current 4G/LTE demands, and ready for emerging 5G applications. The voltage standing wave ratio (VSWR) is optimized to maintain impedance stability across all ports, a critical factor for system reliability.
n
Key Features of the 4×4 Hybrid Coupler
n
Unrivaled Power Handling and Low Distortion
n
One standout characteristic of this RF coupler is its exceptional power handling capability. Each port supports up to 300W continuous power (500W peak), making it ideal for high-power transmitters and multi-carrier systems. More importantly, the advanced design minimizes intermodulation distortion to ≤-155dBc (with two +43dBm signals), a vital feature for reducing interference in dense, high-traffic environments. This combination of power and purity ensures that the 4×4 hybrid coupler delivers clean, reliable signal combining even under extreme operational loads.
n
Compact, Rugged, and Deployable Anywhere
n
Despite its formidable capabilities, the 4×4 hybrid coupler is designed for practical installation. With compact dimensions of 194x138x49mm and a lightweight build of just 2300g, it strikes an ideal balance between performance and space efficiency. Whether mounted indoors in a server room or outdoors on a cell tower, its durability is backed by an IP65-rated enclosure, providing robust protection against dust and moisture. The unit operates reliably across a wide temperature range of -25°C to +70°C, ensuring consistent performance in even harsh climates.
n
Versatile Connectivity for Global Systems
n
To ensure seamless integration with diverse RF ecosystems, the coupler offers multiple connector options—including 4.3-10 female, N female, and 7-16 female. This flexibility, combined with its broad frequency coverage, makes it compatible with global frequency allocations. Whether deployed in macro-cell sites, small cell networks, or specialized communication systems, this 4×4 coupler delivers unmatched adaptability.
n
4×4 Hybrid Coupler Specifications
n
All technical parameters are clearly presented in the table below.
n
| Parameter | Value |
|---|---|
| Model NO. | MOP-HC-738-300-4:4MF(NF/DF) |
| Name | 4×4 Hybrid Combiner |
| Frequency Range | 698-3800MHz / 698-4000MHz |
| Insertion Loss | 6 ± 1.2 dB |
| Isolation | ≥ 25 dB |
| Return Loss | ≥ 18 dB |
| VSWR | Optimized (implicitly from return loss) |
| Intermodulation Products | ≤ -155 dBc (with 2 x 43dBm signals) |
| Maximum Input Power | 300W (continuous) / 500W (peak) per port |
| Operating Temperature | -25°C to +70°C |
| Relative Humidity | 0% – 95% |
| Impedance | 50 Ω |
| Dimensions (HxWxD) | 194 x 138 x 49 mm |
| Weight | 2300 g |
| Connector Type | 4.3-10 Female / N Female / 7-16 Female |
| Ingress Protection | IP65 |
| Color | Black |
n
Conclusion: The 4×4 Hybrid Coupler as a Foundation for Future Networks
n
In summary, the 4×4 hybrid coupler is not merely a component; it is a sophisticated solution for the challenges of modern wireless infrastructure. Its ability to combine multiple high-power signals across the 698-3800MHz range—with low loss, high isolation, minimal distortion, and rugged construction—makes it indispensable for operators seeking to optimize RF network performance and reliability. As a powerful alternative to conventional 3dB hybrid coupler designs for complex setups, this RF coupler bridges the gap between traditional combining techniques and the demanding requirements of next-generation wireless. It ensures scalable, efficient signal management that will support network evolution for years to come, whether powering a macro site or a small cell cluster. When performance and versatility are non-negotiable, the 4×4 hybrid coupler delivers.
