Revolutionizing RF Connectivity: The Power of Precision Adapters
nnIn the world of radio frequency (RF) connections, precision and reliability are not just desirable—they are essential for optimal system performance. The Mini Din Male Right Angle to Mini Din Female Connector Adapter emerges as a game-changing solution, offering engineers and technicians a robust way to manage tight spaces without sacrificing signal integrity. This adapter seamlessly converts a Mini Din male right-angle interface into a standard Mini Din female connection, providing flexibility where traditional straight connectors fall short.nn

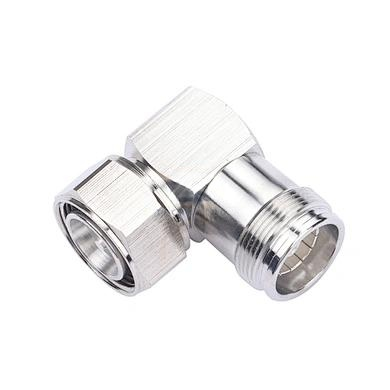

Mini Din Male Right Angle to Mini Din Female Connector Adapter: Built for Performance
nnThis innovative adapter is engineered with premium materials to ensure durability and superior electrical performance. Every component is selected to withstand harsh environments while maintaining consistent signal quality. The center and outer contacts are crafted from tin-bronze with a silver plating, which significantly enhances conductivity and resists corrosion over time. The body itself is made from brass, also silver-plated, offering a sturdy and reliable housing that can endure repeated use without degradation. For electrical insulation, the dielectric is constructed from polytetrafluoroethylene (PTFE), a material renowned for its exceptional insulating properties and stability across a wide temperature range. The nut, made from brass with a nickel plating, provides a secure and lasting connection that resists loosening even under vibration.nn
Technical Specifications at a Glance
nnTo ensure you have all the critical data for integration, here is a comprehensive breakdown of the adapter’s specifications:nn
| Parameter | Value/Description |
|---|---|
| Model | MOP-AD-MM/MFR |
| Product Description | Mini Din Male Right Angle to Mini Din Female Connector Adapter |
| Configuration | 4310M-4310FRA (Straight male to straight female RA) |
| Center Contact Material | Tin-bronze / Silver Plated |
| Outer Contact Material | Tin-bronze / Silver Plated |
| Body Material | Brass / Silver Plated |
| Dielectric Material | PTFE |
| Gasket Material | Silicon Rubber |
| Nut Material | Brass / Nickel Plated |
| Characteristic Impedance | 50 Ohm |
| Frequency Range | DC to 6 GHz |
| Insulation Resistance | ≥ 10000 MΩ |
| Contact Resistance (4.3-10 Type) | Center: 5 MΩ / Outer: ≤ 1.0 MΩ |
| Contact Resistance (Mini Din Type) | Center: ≤ 0.4 MΩ / Outer: ≤ 0.2 MΩ |
| Dielectric Strength | 2500 V rms |
| Working Voltage | 1400 V rms |
| Insertion Loss | ≤ 0.10 dB @ DC–3 GHz |
| VSWR | ≤ 1.10 @ DC–3.0 GHz |
| PIM (2 × 43 dBm) | ≤ -160 dBc |
| Durability (Matings) | ≥ 500 cycles |
| Thermal Shock Test | MIL-STD-202F, Method 107G, Condition B |
| Vibration Test | MIL-STD-202, Meth. 204, Cond. B |
| Temperature Range | -65°C to +165°C |
| RoHS Compliant | Yes |
nn
Electrical and Environmental Durability
nnThe electrical performance of the Mini Din Male Right Angle to Mini Din Female Connector Adapter is meticulously engineered to minimize signal loss and interference. With a characteristic impedance of 50 ohms, it perfectly matches standard RF systems, ensuring efficient power transfer. Its frequency range extends from DC to 6 GHz, covering a broad spectrum of applications from legacy to modern broadband networks. The insulation resistance exceeds 10,000 MΩ, while contact resistance is kept exceptionally low—under 0.4 MΩ for the Mini Din type center contact—guaranteeing stable and low-loss transmission. Insertion loss remains below 0.10 dB up to 3 GHz, and the Voltage Standing Wave Ratio (VSWR) is maintained at ≤ 1.10 in the same band, reducing reflections. Additionally, Passive Intermodulation (PIM) performance is exceptional, rated at ≤ -160 dBc, which is critical for high-quality cellular and data networks.nnEnvironmental resilience is another hallmark. This adapter has been rigorously tested to MIL-STD standards for thermal shock and vibration, confirming its ability to function reliably in extreme conditions. It can endure over 500 mating cycles and operate across a temperature range from -65°C to +165°C, making it suitable for both indoor and outdoor installations. Compliance with RoHS standards further ensures that it meets global environmental and safety requirements.nn
Conclusion: Your Go-To Solution for Reliable RF Connections
nnWhether you are deploying communication base stations, optimizing wireless networks, or connecting sensitive scientific research equipment, the Mini Din Male Right Angle to Mini Din Female Connector Adapter delivers the precision and robustness required for demanding RF environments. Its superior material construction, meticulous electrical specifications, and proven environmental durability make it an indispensable tool for any professional seeking to maintain signal integrity in tight spaces. By choosing this adapter, you invest in a connection that ensures stable, low-loss performance, and long-term reliability—truly a perfect partner for your RF connectivity needs.
