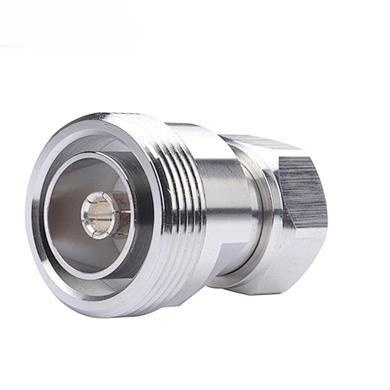

Precision and Performance: The Mini Din Male Interface to MINI DIN Female Interface RF Adapter
nnIn the demanding world of RF connections, achieving precision, stability, and efficiency is not just a goal—it is a necessity. The Mini Din Male Interface to MINI DIN Female Interface RF Adapter has emerged as a standout solution, offering exceptional performance and reliable quality for a wide range of RF devices. Whether you are building communication infrastructure or fine-tuning wireless networks, this adapter delivers the robust connectivity you need for seamless signal transmission.nn
Superior Materials and Design
nnThe core of the Mini Din Male Interface to MINI DIN Female Interface RF Adapter lies in its thoughtful engineering and premium materials. The center contact is crafted from tin bronze and plated with silver, providing outstanding electrical conductivity and corrosion resistance. This ensures that signal transmission remains stable and efficient, even in challenging environments. The main body and outer conductor are constructed from brass and treated with a three-metal plating process, offering exceptional durability and protection against external elements like moisture and temperature fluctuations. Meanwhile, the insulating medium uses polytetrafluoroethylene (PTFE), which minimizes signal leakage and interference due to its superior insulating properties. A silicone rubber gasket enhances sealing, further boosting the connection’s stability and reliability.nn
Critical Specifications in a Structured Format
nnThe technical parameters of this adapter are vital for ensuring compatibility and performance. Below is a comprehensive breakdown of its specifications.nn
| Parameter | Value |
|---|---|
| Characteristic Impedance | 50 Ohm |
| Frequency Range | DC ~ 11 GHz |
| Insulation Resistance | ≥5000 MΩ |
| Contact Resistance (Center Contact, 4.3-10 Male) | ≤1.5 mΩ |
| Contact Resistance (Center Contact, DIN Female) | ≤0.4 mΩ |
| Contact Resistance (Outer Contact, 4.3-10 Male) | ≤1.0 mΩ |
| Contact Resistance (Outer Contact, DIN Female) | ≤0.2 mΩ |
| Dielectric Strength | 2500 V rms |
| Working Voltage | 1000 V rms |
| Insertion Loss @ 3 GHz | ≤0.10 dB |
| VSWR (Voltage Standing Wave Ratio) | ≤1.10 @ DC ~ 3.0 GHz |
| Durability (Matings) | ≥500 cycles |
| Mechanical Shock Test | MIL-STD-202F, Method 107G, Test Condition B |
| Vibration Test | MIL-STD-202, Meth. 204, Cond. B |
| Temperature Range | -65 °C to +165 °C |
| RoHS Compliant | Yes |
nn
Exceptional Electrical and Durability Features
nnThe Mini Din Male Interface to MINI DIN Female Interface RF Adapter excels in electrical performance. Its 50-ohm characteristic impedance ensures a perfect match with most RF systems, reducing signal reflection and enhancing efficiency. With a frequency range covering DC to 11 GHz, it supports diverse applications across multiple frequency bands. The extremely low contact resistance values—center contact resistances as low as 0.4 mΩ for the DIN female head—minimize signal loss, while the insertion loss of ≤0.10 dB at 3 GHz and VSWR of ≤1.10 in the DC–3.0 GHz range guarantee clean, interference-free transmission.nnDurability is another key strength. This adapter withstands over 500 mating cycles, making it suitable for frequent use in dynamic environments. It has passed rigorous mechanical shock and vibration tests per MIL-STD-202 standards, ensuring reliability under stress. Operating across a temperature range of -65 °C to +165 °C, it adapts to extreme conditions. Additionally, its RoHS compliance highlights a commitment to environmental safety.nn
Reliable Connections for Critical Applications
nnIn practice, the Mini Din Male Interface to MINI DIN Female Interface RF Adapter proves invaluable for communication base stations, wireless network optimization, and scientific testing equipment. Its robust construction and stable performance safeguard signal integrity, reducing downtime and maintenance. Whether you are deploying new systems or upgrading existing ones, this adapter stands as a reliable partner in the RF connection field. By combining precision engineering with exceptional materials, it ensures that your RF systems operate at peak efficiency, making it a smart investment for professionals who demand the best.
