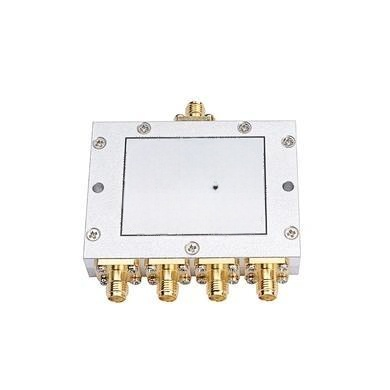

Introducing the Ultimate Splitter Type Power Divider for Reliable RF Signal Distribution
n
In the world of radio frequency (RF) engineering, precision and reliability are paramount. Whether you are building a communication network, testing equipment, or deploying a distributed antenna system, the quality of your signal splitting components directly impacts overall system performance. Enter the high-performance splitter type power divider—a compact yet powerful solution designed to handle the demanding 2000-6000MHz frequency band with exceptional stability. This power splitter 4way device is engineered to ensure that every signal path maintains consistent integrity, making it an indispensable tool for professionals seeking low-loss, high-isolation, and reliable signal distribution. In this article, we will explore the standout features, technical specifications, and practical applications of this robust power divider, demonstrating why it is a trusted choice for modern RF links.
nn
Why Choose This Power Splitter 4way for Your RF Projects?
n
When selecting a power splitter 4way, engineers look for a balance of performance, durability, and ease of integration. This device excels in all three areas. Its microstrip design ensures minimal signal degradation, while the standard SMA-Female RF connectors guarantee compatibility with a wide range of coaxial cables and components. The 50Ω characteristic impedance aligns with industry standards, eliminating impedance mismatch issues that can cause reflections and power loss. With a maximum average input power of 50W and a peak power handling capability of 500W, this splitter type power divider is well-suited for both moderate and high-power RF links. Designed for indoor deployment, it operates reliably across a broad temperature range of -35℃ to +70℃, making it versatile enough for most common environments, from labs to industrial facilities.
nn
Key Performance Metrics of the Splitter Type Power Divider
n
The true value of any power splitter lies in its measured performance. This device delivers insertion loss of ≤0.7dB, ensuring that signal strength is preserved across all four output ports. Isolation of ≥20dB prevents crosstalk between channels, which is critical for maintaining signal clarity in multi-path systems. A VSWR (Voltage Standing Wave Ratio) of ≤1.35 indicates excellent impedance matching, reducing signal reflections and improving overall efficiency. These specifications make this power splitter 4way a standout choice for applications where signal fidelity is non-negotiable.
nn
Comprehensive Technical Specifications
n
Below, you will find a detailed table of all technical parameters for this splitter type power divider. This data ensures you have the exact information needed for system design and integration.
n
| Parameter | Value |
|---|---|
| Model Number | MOP-MPS-2/8G-04SMA |
| Frequency Range | 2000–6000 MHz |
| Split Loss | 6.0 dB |
| Insertion Loss | ≤ 0.7 dB |
| VSWR | ≤ 1.35 |
| Isolation | ≥ 20 dB |
| Impedance | 50 Ω |
| Max Average Input Power | 50 W |
| Max Peak Power | 500 W |
| Application Environment | Indoor |
| RF Connector Type | SMA-Female |
| Dimensions (L × W × H) | 61 × 45 × 14 mm |
| Net Weight | 0.2 kg |
| Operating Temperature Range | -35°C to +70°C |
n
These specifications highlight the device’s ability to deliver consistent, high-quality performance across a wide range of conditions, making it a reliable component for any RF distribution system.
nn
Applications and Integration Advantages
n
This power splitter 4way is not just about raw numbers; its compact form factor (61×45×14mm) and light weight (0.2kg) simplify installation in crowded racks or enclosures. The SMA-Female connectors are universally compatible, allowing for quick hookups with standard test cables or permanent installations. Whether used for splitting signals in cellular base stations, Wi-Fi networks, or test benches, the splitter type power divider ensures that each output port receives a clean, balanced signal. Its robust construction and thermal stability also make it suitable for long-term deployments where maintenance access is limited.
nn
Ensuring System Reliability with the Splitter Type Power Divider
n
When your RF link depends on consistent signal distribution, this power splitter 4way stands as a dependable backbone component. The low insertion loss minimizes power waste, while the high isolation prevents interference between channels. Together, these attributes contribute to a system that operates with greater efficiency and less noise. For engineers, this translates to reduced debugging time and improved overall performance, whether in laboratory tests or live network environments.
nn
Conclusion: A Trusted Solution for RF Signal Distribution
n
In summary, the splitter type power divider presented here offers an ideal combination of performance, durability, and convenience. Its carefully designed microstrip architecture, coupled with stringent specifications—including ≤0.7dB insertion loss, ≥20dB isolation, and ≤1.35 VSWR—makes it a top-tier choice for splitting signals across the 2000-6000MHz range. With the ability to handle up to 50W average and 500W peak power, it is built to meet the demands of professional RF links. From its SMA-Female connectors to its compact, lightweight design, every aspect of this power splitter 4way is optimized for easy integration and reliable operation. Whether you are a seasoned RF engineer or a hobbyist building a custom system, this device provides the consistent, high-quality signal distribution you need. Embrace the confidence that comes with a well-engineered component and enhance your next project with this proven splitter type power divider.
