Elevating Security with Advanced Signal Jamming Technology
n
In an era where communication security and operational privacy are paramount, the need for robust signal management solutions has never been greater. The 5G Mobile Phone / WiFi Jammer represents a pinnacle of innovation in controlled environment protection, designed specifically for high-stakes locations such as prisons, oil refineries, and protected areas. This powerful device not only disrupts unauthorized communications but also offers unparalleled flexibility with adjustable output power across multiple frequency bands. The focus keyword, 5G Mobile Phone / WiFi Jammer, is central to understanding how modern security infrastructure can effectively neutralize threats from advanced wireless technologies.
nn
Understanding the Core Capabilities of the 5G Mobile Phone / WiFi Jammer
n
This jammer is engineered to address the challenges posed by the latest 5G networks alongside legacy systems. Its ability to block a wide spectrum ensures comprehensive coverage, making it indispensable for sensitive environments. The device operates across eight distinct bands, each with adjustable power levels from 0 to 10 watts per band, allowing operators to tailor the jamming intensity to specific needs. This granular control is critical for balancing security requirements with minimal interference to authorized systems.
nn
Key Specifications and Flexible Band Configuration
n
The following table details the modular design of the 5G Mobile Phone / WiFi Jammer, illustrating its adaptability for various regional standards. Each module operates independently, ensuring that specific frequencies can be prioritized or deactivated as needed.
nn
| Band/Module | Frequency Range | Output Power | Applicable Technologies |
|---|---|---|---|
| Module 1 | 617-652 MHz | 10W | 5G (Low Band) |
| Module 2 | 700-800 MHz | 10W | 4G LTE (AT&T, Verizon) |
| Module 3 | 758-830 MHz | 10W | 5G, 4G LTE Low |
| Module 4 | 850-895 MHz | 10W | CDMA 850 |
| Module 5 | 920-965 MHz | 10W | GSM 900 |
| Module 6 | 1450-1500 MHz | 10W | 5G (Mid Band) |
| Module 7 | 1700-1800 MHz | 10W | 4G LTE |
| Module 8 | 1800-2000 MHz | 10W | DCS, PCS |
| Module 9 | 2100-2170 MHz | 10W | 3G, UMTS |
| Module 10 | 2300-2500 MHz | 8W | 4G LTE, WiFi 11.b/g |
| Module 11 | 2400-2500 MHz | 8W | WiFi 11.b/g |
| Module 12 | 2500-2700 MHz | 8W | 4G WiMAX, 4G LTE High |
| Module 13 | 3400-3800 MHz | 4W | 5G (High Band) |
| Module 14 | 5.1-5.9 GHz | 4W | 5GHz WiFi 11.a |
nn
Note: All frequencies can be mixed for customized configurations. Optional modules include remote/alarm control at 315MHz, 433MHz, or 868MHz, as well as GPS L2-L5, LoJack 173MHz, and satellite phone frequencies (1520-1670MHz).
nn
Operational Excellence and Physical Design
n

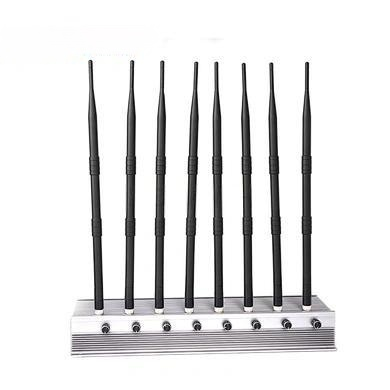

The 5G Mobile Phone / WiFi Jammer is built for continuous, long-term duty cycles, with no time limit on operation. Its robust construction includes a durable metal casing measuring 410 x 145 x 65 mm and weighing 5.0 kg, making it suitable for both stationary and mobile deployment. The unit comes with omnidirectional antennas (380 mm long) and supports a jamming range radius of 20 to 60 meters (under -75 dBm signal conditions). Power can be supplied via AC100-240V or a 12V car charger (with a 300 mm long cable), ensuring flexibility in various environments.
nn
Advanced Features for Customized Control
n
Each band or channel features an independent LED indicator and adjustable output power, allowing operators to fine-tune performance from maximum down to zero (OFF). This level of control is essential for minimizing collateral interference while maintaining effective security. An optional remote alarm system adds another layer of convenience, enabling activation or deactivation from a distance.
nn
Shipping and Warranty Information
n
For procurement and logistics, the 5G Mobile Phone / WiFi Jammer ships from Shenzhen with a lead time of 1-3 days. The unit is packaged with care, ensuring safe transit.
nn
| Parameter | Value |
|---|---|
| FOB Port | Shenzhen |
| Weight per Unit | 4.0 kg |
| Export Carton Weight | 4.5 kg |
| Export Carton Dimensions (L/W/H) | 38 x 16 x 8 cm |
| Dimensions per Unit (L/W/H) | 36.0 x 14.0 x 5.1 cm |
| Units per Export Carton | 1.0 |
| HTS Code | 8543.70.00 |
| Warranty | 1 Year |
nn
Conclusion: The Ultimate Security Solution
n
In summary, the 5G Mobile Phone / WiFi Jammer stands as a versatile and powerful tool for safeguarding critical infrastructure. Its comprehensive band coverage, adjustable power, and modular design make it an ideal choice for prisons, oil refineries, and protected areas where communication security is non-negotiable. By integrating this advanced jammer into your security protocol, you gain reliable control over wireless threats, ensuring that sensitive operations remain undisturbed. Whether confronting 5G, 4G, or WiFi signals, this device delivers the performance and flexibility demanded by modern security professionals.
