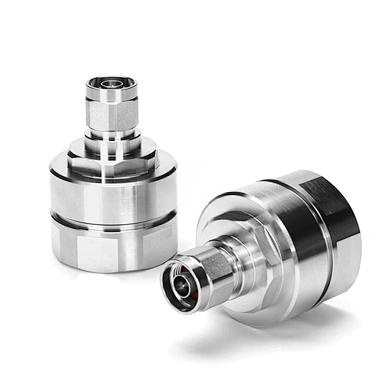

N Male Connector for 1-1/4 Feeder Cable: A Comprehensive Guide
nn
When dealing with high-performance RF systems, every component in the signal chain matters. The N male connector for 1-1/4 feeder cable stands out as a critical interface, designed to deliver reliable, low-loss connections in demanding environments. Whether you are deploying cellular infrastructure, broadcast systems, or industrial wireless networks, understanding the construction and specifications of this connector is essential for ensuring optimal signal integrity and long-term durability. In this article, we will explore the materials, electrical characteristics, and application benefits of this rugged connector, helping you make informed decisions for your next installation.
nn
Material and Plating Construction
nn
The reliability of any RF connector begins with its material selection and plating. This N male connector for 1-1/4 feeder cable uses high-quality metals and precision plating to resist corrosion, maintain conductivity, and withstand repeated matings. Below is a detailed breakdown of the construction components:
nn
Component Materials and Finishes
nn
| Component | Base Material | Plating/Finish |
|---|---|---|
| Center Contact | Tin-bronze | Silver Plated |
| Outer Contact | Tin-bronze | Silver Plated |
| Body | Brass | Silver Plated |
| Dielectric | PTFE | N/A |
| Gasket | Silicon Rubber | N/A |
| Nut | Brass | Nickel Plated |
nn
The use of silver plating on the contacts and body ensures excellent electrical conductivity and minimizes signal loss. PTFE dielectric provides stable impedance over a wide frequency range, while the silicon rubber gasket offers effective environmental sealing. The nickel-plated nut adds mechanical strength and resistance to wear during tightening.
nn
Electrical and Mechanical Specifications
nn
Beyond materials, the N male connector for 1-1/4 feeder cable delivers consistent performance across key electrical parameters. The following table outlines the critical electrical characteristics that define its suitability for high-frequency applications:
nn
Electrical Characteristics
nn
| Parameter | Specification |
|---|---|
| Impedance | 50 Ohm |
| Frequency Range | DC-3 GHz |
| Insulation Resistance | ≥ 10000 MΩ |
| Contact Resistance (Center Contact) | ≤ 5 MΩ |
| Contact Resistance (Outer Contact) | ≤ 1.0 MΩ |
| Dielectric Strength | 2500 V rms |
| Working Voltage | 1400 V rms |
| Insertion Loss | ≤ 0.10 dB @ DC-3 GHz |
| VSWR (Voltage Standing Wave Ratio) | ≤ 1.20 @ DC-3.0 GHz |
| PIM (2×43 dBm) | ≤ -160 dBc |
nn
These specifications highlight the connector’s ability to maintain low insertion loss and excellent impedance matching up to 3 GHz. The high insulation resistance and dielectric strength ensure safe operation even under elevated voltage conditions. The low Passive Intermodulation (PIM) rating makes this connector particularly suitable for sensitive multi-carrier environments such as DAS and small cell networks.
nn
Mechanical and Environmental Durability
nn
| Parameter | Specification |
|---|---|
| Durability (Matings) | ≥ 500 cycles |
| Temperature Range | -40 to +85 °C |
| RoHS Compliance | Yes |
nn
The N male connector for 1-1/4 feeder cable is built for longevity, withstanding at least 500 mating cycles without degradation. Its wide temperature range allows deployment in outdoor cabinets, towers, and other harsh settings. RoHS compliance ensures environmental responsibility without sacrificing performance.
nn
Why Choose This N Male Connector for 1-1/4 Feeder Cable?
nn
Selecting the right connector is about balancing performance with reliability. This N male connector for 1-1/4 feeder cable excels in several areas that matter most to RF professionals. Its silver-plated contacts reduce signal loss and maintain consistent impedance, while the robust brass body resists mechanical stress. The low VSWR and insertion loss figures translate to better system efficiency, especially in long cable runs where every decibel counts.
nn
Additionally, the low PIM rating of ≤ -160 dBc makes this connector ideal for modern wireless networks where interference must be minimized. Whether you are upgrading an existing installation or building a new site, this connector offers the precision and durability needed for mission-critical communications.
nn
Conclusion
nn
In summary, the N male connector for 1-1/4 feeder cable provides a superior combination of material quality, electrical performance, and mechanical robustness. From its silver-plated contacts to its rigorous testing for durability and environmental resistance, every detail is engineered to maintain signal integrity and long-term reliability. When your application demands a low-loss, high-frequency connection that can withstand the elements and repeated use, this connector stands as a trusted choice. Invest in the right interface for your feeder cable system, and you will ensure consistent performance for years to come.
