Precision N Type Connector: Uncompromising Performance for Critical RF Systems
n

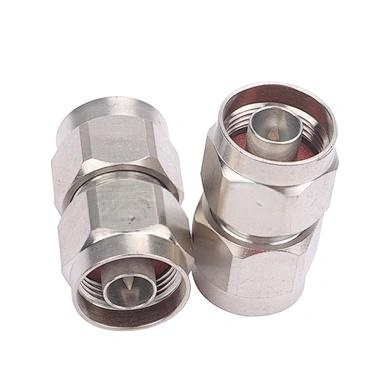

In the demanding world of radio frequency engineering, the integrity of every signal path is paramount. This high-performance RF connector from MOP is engineered to establish a flawless link between N male connectors, ensuring that critical data and power are transmitted with exceptional fidelity. Designed for professionals who cannot tolerate signal degradation, this adapter is more than a simple connection point; it is a precision instrument for demanding RF systems. Combining military-grade construction with advanced electrical design, it provides the reliability and consistency needed for applications ranging from base station infrastructure to satellite communications.
n
The heart of its performance lies in the N type connector design, which provides excellent impedance matching at 50Ω. This precise matching, combined with ultra-low Voltage Standing Wave Ratio (VSWR), minimizes signal reflections and power loss. Whether you’re troubleshooting a spectrum analyzer or optimizing a microwave radio link, this N type connector adapter ensures that the signal you measure is the signal that exists at the connection point. Its robust threaded coupling mechanism secures N male connectors tightly, preventing vibration-induced disconnection or signal leakage in high-vibration environments found on towers, vehicles, or industrial equipment. Trusted by RF engineers, this component blends aerospace precision with the ruggedness required for mission-critical RF connector applications.
nn
Technical Specifications for N Type Connector Adapters
n
Every parameter of this N type connector adapter is carefully defined to meet rigorous industry standards. The following table details the critical electrical, mechanical, and environmental specifications that ensure reliable and repeatable performance.
n
| Parameter | Specification / Value |
|---|---|
| Frequency Range | DC – 11 GHz |
| Impedance | 50 Ω |
| VSWR (Straight) | 0 – 3 GHz: ≤ 1.15 > 3 – 11 GHz: ≤ 1.3 |
| VSWR (Bend) | 0 – 3 GHz: ≤ 1.2 > 3 – 11 GHz: ≤ 1.35 |
| Contact Resistance (Inner Conductor) | ≤ 10 mΩ |
| Contact Resistance (Outer Conductor) | ≤ 2.5 mΩ |
| Insulation Resistance | ≥ 5000 MΩ |
| Withstand Voltage (Sea Level) | 2500 V RMS |
| Withstand Voltage (5.4 kPa) | 400 V RMS |
| Inner Conductor Withdrawal Force | ≥ 0.56 N |
| Mechanical Endurance | 500 mating cycles |
| Operating Temperature | -55°C to +155°C |
nn
Built to Endure: Mechanical and Environmental Resilience
n
The N type connector adapter is constructed from military-grade brass with gold-plated contacts, ensuring both superior conductivity and exceptional corrosion resistance. The gold plating on the contacts guarantees reliable, low-noise connections over thousands of mating cycles. Combined with a robust outer conductor finish, the connector is designed for long-term outdoor deployment, resisting moisture, salt spray, and temperature extremes. With an operating range from -55°C to +155°C, it performs consistently in everything from arctic conditions to engine compartments.
n
The 360° continuous shielding provided by the connector’s design is critical for preventing electromagnetic interference (EMI) and radio frequency interference (RFI). This ensures that external noise sources do not corrupt the transmitted signal, and that the connector itself does not radiate unwanted energy. This shielding performance is essential for maintaining signal integrity in sensitive applications like spectrum analysis and satellite communication gear.
nn
Applications of the N Male Connector Interface
n
The versatility of this RF connector makes it a cornerstone component in a wide array of professional systems. Its robust design and precise electrical characteristics are trusted by engineers across multiple sectors:
n
- n
- Base Station Antenna Links: Reliable connections for cellular, Wi-Fi, and public safety networks.
- Microwave Radio Systems: Low VSWR ensures efficient power transfer for point-to-point and point-to-multipoint links.
- Spectrum Analyzers & Test Equipment: Accurate measurements depend on consistent, low-loss connections at the instrument interface.
- Satellite Communication Gear: Durability and shielding are critical for ground station and in-orbit hardware.
n
n
n
n
n
In every application, the N type connector adapter provides the secure, high-performance link between N male connectors that engineers rely on for mission-critical RF connector applications.
nn
Conclusion: The Professional Choice for N Type Connector Reliability
n
When performance cannot be compromised, this RF connector adapter stands as the clear choice. It delivers the precision, durability, and electrical excellence required for the most demanding environments. From the threaded coupling that prevents accidental disconnection to the gold-plated contacts that ensure thousands of reliable matings, every design element is optimized for the professional. By choosing this N type connector adapter, you are investing in the long-term integrity of your signal path, ensuring that your N male connectors are linked with a component that meets the highest standards of military and aerospace engineering.
