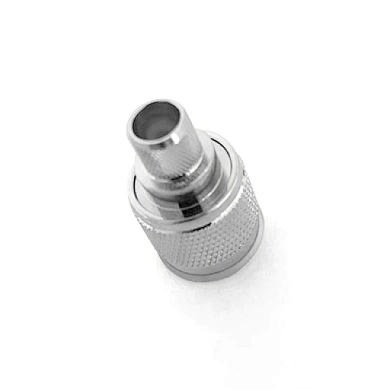

Reliable Partner for RF Connection: N Type Male Connectors for RG8U Cable
In the ever-evolving landscape of radio frequency (RF) communication, the integrity of your signal path is everything. A weak connection, a mismatched impedance, or a durable design can quickly turn a high-performance system into a source of frustration. Enter the N type male connectors for RG8U cable, a cornerstone component that delivers the reliability and performance engineers and technicians depend on. Designed to bridge the gap between your valuable RF equipment and the cable that carries the signal, these connectors ensure that your data and communications are transmitted with minimal loss and maximum clarity.
The N type male connectors for RG8U cable are purpose-built to work with the popular RG8U coaxial cable. This cable is widely used in amateur radio, Wi-Fi antennas, and commercial communication systems. By leveraging the robust N-type connector design, this component offers superior adaptability, creating a secure and stable link with a wide variety of female ports. The decision to use an N-type connector isn’t just about convenience; it’s about engineering excellence. With a standard characteristic impedance of 50 ohms, it perfectly matches the requirements of most RF devices, including transceivers, antennas, and amplifiers. This precision matching is critical for reducing signal reflection, a common issue that can cause power loss and degrade overall system performance.
Exceptional Performance and Durability of N Type Male Connectors for RG8U Cable
The true measure of a connector’s quality lies in its ability to maintain signal integrity across a wide frequency range. The N type male connectors for RG8U cable are engineered to operate effortlessly from DC to 6 GHz. This broad frequency coverage makes them incredibly versatile, suitable for everything from low-frequency analog signals to high-speed digital data in modern wireless systems.
Low Loss and High Efficiency
One of the most critical specifications for any RF connector is its Voltage Standing Wave Ratio (VSWR). For these connectors, the VSWR is maintained at less than 1.25. This low value is a testament to their precision design, indicating that the energy loss due to signal reflection is exceptionally minimal. What does this mean for you? It translates directly to stronger, cleaner signals, reduced interference, and more efficient operation of your entire RF system. Every watt of power is directed where it should be—through the cable and into your device—rather than bouncing back.
Built to Last in Demanding Environments
Durability is another hallmark of the N type male connectors for RG8U cable. The connector’s structure is robust, utilizing high-quality materials that can withstand the rigors of frequent plugging and unplugging. Whether you’re a field technician constantly making connections or a researcher in a lab setting, you need a connector that won’t fail after a few cycles. These connectors are designed for longevity, reducing the need for replacements and cutting down on long-term maintenance costs. This ensures that your investment provides reliable service for years to come.
| Parameter | Specification |
|---|---|
| Connector Type | N-type Male |
| Cable Compatibility | RG8U |
| Characteristic Impedance | 50 Ohms |
| Operating Frequency Range | DC – 6 GHz |
| Voltage Standing Wave Ratio (VSWR) | < 1.25 |
| Key Feature | Low Reflection, High Durability |
Conclusion: A Solid Foundation for Your RF System
From constructing communication base stations and optimizing wireless networks to building precision scientific research equipment, the N type male connectors for RG8U cable prove to be an indispensable ally. They are more than just a piece of hardware; they are the vital link that ensures your signals travel smoothly and efficiently. Think of them as a solid, unwavering bridge between your RF equipment and cables, allowing your data and communications to flow without interruption. By choosing these connectors, you are investing in a foundational component that helps build a high-performance, stable, and reliable RF communication system. Whether you are a hobbyist or a professional, the N type male connectors for RG8U cable provide the solid protection and performance you need for your most critical RF applications.
