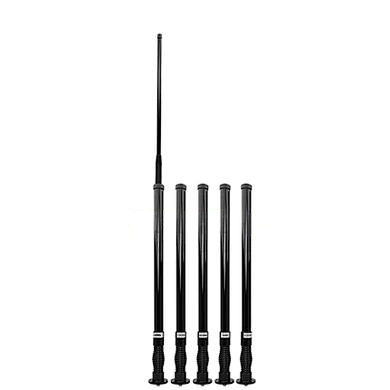

Conquer Signal Interference with a Premium Omni Directional Outdoor Antenna
nn
Are you still losing sleep over unreliable signal transmission and stubborn interference? Whether you’re managing a vehicle-mounted drone operation or tackling critical jamming tasks, your equipment demands a robust solution. Enter our omni directional outdoor antenna, a purpose-built powerhouse designed to eliminate signal issues and deliver unwavering performance. This isn’t just another antenna; it’s your strategic advantage in a noisy RF world. By covering the essential VHF and UHF bands, this antenna ensures that your operations remain under control, no matter the environment. Let’s explore why this is the ultimate choice for professionals who cannot afford compromise.
nn
Industry-Leading Frequency Coverage and Gain
nn
This omni directional outdoor antenna excels across a broad spectrum, making it exceptionally versatile. It covers the VHF band from 20–100 MHz, crucial for long-range communications, and the UHF band from 200–500 MHz and 900/1800/2100 MHz, essential for drone control and jamming frequencies. The gain performance is equally impressive: while the VHF band delivers a -5 dBi gain tailored for wide-area coverage, the UHF band offers a powerful 3–7 dBi boost, ensuring effective signal transmission and interference mitigation. This dual-band mastery sets the uhf vhf antenna outdoor standard for reliability.
nn
Technical Specifications at a Glance
nn
Below are the precise technical parameters that define the capabilities of this omni directional outdoor antenna. All specifications are consolidated in a clear, structured format for quick reference.
nn
| Parameter | VHF Band (20–100 MHz) | UHF Band 1 (200–500 MHz) | UHF Band 2 (900/1800/2100 MHz) |
|---|---|---|---|
| Frequency Range | 20 – 100 MHz | 200 – 500 MHz | 900 / 1800 / 2100 MHz |
| Gain | -5 dBi | 3 – 5 dBi | 5 – 7 dBi |
| Approx. Dimensions | 140 mm (including flange spring base) | 70 × 35 mm (including flange spring base) | 80 cm × 35 mm (including flange spring base) |
| Polarization | Vertical | ||
| Horizontal 3dB Beamwidth | 360° | ||
| Vertical 3dB Beamwidth | 18° | ||
| VSWR | ≤2.2:1 | ≤2.2:1 | ≤1.5:1 |
| Impedance | 50Ω | ||
| Power Handling | 100W | ||
| Input Connector | N Female (Bottom Position) | ||
| Operating Temperature Range | -40°C to +60°C | ||
| Storage Temperature Range | -55°C to +75°C | ||
| Relative Humidity | 5% – 95% | ||
| Maximum Wind Velocity | 200 km/hr | ||
| Radome Material | Fiberglass | ||
| Mounting Kit | Included (Spring Flange Base) | ||
nn
Built to Endure Harsh Environments
nn
The omni directional outdoor antenna is engineered for extreme durability. Its radome is constructed from high-quality antenna fiberglass, providing unmatched resistance to impact, corrosion, and UV degradation. This robust material ensures the antenna operates flawlessly across a wide temperature range, from -40°C to +60°C, and can be stored safely from -55°C to +75°C. Additionally, with a relative humidity tolerance of 5%–95% and the ability to withstand fierce winds up to 200 km/hr, this antenna remains stable in the most demanding conditions—from desert heat to coastal storms.
nn
Simple Installation, Superior Connection
nn
Ease of deployment is a key feature of this omni directional outdoor antenna. It comes equipped with a spring flange base, which simplifies mounting on vehicles or fixed structures while absorbing vibrations and shocks. The N-type female input connector is conveniently positioned at the bottom of the antenna, allowing for a clean, direct connection to your device. The vertical polarization, combined with a 360° horizontal beamwidth and an 18° vertical beamwidth, guarantees comprehensive coverage. An excellent Voltage Standing Wave Ratio (VSWR)—≤2.2:1 for VHF and ≤1.5:1 for the upper UHF band—minimizes signal reflection, maximizing power transfer and transmission efficiency.
nn
Your Ideal Solution for Vehicle and Drone Jamming Operations
nn
When reliability is non-negotiable, this omni directional outdoor antenna stands out as the premier choice. Whether you are deploying it for vehicle-mounted mobile units or drone jamming missions, it delivers consistent, all-round stable signal transmission. The combination of wide frequency coverage, robust gain, and rugged construction ensures you can easily control your signal and neutralize interference effectively.
nn
In conclusion, if you are searching for a vhf and uhf antenna outdoor that offers exceptional performance without compromise, look no further. This omni directional outdoor antenna is not just a component—it is a complete solution. From its precise engineering to its weather-resistant build, every detail is optimized for professional use. Stop worrying about signal interference and take command of your operations with confidence. This antenna is your key to seamless, interference-free communication and control.
