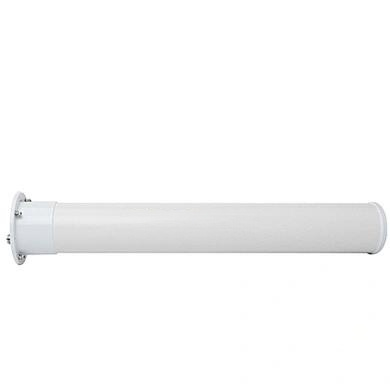

Introducing the Ultimate High Gain Helical Antenna for Reliable Outdoor Connectivity
n
When it comes to establishing robust and stable wireless communication in demanding outdoor environments, the choice of antenna is critical. This high-performance high gain helical antenna series stands out as a professional directional GPS antenna, expertly engineered to deliver exceptional signal strength and unwavering reliability. It precisely covers the 5725-5850MHz frequency band, offering a consistent 14dBi high gain that ensures efficient signal transmission and superior anti-interference performance. As a core solution for outdoor connectivity, this antenna is designed to withstand the elements while providing the long-range, stable links essential for campus networks, industrial applications, and security systems. Whether you are extending Wi-Fi coverage or establishing a point-to-point link, this high gain helical antenna is the ideal choice for professionals who demand the best.
nn
Optimal Performance Through Precision Engineering with a High Gain Antenna Outdoor
n
This antenna is more than just a component; it is a complete, high-performance solution. Its vertical polarization and low VSWR (≤1.5) ensure maximum power transfer and minimal signal loss, which are critical for maintaining data integrity over long distances. The standard 50Ω impedance guarantees seamless compatibility with a wide array of wireless devices, from routers and access points to specialized industrial transceivers. Furthermore, the DC grounding for lightning protection provides essential safety and reliability for prolonged outdoor operation, giving you peace of mind during severe weather. The combination of these advanced electrical characteristics makes this high gain antenna outdoor solution the definitive choice for mission-critical applications.
nn
Built to Withstand Harsh Conditions
n
The physical construction of this antenna is just as impressive as its electrical performance. The aluminum reflector and ABS radome are meticulously chosen for their durability and weather resistance. This robust design allows the antenna to endure extreme temperatures ranging from -40℃ to +90℃, as well as wind speeds of up to 36.9m/s (approximately 133 km/h). This resilience ensures that your wireless network remains operational even in the most challenging outdoor environments, from scorching deserts to freezing tundras. The combination of high-grade materials and thoughtful design guarantees a long service life, making it a wise investment for any infrastructure project.
nn
Detailed Specifications and Mounting Information
nn
| Parameter | Specification |
|---|---|
| Model NO. | MOP-DHA-5.8G–14-NF |
| Frequency Range | 5725 – 5850 MHz |
| Gain | 14 dBi |
| Polarization | Vertical |
| VSWR | ≤ 1.5 |
| Maximum Input Power | 50 W |
| Impedance | 50 Ω |
| Lightning Protection | DC Ground |
| Connector Type | N Female |
| Standard Cable | RG58/U, 300 mm length |
| Rated Wind Velocity | 36.9 m/s |
| Reflector Material | Aluminum |
| Radome Material | ABS |
| Pole Dimension | Φ50 mm |
| Operation Temperature | -40℃ to +90℃ |
| Mounting Hardware (Pole diameter) | φ35 to φ50 mm |
nn
Simple Installation and Versatile Application
n
Equipping this high gain helical antenna for your network is straightforward, thanks to its N female connector and a pre-attached 300mm RG58 standard cable. The design allows for easy mounting onto poles ranging from 35mm to 50mm in diameter, ensuring a secure fit for a wide variety of masts and structures. This ease of installation makes it a practical choice for system integrators and installers who need to set up reliable links quickly and efficiently. Whether you are creating a backbone for a sprawling campus, connecting remote industrial equipment, or securing a high-definition video surveillance system, this antenna provides the performance and durability you need.
nn
Conclusion: The Definitive High Gain Helical Antenna for Your Network
n
In summary, this high gain helical antenna series represents the pinnacle of outdoor wireless engineering. Its precise coverage of the 5.8 GHz band, combined with a robust 14dBi gain and resilient construction, makes it the perfect solution for demanding environments. The integration of lightning protection, extreme temperature tolerance, and high wind resistance ensures uninterrupted service, while the simple mounting process gets your system operational with minimal effort. For professionals who require a reliable, long-range, and interference-free wireless link, this high gain antenna outdoor device is the definitive choice. Invest in this antenna to elevate your network’s performance and ensure a stable connection, no matter the conditions.
