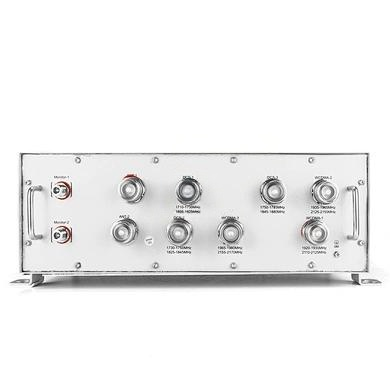

Mastering Signal Management with the POI 6 In 2 Out 1710-2170MHz with DIN Connector
In the dynamic world of telecommunications, the ability to seamlessly integrate and manage signals across various frequency bands is not just a luxury—it is a necessity. The POI 6 In 2 Out 1710-2170MHz with DIN Connector stands out as a pivotal solution for professionals seeking reliable, high-performance signal merging. This device, a Point of Interface (POI) system, expertly combines multiple communication signals into a single, streamlined transmission path, thereby optimizing network infrastructure and enhancing overall system efficiency. By consolidating signals from different standards and operators, this tool reduces equipment clutter and simplifies complex cabling, making it an indispensable asset for modern communication networks.
Whether you are deploying an indoor coverage system for a bustling shopping mall or ensuring robust connectivity in a corporate high-rise, the POI 6 In 2 Out 1710-2170MHz with DIN Connector delivers the precision and durability required for mission-critical applications. Its thoughtful design and rugged construction ensure long-term reliability, even in demanding environments. Below, we explore its technical prowess, structural benefits, and practical applications to demonstrate why this device is a cornerstone of efficient signal integration.
Core Technical Specifications of the POI 6 In 2 Out 1710-2170MHz
Understanding the detailed specifications is key to appreciating the performance capabilities of this POI system. Every parameter is engineered to minimize signal loss, reduce interference, and maintain high fidelity across all integrated paths. The following table presents the comprehensive electrical and mechanical data for the POI 6 In 2 Out 1710-2170MHz with DIN Connector.
| Specification Category | Parameter | Value / Details |
|---|---|---|
| Electrical Specifications | Input Port Information (MHz) | DCS1800: Port 1: 1710-1730 / 1805-1825; Port 2: 1730-1750 / 1825-1845; Port 3: 1750-1785 / 1845-1880 UMTS 2100: Port 1: 1920-1935 / 2110-2125; Port 2: 1935-1965 / 2125-2155; Port 3: 1965-1980 / 2155-2170 |
| Insertion Loss (dB) | ≤ 5.0 | |
| Isolation Between Bands (dB) | ≥ 28 | |
| Isolation Cross Bands (dB) | ≥ 80 | |
| Return Loss (dB) | ≥ 18 | |
| Max Input Power per Port (W) | 100 | |
| Intermodulation Products (dBc) | ≤ -150 @ 2 x 43 dBm | |
| Impedance (Ω) | 50 | |
| Mechanical Specifications | RF Connector Input Port | 6 x 7/16” DIN-Female |
| Output Port | 2 x 7/16” DIN-Female | |
| Monitoring Port | 2 x N-Female | |
| Dimensions (L x W x H) (mm) | 310 x 450 x 210 | |
| Weight (kg) | 18 | |
| Mounting | 19” Rack | |
| Environmental Specifications | Operating Temperature (°C) | -10 to +60 |
| Operational Humidity | Indoor Environmental Class |
Why These Specifications Matter for Signal Integrity
The electrical parameters of the POI 6 In 2 Out 1710-2170MHz with DIN Connector are not just numbers; they represent a guarantee of performance. The low insertion loss (≤5.0dB) ensures that the signal strength is maintained as it passes through the device, which is critical for maintaining coverage area. The high isolation values (≥28dB between bands, ≥80dB cross-band) are especially important in multi-operator environments where signals from different systems must not interfere with each other. Meanwhile, the excellent return loss (≥18dB) and low intermodulation products (≤-150dBc) work together to preserve signal clarity and prevent distortion, ensuring that voice and data transmissions remain clean and reliable.
Design Advantages and Application Versatility
The POI 6 In 2 Out 1710-2170MHz with DIN Connector is built with future-proofing in mind. Its compact, 19-inch rack-mountable chassis allows for easy installation in standard telecommunications racks, saving valuable floor space. The use of robust 7/16” DIN connectors on input and output ports ensures a secure, weather-resistant connection that can handle high power levels without degradation. Additionally, the inclusion of two N-type female monitoring ports provides a convenient way to test signal quality or perform diagnostics without interrupting the main signal path. The device also supports port reservation, allowing system integrators to prepare for future network expansions without the need for complete hardware replacement, thereby avoiding wasteful power loss and reducing total cost of ownership.
This POI is specifically designed for indoor wireless signal coverage. It is compatible with multiple frequency bands and standards, including DCS1800 and UMTS 2100 networks. Common deployment scenarios include:
– Commercial buildings and office complexes
– Transportation hubs such as airports and train stations
– Residential areas requiring distributed antenna systems (DAS)
In each of these environments, the POI 6 In 2 Out 1710-2170MHz with DIN Connector acts as the central nervous system, collecting disparate signals and feeding them into a unified distribution network. The result is a seamless, high-quality communication experience for end-users, with fewer dropped calls and faster data speeds.
Conclusion: The Intelligent Choice for Modern Networks
In summary, the POI 6 In 2 Out 1710-2170MHz with DIN Connector offers a perfect blend of performance, reliability, and scalability. Its advanced design minimizes signal degradation while maximizing flexibility, making it a premier choice for engineers and network operators. By investing in this high-quality POI system, you are not just buying a piece of hardware; you are securing a more efficient, stable, and future-ready communication infrastructure. Whether upgrading an existing system or building a new one from scratch, this POI will help you deliver the robust connectivity that today’s users demand. Choose the POI 6 In 2 Out 1710-2170MHz with DIN Connector and experience the difference that professional-grade signal integration makes.
