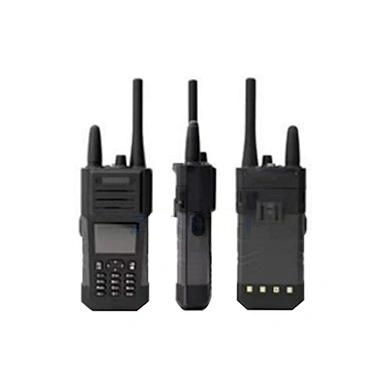

Enhanced Communication: The Power of COFDM Transmission in the Portable Handheld Mesh Radio
In the demanding world of modern cable ＆ wireless communications, the need for reliable, secure, and high-bandwidth connectivity has never been greater. Whether on a chaotic battlefield, a disaster-stricken urban center, or a remote border patrol, traditional communication systems often fail when faced with physical obstructions, electronic interference, or rapidly changing tactical requirements. Enter the Portable Handheld Mesh Radio, a device that redefines what mobile operators can expect from their communication tools. By integrating dynamic mesh networking with a robust COFDM transmission system, this radio solves the core challenges of range, stability, and data throughput. It is not merely a radio; it is a mobile, resilient communication hub designed to bridge the gap between dismounted teams and central command centers. For any professional relying on mission-critical cable ＆ wireless communications, this device represents a leap forward in operational capability.
At the heart of this advanced system is the COFDM (Coded Orthogonal Frequency Division Multiplexing) modulation scheme. Unlike traditional single-carrier systems, COFDM transmission excels in environments plagued by multipath interference. When radio signals bounce off buildings, mountains, or vehicles, they arrive at the receiver at different times, causing distortion. COFDM breaks the data stream into thousands of lower-speed subcarriers, making it highly resistant to this phenomenon. This translates directly into clearer video feeds and more stable voice communications, even while the user is moving at high speed. The radio supports a peak data rate of 47 Mbps, enabling the transmission of real-time 1080P HD video, which is critical for situational awareness. This robust performance is why COFDM has become the standard for modern tactical communications.
Seamless Integration in Cable ＆ Wireless Communications
The true genius of this mesh radio lies in its ability to bridge the gap between wired infrastructure and wireless mobile networks. It is designed with a wide array of interfaces that allow it to act as a gateway, connecting legacy wired systems to modern wireless IP and public networks. For example, the Ethernet (aviation plug) and HDMI video input ports allow operators to connect high-definition cameras or computer systems directly to the mesh network. Furthermore, the inclusion of 4G/5G public network access and BeiDou short message service (SMS) ensures that even when the local mesh is isolated, the user can still communicate with global command centers. This multi-modal capability is essential for establishing reliable cable ＆ wireless communications in areas where existing infrastructure has been compromised or is non-existent. The ability to switch seamlessly between private mesh and public cellular networks makes this device indispensable for first responders and military units alike.
To provide a clear understanding of the device’s technical capabilities, the following table outlines the core specifications of the COFDM transmission system and its supporting hardware.
| Parameter | Value |
|---|---|
| Center Frequency | 450MHz～650MHz (U band), 1～1.5GHz (L band) |
| Carrier Bandwidth | 2.5/5/10MHz |
| Transmission System | COFDM |
| Transmission Rate | Peak rate 47Mbps |
| Image Quality | CIF/HD1/D1/720P/1080P, adaptive adjustment |
| Receive Sensitivity | ≤ -103dBm |
| Transmit Power | 0.5W, dual channel |
| Topology Change Response Time | ≤ 1 second |
| Single-hop Delay | ≤ 10ms |
| Link Adaptation | QPSK/16QAM/64QAM/256QAM |
| Anti-jamming | Intelligent frequency selection & 1000 hops/sec frequency hopping |
| Encryption | DES/AES128/AES256/SM4 |
| Device Size | 155mm×65mm×32mm |
| Operating Temperature | -40°C ～ +65°C |
| Protection Level | IP67 |
Robust Security and Dynamic Networking Features
Beyond raw data performance, the COFDM transmission system is paired with sophisticated security protocols and adaptive networking features. In any sensitive operation, data integrity and confidentiality are paramount. This radio supports multiple encryption standards including DES, AES (128/256), and SM4, ensuring that all traffic is protected from interception. The frequency hopping capability, reaching up to 1000 hops per second, makes jamming and signal detection extremely difficult for adversaries. The radio’s intelligent routing and multi-hop relay capabilities allow it to form a self-healing mesh network of up to 256 nodes. If one node goes offline or a signal path is blocked, the network automatically reroutes data through other nodes, maintaining connectivity. This dynamic architecture is perfect for evolving scenarios like drone cooperation or vehicle fleet maneuvers.
Application in Extreme Environments and Conclusion
The physical design of the mesh radio is built to match its electronic resilience. With a compact form factor (155mm×65mm×32mm) and an IP67 protection rating, it is dust-tight and can withstand immersion in water. Its wide operating temperature range from -40°C to +65°C ensures functionality in arctic cold or desert heat. Whether mounted on a vehicle, carried by a soldier, or integrated into a fixed surveillance point, the radio delivers dependable communication. As the foundation of next-generation “air-space-ground” command systems, this product leverages advanced COFDM transmission to ensure that every node in the network remains connected and informed. For professionals in military communications, emergency response, and industrial IoT, this handheld mesh radio is more than a tool—it is a critical enabler of success in cable ＆ wireless communications.
