Next-Generation SSPA Technology: Redefining Power Amplification for Modern Systems

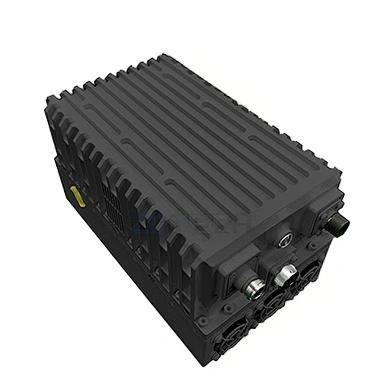

nnThe rapid evolution of science and technology has driven an unprecedented demand for Solid State Power Amplifiers (SSPAs). These advanced devices were specifically engineered to overcome the inherent limitations of traditional power amplifiers, meeting the stringent requirements of modern communications and radar systems for high efficiency, exceptional reliability, and compact design. The SSPA represents a significant technological leap, utilizing solid-state semiconductor devices to leverage the unique properties of semiconductor materials for signal amplification. This results in markedly higher efficiency and lower energy loss compared to conventional tube-based amplifiers.nnBeyond raw efficiency, the SSPA offers a compelling combination of ultra-wideband performance, remarkably small size, lightweight construction, and low heat dissipation. These attributes make it indispensable across a spectrum of critical applications, including satellite communications, advanced radar systems, scientific research, and military and defense operations. The model highlighted here, a 13Hz-15GHz broadband solid-state power amplifier, is specifically optimized for satellite communications and demanding radar applications, positioning itself as an ideal solution for professionals requiring uncompromising performance. With a robust output power of 50W, it provides the necessary headroom for high-power application scenarios, while features like precise gain adjustment, exceptional gain flatness, and long-term gain stability allow for accurate signal strength tuning and enhanced signal integrity. Lower noise figures further contribute to superior signal quality, and an integrated forced-air cooling system ensures stable operation even in challenging high-temperature environments. We remain committed to developing next-generation SSPA products that deliver higher performance, greater efficiency, and superior quality, providing essential technical support to our partners worldwide.nn
Key Electrical & Mechanical Specifications
nnTo ensure clarity and precision, all technical parameters for this SSPA are presented in the table below.nn
| Parameter | Specification |
|---|---|
| Frequency Range | 13-15 GHz |
| Rated Power | +47 dBm / 50W |
| Gain Adjustment | 0-25 dB (step 0.1 dB) |
| Gain Flatness | 0.5 dB P-P |
| Gain | ≥ 60 dB |
| Gain Stability | ±0.5 dB / 24h |
| IM3 | -26 dBc |
| Spurious | ≤ -60 dBc |
| Noise Power Density | ≤ -135 dBW / 4 kHz |
| AM/PM | ≤ 3°/dB |
| Group Delay | ≤ 0.5 nS (p-p) |
| Power Supply | 220 VAC |
| Power Consumption | 280W |
| Dimensions | 205 x 120 x 100 mm |
| Weight | 4.0 kg |
| RF Connectors (Input) | SMA |
| RF Connectors (Output) | WR62 / BJ140 |
| Communication Interface | LAN / RS485 / RS422 / RS232 (optional) |
| Cooling | Forced Air Cooling |
nn
Unleashing the Potential of SSPA in Critical Applications
nnThe unique characteristics of the SSPA make it particularly valuable in sectors where reliability, efficiency, and performance are non-negotiable. In satellite communications, the SSPA’s linearity and high power density enable clearer, more reliable links for voice, data, and video transmission. For radar systems, the fast-switching capabilities and robust construction support advanced signal processing and target detection. The military and defense sector benefits from the SSPA’s rugged design, low probability of intercept, and ability to operate in harsh environments. Furthermore, scientific research leverages the SSPA’s precision and stability for experiments requiring high-fidelity signal generation and amplification.nn
The Advantage of Broadband SSPA Design
nnThis 13-15 GHz SSPA is specifically designed to excel in these challenging scenarios. The broadband nature of the amplifier eliminates the need for multiple narrowband units, simplifying system architecture and reducing maintenance costs. The exceptional gain flatness of 0.5 dB P-P across the entire frequency band ensures that signal integrity is preserved without distortion, while the precise 0.1 dB step gain adjustment gives operators fine control over signal levels. The low noise power density of ≤ -135 dBW/4 kHz is a critical factor for sensitive receiver applications, minimizing performance degradation from unwanted noise. Additionally, the low group delay of ≤ 0.5 nS is essential for modern digital modulation schemes that demand temporal accuracy.nn
Conclusion: The Future of Amplification is Solid-State
nnIn conclusion, the SSPA has firmly established itself as the cornerstone of modern high-frequency amplification. Its ability to deliver high efficiency, low energy loss, compact form factor, and outstanding reliability makes it an indispensable component in satellite communications, radar, military, and scientific fields. The specific 13-15 GHz, 50W model discussed here encapsulates these benefits, offering a robust solution with gain stability, low noise, and effective forced-air cooling for long-term dependable operation. As technology continues to advance, we remain dedicated to pioneering high-level, high-efficiency, and high-quality SSPA products. By providing this essential technical support, we empower partners to build tomorrow’s most demanding and innovative communication and radar systems. The SSPA is not just an amplifier; it is the key to unlocking superior performance in the most challenging applications.
