Understanding the 5W 4.3/10 Male Dummy Load: A Critical Component for RF Testing
nn

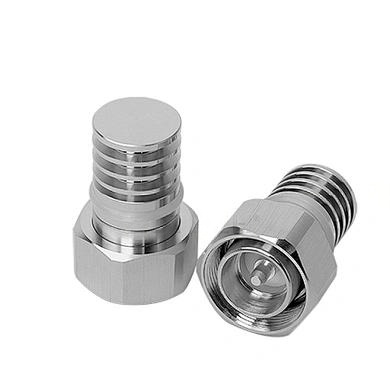

In the world of radio frequency (RF) engineering, testing equipment without damaging sensitive transmitters requires a reliable termination point. This is where the 5W 4.3/10 Male Dummy Load becomes indispensable. Designed to absorb RF energy and simulate an antenna, this compact component ensures that your transmitter operates safely during testing and tuning. Its robust construction, with a power handling capacity of 5 watts and a frequency range from DC to 6 GHz, makes it a versatile tool for both laboratory and field applications. The dummy load’s low VSWR of ≤1.20 guarantees minimal signal reflection, preserving the integrity of your measurements. Whether you are aligning amplifiers, troubleshooting circuits, or verifying transmitter performance, this device provides the accuracy and durability you need.
nn
The connector type is the modern 4.3-10 interface, known for its low passive intermodulation (PIM) and reliable mating cycle. Its male configuration allows direct connection to female ports common on many modern test instruments. With an impedance of 50 ohms, it matches standard RF system requirements. The unit’s small footprint—just 18 mm in diameter and 27.3 mm in length—coupled with its lightweight design (38 grams), makes it easy to integrate into crowded setups. Operating across a wide temperature range of -30°C to +65°C, this dummy load performs consistently in diverse environments. These attributes collectively make the 5W 4.3/10 Male Dummy Load a staple for RF professionals seeking precision and reliability.
nn
Technical Specifications of the 5W 4.3/10 Male Dummy Load
nn
When evaluating a dummy load for your RF testing needs, understanding its technical parameters is essential. The following table outlines the core specifications of this 5W 4.3/10 Male Dummy Load, ensuring you have the exact data to verify compatibility with your system.
nn
| Parameter | Value / Description |
|---|---|
| Type | 5W / 4.3-10 Male Dummy Load |
| Frequency Range | 0 to 6 GHz |
| VSWR | ≤ 1.20 |
| Impedance | 50 Ω |
| Power Handling | 5 W |
| Connector Type | 4.3-10 Male |
| Dimensions (Diameter × Length) | Φ18 mm × 27.3 mm |
| Weight | 38 g |
| Working Temperature Range | -30°C to +65°C |
| Mounting Type | Tie mount |
nn
Materials and Processing: Why Quality Matters in a 5W 4.3/10 Male Dummy Load
nn
The performance of any RF device is heavily influenced by the materials and manufacturing techniques used. The 5W 4.3/10 Male Dummy Load employs a combination of brass, ceramic, and PTFE to achieve its electrical and thermal properties. Each component is precision-machined or sintered to exacting standards, then plated with specialized coatings to enhance conductivity and corrosion resistance. Below is a detailed breakdown of the materials and processing methods for each part.
nn
| Component | Material | Processing Method | Surface Finish |
|---|---|---|---|
| External Conductor | Brass | Machining | Ternary alloy plated |
| Inter Conductor | Brass | Machining | Silver plated |
| Insulator | PTFE | Sintering, Machining | — |
| Power Resistor | Ceramic (Al₂O₃) | Sintering | Silver plated |
| Heat Sink Shell | Brass | Machining | Ternary alloy plated |
nn
Applications and Practical Use of the 5W 4.3/10 Male Dummy Load
nn
RF engineers and technicians rely on the 5W 4.3/10 Male Dummy Load for a wide range of tasks. Its primary function is to replace an antenna during transmitter testing, preventing damage from mismatched loads. In laboratory settings, it serves as a reference load for calibrating network analyzers and power meters. Field technicians use it to verify the output of base station amplifiers, repeaters, and two-way radios. The male 4.3-10 connector ensures secure attachment with minimal signal loss, while the tie-mount design allows for easy placement on racks or workbenches. The silver-plated internal conductors and ternary alloy-plated housing provide excellent conductivity and durability, even after repeated cycles. By incorporating this dummy load into your test setup, you protect your valuable equipment and obtain accurate readings every time.
nn
Comparing Dummy Load Options: Why Choose the 5W 4.3/10 Male Connector?
nn
While there are many dummy loads on the market, the 5W 4.3/10 Male Dummy Load stands out for its balance of power handling, frequency range, and connector compatibility. The 4.3-10 interface is increasingly adopted in modern telecom infrastructure due to its low PIM and high reliability. This makes the dummy load ideal for testing 4G/LTE and 5G systems, where signal purity is critical. Additionally, the compact size allows for use in tight spaces, such as inside equipment enclosures. The 5-watt power rating is sufficient for low to medium power transmitters commonly found in portable radios, signal generators, and small amplifiers. For higher power applications, multiple units can be combined or a higher-rated model selected, but for everyday testing, this unit delivers consistent performance.
nn
Conclusion: The Indispensable Role of the 5W 4.3/10 Male Dummy Load
nn
In conclusion, the 5W 4.3/10 Male Dummy Load is a compact yet powerful tool that every RF professional should have in their arsenal. Its precise engineering, high-quality materials, and thoughtful design ensure reliable performance across a wide range of testing scenarios. From protecting transmitters during development to providing accurate measurements in production, this dummy load is built to last. By choosing this component, you invest in the longevity of your equipment and the accuracy of your results. Make the 5W 4.3/10 Male Dummy Load a standard part of your RF testing toolkit and experience the difference that quality makes.
