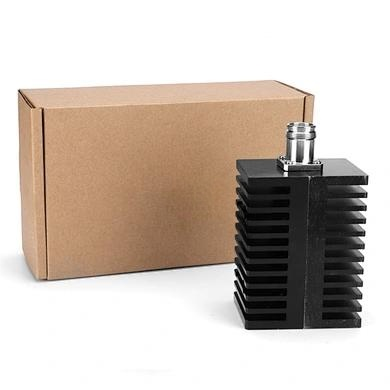

Understanding the MOP-DL-3GHz-xxW-NM Series Low PIM Load
nnIn the demanding world of telecommunications and RF engineering, component reliability and signal purity are non-negotiable. The MOP-DL-3GHz-xxW-NM(NF/MM/DM/DF) series stands as a robust solution for terminating RF lines and ensuring minimal interference. This article explores the critical features, specifications, and applications of this Low PIM Load series, empowering engineers and technicians to make informed decisions for their systems. A Low PIM Load is essential in modern networks where high power and signal integrity must coexist, particularly in base stations and distributed antenna systems. By effectively terminating unused ports with a Low PIM Load, operators can significantly reduce passive intermodulation distortion, which otherwise degrades network performance and capacity. This series delivers consistent performance across a wide frequency range, making it a versatile choice for both indoor and outdoor installations.nn
Key Specifications and Technical Parameters
nnThe MOP-DL-3GHz-xxW-NM series offers a range of power handling options to suit various applications. All technical data is consolidated below for clarity.nn
| Parameter | Specification |
|---|---|
| Model Series | MOP-DL-3GHz-xxW-NM(NF/MM/DM/DF) |
| Power Options | 2W, 5W, 25W, 50W, 100W, 200W |
| Frequency Range | DC – 3 GHz |
| Impedance | 50 Ω |
| Voltage Standing Wave Ratio (VSWR) | ≤ 1.2:1 |
| PIM3 (dBc) @ 2×33 dBm | ≤ -120 dBc |
| PIM3 (dBc) @ 2×43 dBm | ≤ -105 dBc |
| PIM5 (dBc) @ 2×33 dBm | ≤ -145 dBc |
| PIM5 (dBc) @ 2×43 dBm | ≤ -120 dBc |
| Connector Options | N-Male, N-Female, DIN-Male, DIN-Female, BNC-Male, PL259-Male |
| Operating Temperature | -20°C to +55°C |
| Humidity | ≤ 95% |
nn
Power Handling and Frequency Response
nnThe series provides power options ranging from 2W to 200W, accommodating diverse system needs from low-power test setups to high-power transmission lines. With a frequency range spanning DC to 3 GHz, this Low PIM Load covers critical cellular bands, including LTE and 5G sub-6 GHz frequencies, ensuring backward compatibility and future-proofing.nn
PIM Performance and Connector Versatility
nnPassive Intermodulation (PIM) is a major concern in high-power RF systems. This Low PIM Load guarantees ultra-low PIM3 and PIM5 levels, with specifications as low as -120 dBc at 2×33 dBm for PIM3 and -145 dBc for PIM5. Such performance minimizes interference and maximizes data throughput. The connector options are extensive, including N-Type, DIN, BNC, and PL259, all in male or female variants, providing seamless integration into existing infrastructure.nn
Installation and Environmental Durability
nnDesigned for rigorous field conditions, the series operates reliably within -20°C to +55°C and withstands humidity up to 95%. This makes it suitable for outdoor enclosures and shelters without degradation. The robust construction ensures that the Low PIM Load maintains its electrical characteristics over time, reducing maintenance frequency and total cost of ownership. Each unit undergoes stringent quality checks to verify VSWR and PIM specifications before shipping.nn
Application Scenarios for the MOP-DL-3GHz-xxW-NM Series
nnTypical use cases include terminating unused ports on combiners, duplexers, and tower-mounted amplifiers. In multi-operator systems, deploying a Low PIM Load on spare connectors prevents PIM generation from oxidized or loose terminations. The series is also ideal for laboratory testing where precise termination is required for accurate measurements. With its wide frequency coverage and multiple power levels, it supports both 4G LTE and emerging 5G networks.nn
Conclusion
nnSelecting the right termination component is critical for network performance. The MOP-DL-3GHz-xxW-NM series provides a reliable, high-performance Low PIM Load that meets the stringent demands of modern RF systems. Whether for base station maintenance or lab calibration, this series delivers consistent, low-interference operation across its entire frequency range. By incorporating this Low PIM Load, engineers can ensure signal integrity and reduce unwanted distortion, ultimately leading to better network efficiency and user experience. Its durable design and flexible connector choices make it a versatile addition to any RF toolkit.
