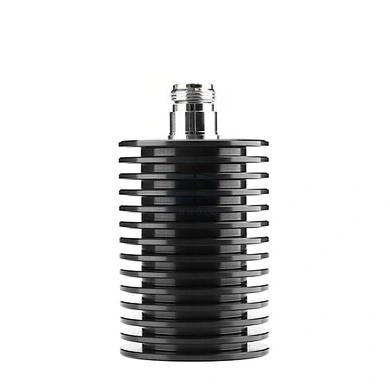

Understanding the MOP-DL-3GHz-50W-NM RF Dummy Load Series
nn
In any RF system, signal integrity and power handling are non-negotiable. That’s where a high-quality RF dummy load comes into play, and the MOP-DL-3GHz-50W-NM (and its variants NF, MM, DM, DF) series is purpose-built for this task. Designed to terminate RF signals cleanly with minimal reflection, these dummy loads serve as essential terminal loads in base stations, test setups, and communication equipment. Whether you need a compact 2W terminator or a robust 200W load, this series delivers reliable performance across a wide spectrum of applications.
nn
Core Specifications and Electrical Performance
nn
The foundation of any RF dummy load is its impedance and frequency range. This product line maintains a characteristic impedance of 50Ω across a frequency range from DC to 3 GHz, ensuring compatibility with standard coaxial systems. Impressively, the Voltage Standing Wave Ratio (VSWR) is kept at or below 1.2:1, which is critical for minimizing signal reflections and preserving system efficiency. Moreover, the intermodulation performance is outstanding: third-order products (PIM3) are measured at ≤ -120 dBc when tested at 2×33 dBm, and ≤ -105 dBc at 2×43 dBm. Fifth-order products (PIM5) are even tighter, with ≤ -145 dBc at 2×33 dBm and ≤ -120 dBc at 2×43 dBm. These PIM figures ensure that your transmitted signal remains clean and free from spurious interference, which is especially important in sensitive communication environments.
nn
Power Ratings and Connector Flexibility
nn
The MOP-DL-3GHz series is available in several power variants to match your specific system requirements. The table below summarizes the key electrical and mechanical specifications for each model option.
nn
| Model Suffix (xxW) | Power Rating | Frequency Range | Impedance (Ω) | VSWR (Max) | PIM3 @ 2×33 dBm | PIM3 @ 2×43 dBm | PIM5 @ 2×33 dBm | PIM5 @ 2×43 dBm |
|---|---|---|---|---|---|---|---|---|
| 2W | 2 Watts | DC-3 GHz | 50 | ≤1.2:1 | ≤ -120 dBc | ≤ -105 dBc | ≤ -145 dBc | ≤ -120 dBc |
| 5W | 5 Watts | DC-3 GHz | 50 | ≤1.2:1 | ≤ -120 dBc | ≤ -105 dBc | ≤ -145 dBc | ≤ -120 dBc |
| 25W | 25 Watts | DC-3 GHz | 50 | ≤1.2:1 | ≤ -120 dBc | ≤ -105 dBc | ≤ -145 dBc | ≤ -120 dBc |
| 50W | 50 Watts | DC-3 GHz | 50 | ≤1.2:1 | ≤ -120 dBc | ≤ -105 dBc | ≤ -145 dBc | ≤ -120 dBc |
| 100W | 100 Watts | DC-3 GHz | 50 | ≤1.2:1 | ≤ -120 dBc | ≤ -105 dBc | ≤ -145 dBc | ≤ -120 dBc |
| 200W | 200 Watts | DC-3 GHz | 50 | ≤1.2:1 | ≤ -120 dBc | ≤ -105 dBc | ≤ -145 dBc | ≤ -120 dBc |
nn
Connector Options and Environmental Resilience
nn
Connector compatibility is a key strength of this RF dummy load series. You can choose from N-Male, N-Female, DIN-Male, DIN-Female, BNC-Male, or PL259-Male connectors. Custom connector types are also available upon request, making these loads adaptable to diverse system architectures—from laboratory test benches to field-deployed communication base stations. Environmentally, the dummy loads operate reliably within a temperature range of -20°C to +55°C and tolerate humidity levels up to 95%. This durability ensures stable performance even in challenging outdoor or indoor installations.
nn
Applications Across RF Systems
nn
Because of their consistent electrical performance and rugged construction, these dummy loads are commonly used as terminal loads in communication base stations, RF test instruments, and general-purpose RF equipment. They help protect signal sources from damage due to mismatched loads, maintain system calibration, and allow for safe testing of transmitters and amplifiers. The low VSWR and low PIM values are especially beneficial in high-performance systems where signal purity is critical.
nn
In conclusion, the RF dummy load series MOP-DL-3GHz-50W-NM (and its connector variants) offers a versatile, high-performance solution for terminating RF signals from DC to 3 GHz. With power ratings spanning from 2W to 200W, excellent VSWR specs, and industry-leading intermodulation performance, these loads meet the stringent demands of modern communication and testing environments.
