Why Choose a Right-Hand Circular Polarization Antenna for Wideband Applications
In professional wireless communication, signal integrity is paramount. The challenge of maintaining a stable link in environments filled with interference, multipath reflections, and physical obstructions requires a specialized solution. The Right-Hand Circular Polarization Antenna is a critical component designed to meet these demands. Unlike linearly polarized antennas, which are susceptible to polarization mismatch and fading, a circularly polarized antenna ensures that signal orientation does not degrade performance. This makes it ideal for mobile platforms, industrial IoT networks, and outdoor monitoring systems where signals reflect off surfaces, causing phase shifts. The Right-Hand Circular Polarization Antenna leverages its inherent design to effectively cancel out multipath interference, guaranteeing that data transmissions remain clear and consistent. Engineers and system integrators increasingly rely on this design for its ability to maintain a robust communication link without the need for precise physical alignment of the transmitter and receiver.

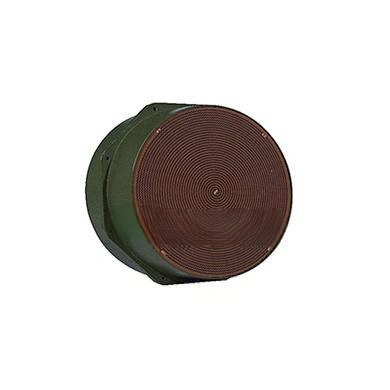

Technical Specifications of the 0.38-2GHz Planar Helical Antenna
To fully appreciate the capabilities of this antenna, it is essential to review its core technical parameters, which define its performance across diverse scenarios. The 0.38-2GHz Planar Helical Antenna is not just a single-purpose device but a versatile tool engineered for wide frequency agility and physical ruggedness. The following table outlines the key specifications that make this antenna a top choice for demanding professional environments. These parameters ensure that the device operates efficiently from UHF low-band applications to the edge of the S-band, providing flexibility for various communication protocols.
| Parameter | Value |
|---|---|
| Operating Frequency | 0.38 – 2 (GHz) |
| Standing Wave Ratio (VSWR) | ≤ 2.5 |
| Polarization | Right-hand circular |
| Beamwidth (Azimuth) | ≥ 90° (gain ≥ -8dBi) |
| Beamwidth (Elevation) | ≥ 90° (gain ≥ -8dBi) |
| Beamwidth @1GHz (Azimuth & Elevation) | ≥ 90° (gain ≥ -3dBi) |
| Gain (Normal) | ≥ -7dBi (including ≥ 2dBi @1GHz) |
| Operating Temperature | -40°C to +55°C |
| Storage Temperature | -55°C to +70°C |
| Connector Type | SMA-K |
| Dimensions (W x D x H) | 230mm x 230mm x 110mm |
| Color | Military Green |
| Material | Aluminum Alloy |
| Weight | ≤ 660g |
Understanding the Low VSWR Antenna Advantage
A critical feature of the 0.38-2GHz Planar Helical Antenna is its status as a Low VSWR Antenna. Voltage Standing Wave Ratio (VSWR) measures how efficiently radio-frequency power is transmitted from a source through a transmission line into a load. A lower VSWR indicates better impedance matching, meaning less power is reflected back to the source and more is radiated. With a VSWR of ≤2.5 across the entire bandwidth, this antenna ensures that signal reflection losses are minimized. This efficient energy conversion is crucial for maintaining signal strength in medium to long-distance links, such as those found in military-grade communications or outdoor surveillance systems. By acting as a Low VSWR Antenna, it reduces the strain on the transmitter and improves overall system reliability, especially when dealing with variable environmental conditions that can otherwise degrade performance.
The Mechanical and Environmental Durability of the Lightweight Antenna
Ruggedness does not have to come at the cost of practicality. This model is a true Lightweight Antenna, weighing just 660 grams. Its compact form factor (230mm x 230mm x 110mm) allows for flexible deployment without placing excessive load on mounting structures. This is particularly advantageous for mobile command vehicles, temporary field stations, or industrial robot arms. Despite its light weight, the housing is constructed from durable aluminum alloy with a military green finish. This material provides excellent resistance to moisture, UV radiation, and mechanical impact, ensuring the Lightweight Antenna survives extreme conditions from -40°C to +55°C. The integrated SMA-K connector provides a secure, weatherproof point of connection, further enhancing the unit’s suitability for outdoor and industrial use.
Conclusion: The Optimal Solution for Demanding Environments
For professionals who require stable, wideband signal transmission in challenging conditions, the 0.38-2GHz Planar Helical Antenna offers a complete package of performance and practicality. Its combination of wide frequency coverage, low VSWR, and true right-hand circular polarization ensures robust communication links free from interference and multipath degradation. The physical design as a Lightweight Antenna with a robust aluminum alloy housing makes it ideal for both fixed infrastructure and mobile applications. As a Low VSWR Antenna, it maximizes system efficiency, while the inherent capabilities of the Right-Hand Circular Polarization Antenna guarantee signal integrity across a 360-degree coverage area. From industrial IoT in harsh factories to reliable data links in outdoor monitoring, this antenna stands out as the definitive hardware choice for mission-critical wireless communication.
