Streamlining Connectivity with Versatile Jumper Cable RF-Combination Connectors
nn
In the fast-evolving world of RF communications, efficiency and adaptability are paramount. Jumper cable RF-combination connectors offer a groundbreaking solution by allowing engineers to assemble connectors from different series as either straight or angle versions. This versatility is achieved through interchangeable clamps that can be swapped depending on the installation requirement. With just one combination connector body and a selection of cable clamps, a wide variety of connector configurations can be produced, drastically reducing the need for extensive stock inventories. This modular approach not only simplifies inventory management but also accelerates deployment in the field, making it easier to meet diverse project demands without sacrificing performance.
nn
These connectors are designed to work seamlessly with a broad range of RF coaxial cable assemblies, including industry-standard Andrew, LMR, and RG cable series. Whether you require a 4.3-10 Din, N, L29 (7/16), SMA, SMB, MCX, or other connector types, the system supports a flexible configuration that can be tailored to specific applications. Cable types range from 1/4-inch and 3/8-inch flexible cables to larger LDF4-50A (1/2-inch), LDF5-50A (7/8-inch), VXL5-50 (7/8-inch), and popular LMR series such as LMR100, LMR195, LMR200, LMR240, LMR400, LMR500, and LMR600. OEM and ODM orders are also warmly welcomed to ensure custom solutions for specialized projects.
nn
Understanding the Core Components: Jumper Cable RF-Combination Connectors in Detail
nn
At the heart of this system lies the concept of combining different connector series into a single, adaptable assembly. For example, you can pair a 4.3-10 Mini Din male connector with a standard coaxial cable, creating a custom jumper cable RF-combination connector that meets specific signal transmission needs. The ability to switch between straight and right-angle configurations without changing the entire connector body means less downtime and more flexibility during installation. This modular design is particularly valuable in tight spaces or when cable routing demands a precise angle.
nn

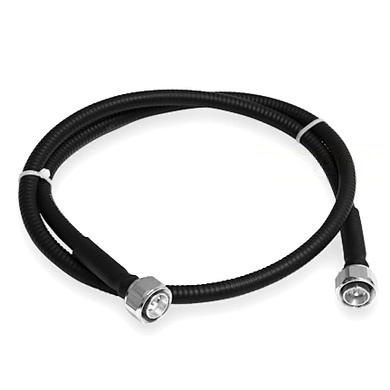

Example Configuration: 4.3-10 Mini Din Male to 4.3-10 Mini Din Male Assembly
nn
Consider a typical assembly that uses two 4.3-10 Mini Din male connectors. This configuration is ideal for connecting communications equipment where a high-performance, compact connection is required. Below are the technical specifications for such an assembly, which demonstrate the reliability and precision of these connectors:
nn
| Parameter | Connector 1 (4.3-10 Male) | Connector 2 (Mini Din Male) |
|---|---|---|
| Temperature Range | -55~+155°C (PE Cable -40~+85°C) | -55~+155°C (PE Cable -40~+85°C) |
| Impedance | 50Ω | 50Ω |
| Frequency Range | DC-4GHz | DC-4GHz |
| Withstanding Voltage | 4000V r.m.s at sea level | 4000V r.m.s at sea level |
| Working Voltage | 2700V r.m.s at sea level | 2700V r.m.s at sea level |
| Insulation Resistance | ≥ 10000 MΩ | ≥ 10000 MΩ |
| Durability | ≥ 500 (cycles) | ≥ 500 (cycles) |
| Contact Resistance (Center) | ≤ 0.4 mΩ | ≤ 0.4 mΩ |
| Contact Resistance (Outer) | ≤ 1.5 mΩ | ≤ 1.5 mΩ |
| VSWR (Straight) | ≤ 1.20/6GHz | ≤ 1.20/6GHz |
| VSWR (Right Angle) | ≤ 1.35/6GHz | ≤ 1.35/6GHz |
nn
The cable used in such an assembly can be a 3/8-inch flexible coaxial cable, with lengths starting from 0.5 meters or tailored to customer requirements. Standard packaging is neutral, but customized packaging is available upon request to meet branding or logistical needs.
nn
Beyond the Basics: Expanding Your Jumper Cable RF-Combination Connector Options
nn
While the 4.3-10 series is a popular choice, the jumper cable RF-combination connector system extends to other series and configurations. For example, you can combine an N-type connector with an SMA or SMB, depending on the application. The key advantage remains the same: by using common clamps and connector bodies, you can create a wide array of assemblies from a reduced inventory. This not only lowers storage costs but also minimizes the risk of obsolescence, as the same components can be repurposed for future projects.
nn
For those interested in exploring further, our company website showcases a comprehensive range of products, including additional connector series, cable types, and custom assembly options. Whether you are designing a new telecommunications network, upgrading an existing system, or working on a specialized industrial application, these versatile jumper cable RF-combination connectors provide the reliability and flexibility you need.
nn
Conclusion
nn
In an industry where precision and adaptability drive success, the jumper cable RF-combination connector emerges as a powerful tool for engineers and technicians. By enabling the assembly of straight or angle connectors from different series using interchangeable clamps, it simplifies inventory, reduces costs, and enhances deployment speed. The technical specifications outlined here demonstrate the high-performance capabilities of these connectors, from their robust temperature range and impedance characteristics to their low VSWR and contact resistance values. Whether you require a standard configuration or a custom OEM/ODM solution, these connectors are designed to meet the toughest demands. Embrace the future of connectivity with a modular approach that keeps your projects agile and your budgets efficient.
