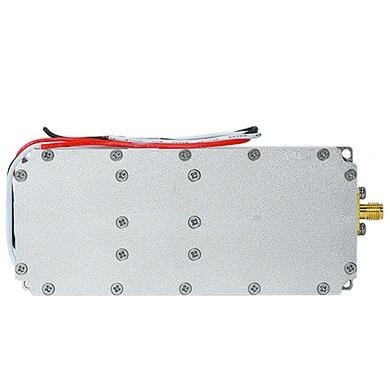

Revolutionizing Communication: The Wideband Digital 50W 100-400MHz GaN RF Power Amplifier Module
n
In the rapidly evolving world of wireless communication, efficiency and innovation are paramount. The wideband digital 50W 100-400MHz GaN RF power amplifier module stands as a testament to engineering excellence, combining digital LoRa communication with robust RF power amplification in a single, groundbreaking device. This dual-function integrated design is a rarity in the current market, setting a new benchmark for performance and reliability. Whether deployed for mission-critical industrial applications or advanced communication systems, this RF power amplifier signal booster delivers exceptional results across its entire frequency range.
n
Traditional power amplifiers often struggle to maintain consistency across wide bandwidths, but this module excels. Operating within the 100-400MHz spectrum, it achieves a saturated output power of 47±1dBm—equivalent to roughly 50 watts—ensuring strong signal transmission even in challenging environments. Moreover, the RF power amplifier module provides stable continuous gain of 47±2dB with in-band fluctuation kept under 2.0dB. This precision guarantees that signals remain clear and reliable, reducing data loss and enhancing overall system performance.
n
Key Specifications of the RF Power Amplifier Module
n
| Parameter | Value |
|---|---|
| Model Number | MOP-PAL-100/400M-50W |
| Working Frequency | 100-400MHz |
| Saturated Output Power | 47±1dBm (50±1W) |
| Gain | 47±2dB / 50±2dB |
| In-band Fluctuation | ≤2.0dB |
| Input VSWR | ≤1.5 |
| Working Voltage | DC +28V |
| Working Current | ≤5A |
| Power Supply Wiring | Red: Positive; Black: Ground; Enable Wire |
| Enable Control | 3.2V-5V: On; 0V: Off |
| Output RF Port | SMA or N-type |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -25°C to +65°C |
| Operating Humidity | 5% to 95%, Non-condensing |
| Outer Shell Material | Aluminum |
n
Unmatched Impedance Matching and Efficiency
n
A critical aspect of any RF power amplifier signal booster is its ability to minimize signal loss, and this module excels with an input VSWR of ≤1.5. This low voltage standing wave ratio indicates excellent impedance matching, which reduces power reflection and maximizes the transfer of energy from the amplifier to the antenna. The result is higher operational efficiency, less heat generation, and superior signal integrity. In practical terms, this means fewer dropped connections and more consistent performance in demanding wireless networks.
n
Durable Build for Demanding Environments
n
The robust aluminum housing is more than just a protective shell; it is an integral part of the module’s thermal management system. Aluminum’s natural heat dissipation properties keep internal components cool even under continuous high-power operation. This durability ensures that the RF power amplifier module can withstand temperature extremes from -10°C to +55°C and humidity levels ranging from 5% to 95% (non-condensing). Whether deployed in an indoor data center or an outdoor communication tower, this device maintains stable performance, reducing the risk of thermal shutdown or component failure.
n
Simplifying Deployment with Integrated Design
n
By merging LoRa digital communication with high-power amplification, this module eliminates the need for separate devices, simplifying system architecture and reducing overall cost. The integrated design also simplifies wiring and control, with clear power supply and enable functions. A simple 3.2V to 5V signal turns the amplifier on, while 0V switches it off, allowing for easy integration into automated systems. This focus on user-friendly operation underscores the module’s suitability for both experienced engineers and those new to RF design.
n
Conclusion: The Future of RF Power Amplification
n
This wideband digital 50W 100-400MHz GaN RF power amplifier module represents a significant leap forward in communication technology. Its combination of high power, wide frequency coverage, and dual-function capability makes it an invaluable asset for applications ranging from military radios to industrial IoT networks. The RF power amplifier signal booster inside this module delivers consistent, reliable amplification with minimal signal degradation, while its rugged construction ensures longevity in the field. For any project requiring robust, efficient, and innovative RF amplification, this module is not just a component—it is a complete solution. Embrace the power of advanced GaN technology and experience communication without compromise.
