Unleashing Reliable Signal Coverage with the 225-400MHz Wideband Antenna

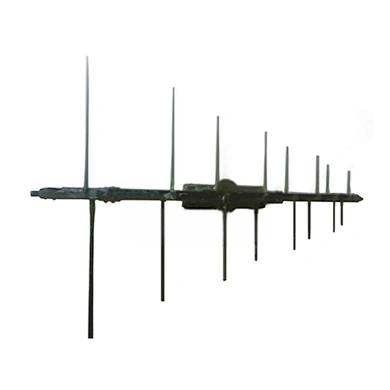

nnIn demanding professional RF environments, a communication device must deliver consistent performance across a broad spectrum. The 225-400MHz Wideband Antenna is engineered to excel precisely under these conditions, operating stably within the 225MHz to 400MHz frequency range. This wideband coverage makes it an ideal solution for critical applications such as advanced communication systems, radar auxiliary signal transmission, and industrial control processes, where both bandwidth and signal stability are paramount. At its core, this antenna is a Log-Periodic Antenna, a design that provides superior wideband impedance matching and uniform radiation characteristics. This architecture effectively minimizes signal attenuation across varying frequencies, ensuring seamless communication quality throughout the entire operational band. By addressing the common challenge of frequency-dependent signal loss, it enables consistent connectivity even in the most complex RF landscapes.nn
Key Performance Specifications of the 225-400MHz Wideband Antenna
nn
| Parameter | Value |
|---|---|
| Frequency Range | 225MHz ~ 400MHz |
| Gain | >6dBi |
| 3dB BeamWidth | 60° ~ 125° |
| Maximum Carrying Capacity | 100W / 800W |
| Standing Wave | 1.5 (typical value) |
| Joggle | N / L29 Type |
| Seat Way To Install | Panel Installation |
| Reference Dimention | 1270mm × 770mm × 146mm (LWH) |
| Pigment | Army Green |
| Material | Alufer |
| Working Temperature | -55℃ ~ +75℃ |
| Storage Temperature | -65℃ ~ +85℃ |
nn
High Gain and Wide Coverage for Demanding Scenarios
nn
Understanding the Antenna’s Performance Advantages
nnPerformance wise, the 225-400MHz Wideband Antenna stands out with a prominent high gain feature. Its overall gain exceeds 6dBi, with even more impressive specific outputs at key operating frequencies—7.6dBi at 225MHz and 8.8dBi at 400MHz. This exceptional gain capability, combined with a 3dB beamwidth ranging from 60° to 125°, allows the antenna to maintain long-distance signal transmission while covering a broad receiving area. This dual advantage effectively eliminates signal blind spots, ensuring robust connectivity over expansive zones. Additionally, the antenna supports a maximum carrying capacity of 100W/800W, meeting the demands of high-power signal transmission without compromising performance. The low VSWR of 1.5 (typical value) further reduces signal reflection loss, significantly improving overall energy utilization efficiency. For RF engineers, this translates to a device that not only delivers powerful signals but does so with minimal waste, enhancing system reliability.nn
Structural Durability and Environmental Adaptability
nn
Built for Extreme Conditions
nnIn terms of structural and environmental resilience, the 225-400MHz Wideband Antenna is constructed from high-quality Alufer material, which offers a perfect balance of lightweight design and high structural strength. The army green coating provides exceptional corrosion and wear resistance, making it highly suitable for harsh outdoor deployments. The antenna operates reliably across a broad temperature range, from -55℃ to +75℃, with an even wider storage tolerance of -65℃ to +85℃. This ensures consistent performance in extreme climates, from freezing arctic conditions to scorching desert environments. The panel installation design, with reference dimensions of 1270mm × 770mm × 146mm, simplifies mounting while maintaining spatial flexibility. Furthermore, the inclusion of an N/L29 type connector allows for rapid and stable integration with various RF devices, significantly reducing installation and debugging time.nn
Conclusion: A Versatile Solution for Professional Communication
nnThe 225-400MHz Wideband Antenna is more than just a component; it is a comprehensive solution designed to meet the rigorous demands of modern RF systems. From relaying critical signals in industrial settings and enhancing outdoor communication base stations to supporting auxiliary signal transmission in radar systems, this Log-Periodic Antenna delivers on every front. By leveraging its wideband coverage, exceptional high gain, and robust build, users can achieve a stable, efficient, and reliable signal transmission solution that adapts to the most challenging environments. For professionals seeking uncompromising performance, the 225-400MHz Wideband Antenna represents a sound investment in operational continuity and quality.
