Unlocking High Power with the 100W Amplifier and VCO Signal Source Module

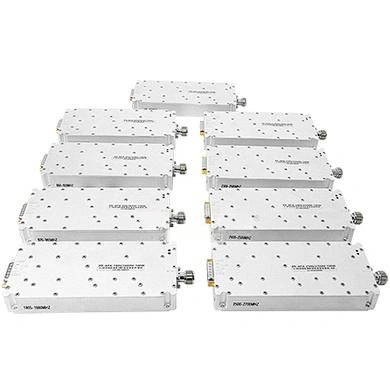

nnIn the world of RF engineering, reliability and performance are paramount. The MOP-PA-2300/2500M-100W module stands as a testament to robust design, offering a seamless integration of a 100W power amplifier with a built-in VCO signal source. Whether you are deploying communication systems, conducting research, or enhancing transmission capabilities, this module delivers consistent power output across a broad spectrum. Its compact, aluminum alloy housing ensures both durability and efficient heat dissipation, making it an ideal choice for demanding applications.nn
Key Features and Engineering Excellence
nnThis module is not just about raw power; it is engineered for precision. The inclusion of a high-speed noise modulation signal source eliminates the need for external signal generation, simplifying system architecture. Protection features such as temperature and VSWR warnings safeguard the unit against common operational hazards, extending its lifespan in the field. The switch control via a feedthrough capacitor, requiring 3.3V or 5V for activation, adds a layer of user-friendly automation.nn
Comprehensive Specifications for the 100W Power Amplifier
nnTo fully appreciate the capabilities of this module, it is essential to examine the detailed technical parameters. Every specification listed below has been rigorously tested to ensure peak performance in real-world conditions.nn
| Parameter | Specification | Remarks |
|---|---|---|
| Frequency Range | 430-435 / 860-928 / 1171-1371 / 1570-1620 / 2300-2500 / 5700-5900 / 850-895 / 920-965 / 1808-1880 / 2100-2170 / 2500-2700 MHz | Selectable bands |
| Bandwidth | 70 MHz | |
| Maximum Output Power | 50 ± 1 dBm | |
| Operating Voltage | DC +28 V | |
| Operating Current | ≤ 8.5 A @ 100W | |
| In-Band Ripple | ± 1 dB | |
| Input / Output VSWR | ≤ 1.5 | |
| Power Stability | ± 1 dB (at –20 to +55 °C) | |
| Output RF Connector | SMA-50KFD | |
| Operating Environmental Temperature | –20 to +55 °C | |
| Dimension | 186 x 94 x 26 mm | |
| Protection | Temp warning, VSWR warning | |
| Switch (feedthrough capacitor) | 3.3 V / 5 V: ON; 0 V: OFF | |
| Input Signal Source | Built-in high-speed noise modulation signal source | |
| Power Supply Input (feedthrough capacitor) | 28 V power input, GND | |
| Net Weight | 0.7 kg |
nn
Understanding the 100W Power Amplifier’s Operational Advantages
nnThe module’s ability to maintain a power stability of ±1 dB across a wide temperature range (–20 to +55°C) is crucial for outdoor or variable environments. The low in-band ripple and excellent VSWR ensure minimal signal distortion, preserving the integrity of your transmission. By housing both the amplifier and the signal source in a single unit, this design reduces cabling complexity and potential points of failure, making the 100W power amplifier a truly integrated solution.nn
Design and Physical Attributes
nnWith dimensions of 186 x 94 x 26 mm and a net weight of just 0.7 kg, this module is remarkably portable for its power class. The use of an SMA-50KFD RF connector facilitates straightforward integration with standard test equipment and antenna systems. The protective warnings for temperature and VSWR are not just safety nets; they are proactive features that allow for continuous monitoring and immediate system response, preventing costly downtime.nn
Optimizing Your Setup with the VCO Signal Source
nnThe built-in high-speed noise modulation signal source is a standout feature, providing an on-board capability for generating complex signals without additional hardware. This simplifies the initial configuration and allows for rapid deployment in field or lab settings. Combined with the power amplifier’s broad frequency support, this module becomes a versatile tool for anyone working in the 430 MHz to 5900 MHz range.nn
Conclusion
nnThe MOP-PA-2300/2500M-100W module redefines what is possible with a compact, integrated RF system. Its combination of high output power, broad bandwidth, and built-in intelligence makes it a superior choice for engineers and technicians. The detailed specifications provided above are not just numbers; they represent the module’s capability to perform reliably under stress. When you require a 100W power amplifier that streamlines development while delivering consistent results, this module stands ready to meet the challenge, ensuring your transmissions are always powerful and precise.
