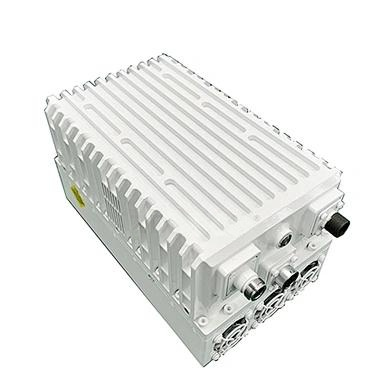

Unleashing the Potential of Ku-Band with Our 40W SSPA Product Series
nn
As communication and radar technologies advance at an unprecedented pace, the demand for power amplifiers that deliver both high performance and unwavering reliability has never been greater. Traditional amplifier designs often fall short, struggling with limitations in power output, linearity, and noise performance—shortcomings that can cripple modern satellite communication links, radar systems, and wireless networks. Enter our new 40W SSPA product series: a breakthrough engineered to overcome these very challenges. By harnessing cutting-edge semiconductor technology and innovative circuit design, this series offers exceptional power output, superior linearity, and ultra-low noise characteristics. It is purpose-built to meet the rigorous demands of the most critical applications, from satellite communications and weather radar to air traffic control and beyond. The 40W SSPA is not just an upgrade—it is a paradigm shift in what you can expect from a Ku-band power amplifier.
nn
Engineered for Excellence: Core Features of the 40W SSPA
nn
At the heart of the 40W SSPA product series lies a suite of advanced features designed to deliver consistent, high-quality performance in the most challenging environments. Our engineers have prioritized power, precision, and reliability, creating a solution that sets new benchmarks for the industry. Below, we explore the key characteristics that make this power amplifier an indispensable asset for modern communication and radar systems.
nn
Unmatched Power and Linearity for Ku-Band Systems
nn
The 40W SSPA provides a robust +46dBm rated power output (equivalent to 40 watts) across the full 13-15GHz frequency range, making it ideal for Ku-band applications. This power is complemented by exceptional gain flatness of just 0.5dB peak-to-peak, ensuring signal stability even under demanding modulation schemes. With an IM3 of -26dBc and spurious emissions suppressed to ≤-60dBc, the amplifier maintains outstanding linearity and signal integrity. Whether deployed in satellite uplinks or high-precision radar systems, the 40W SSPA guarantees that your transmissions remain clear, strong, and free from distortion.
nn
Flexible Integration with Intelligent Control
nn
Designed with system integration in mind, the 40W SSPA offers remarkable flexibility. It supports an S-band input option, allowing it to interface with a wider variety of system architectures. Gain can be precisely adjusted in 0.1dB steps over a 0-25dB range, enabling fine-tuning to match specific link budgets. The amplifier also features a comprehensive communication interface, with options for LAN, RS485, RS422, or RS232, ensuring seamless control and monitoring in any networked environment. This adaptability makes the 40W SSPA a versatile choice for both new designs and upgrades to existing infrastructure.
nn
Reliable Operation Under Extreme Conditions
nn
High-power operation in compact form factors demands superior thermal management. The 40W SSPA incorporates efficient forced air cooling to dissipate up to 250W of power consumption, maintaining optimal operating temperatures for long-term reliability. The rugged mechanical design, with dimensions of 235150110mm and a weight of 4.3kg, facilitates easy integration into standard 19-inch racks or custom enclosures. All these elements combine to create a power amplifier that delivers consistent performance across the full military and commercial temperature ranges, ensuring your systems remain operational when it matters most.
nn
Technical Specifications of the 40W SSPA Product Series
nn
The following table provides a comprehensive overview of the electrical and mechanical parameters that define the 40W SSPA. All specifications are guaranteed over the full operating range to ensure predictable, repeatable performance in your application.
nn
| Parameter | Specification |
|---|---|
| Frequency Range | 13-15 GHz |
| Input Power | S band optional |
| Rated Power | +46 dBm / 40 W |
| Gain Adjustment | 0-25 dB (step 0.1 dB) |
| Gain Flatness | 0.5 dB p-p |
| Spurious | ≤ -60 dBc |
| Harmonics | ≤ -60 dBc |
| IM3 | -26 dBc |
| Noise Power Density | ≤ -135 dBW/4 kHz |
| Supply Voltage | 24 VDC |
| Power Consumption | 250 W |
| Phase Noise @1 kHz | ≤ -65 dBc/Hz |
| Phase Noise @10 kHz | ≤ -85 dBc/Hz |
| Dimensions (L x W x H) | 235 x 150 x 110 mm |
| Weight | 4.3 kg |
| RF Input Connector | N-type |
| RF Output Connector | WR62 / BJ140 |
| Communication Interface | LAN / RS485 / RS422 / RS232 (optional) |
| Cooling Method | Forced Air Cooling |
nn
Commitment to Partnership: Comprehensive Support for Your Success
nn
We understand that the success of our partners is the driving force behind our own growth. That is why we go far beyond simply delivering a high-quality 40W SSPA product. From initial technical consultation to the deployment of fully customized solutions, our dedicated team of experts is with you every step of the way. We provide detailed training, comprehensive technical documentation, and ongoing support to ensure you can quickly integrate and optimize the amplifier’s performance within your specific system. This collaborative approach empowers you to fully leverage the advantages of the 40W SSPA, accelerating innovation and achieving superior results. Together, we are not just building better amplifiers—we are building lasting partnerships that drive the entire industry forward.
nn
Conclusion: The 40W SSPA as Your Strategic Advantage
nn
In an era where bandwidth is precious and performance is non-negotiable, the 40W SSPA product series stands as a testament to what focused engineering and a commitment to quality can achieve. By combining high power output, exceptional linearity, and low noise with a flexible, rugged mechanical design, this power amplifier directly addresses the most pressing needs of modern Ku-band communications and radar systems. It is a solution designed not just to meet current demands but to anticipate tomorrow’s challenges. We invite you to explore how the 40W SSPA can become the cornerstone of your next-generation system, delivering the reliability and performance that define industry leadership. Join us in setting a new standard for high-performance amplification.
