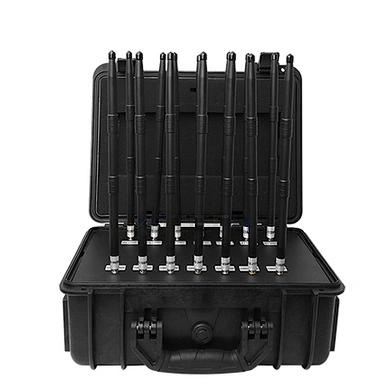

Introducing the MOPTECH Portable Suitcase Signal Jammer: Unmatched Interference Technology
When security and control are paramount, the MOPTECH portable suitcase interference device stands as a formidable solution for disrupting unwanted communications. Designed for tactical operations, bomb disposal, and high-stakes security missions, this portable signal jammer offers a robust combination of power, portability, and precision. By integrating advanced analog and noise processing, it effectively neutralizes a wide spectrum of wireless signals, from cellular networks to remote control frequencies. Its portable design, lightweight chassis, and built-in battery make it ideal for mobile applications such as detonation and emergency response. This article delves into the technical parameters, operational features, and critical safety notes that define this sophisticated device, emphasizing how its omnidirectional antenna and intelligent systems ensure reliable performance in demanding environments.
Core Technical Parameters and Design Philosophy
The foundation of the MOPTECH frequency jammer lies in its carefully engineered technical specifications. The omnidirectional antenna provides a signal shielding range radius of 10 to 25 meters, depending on the signal field strength of nearby base stations. This flexibility ensures effective coverage in both urban and remote settings. The device employs a wireless communication interference approach that is entirely portable, making it suitable for rapid deployment. With a total RF transmit power of 70W distributed across 14 single channels (each at 5W), the system can simultaneously target multiple frequency bands, including 2G, 3G, 4G, 5G, and wireless remote controls. Frequency customization is available to adapt to specific operational requirements.
The portable signal jammer operates using an analog plus noise processing mode, which enhances its ability to block complex signals. Protection functions include temperature alarm and standing wave protection, safeguarding the hardware from damage. An intelligent heat dissipation system, augmented by multiple super cooling fans and thick cooling teeth, ensures continuous operation even in high-temperature environments. The main chassis is constructed from ABS plastic, providing durability while keeping the unit lightweight. The system is powered by a built-in 8.4V-30A battery, offering continuous use for greater than one hour, with an external charger for extended missions.
Detailed Technical Specifications
Below are the comprehensive technical parameters, presented in an HTML table to ensure clarity and precision.
| Parameter | Specification |
|---|---|
| Signal Shielding Range Radius | 10m – 25m (depending on base station field strength) |
| Total RF Transmit Power | 70W |
| Single Channel Power | 5W |
| Number of Channels | 14 |
| Target Frequencies | 2G, 3G, 4G, 5G, wireless remote control (customizable) |
| Signal Processing Mode | Analog plus noise processing |
| Protection Functions | Temperature alarm, standing wave protection |
| Cooling System | Intelligent heat dissipation, multiple super cooling fans, thick cooling teeth |
| Battery | Built-in 8.4V-30A, continuous use >1 hour |
| Charger | External |
| Antenna Type (Standard) | Omnidirectional (directional available upon request) |
| Mainframe Dimensions (LWH) | 410335205mm (without carrying handle) |
| Antenna Size | Length 200mm, Diameter 16mm |
| Antenna Configuration | High Gain omni antenna (14 sticks), Rod Antenna |
| Power Supply | AC: 110V~240V or built-in battery |
| Weight | As specified per unit (lightweight design) |
| Operating Temperature/Humidity | -20°C to +50°C / ≤80% |
| MTBF | Not less than 1000 hours |
| System Response Time | No more than 30 seconds (power on to normal operation) |
| Case Material | ABS plastic |
Frequency Band Parameters by Channel
The device supports a wide range of frequency bands, any one of which can be selected for customization. The following table details the specific frequencies and their corresponding channels.
| Channel | Signal Type | RF Power |
|---|---|---|
| CH1 | 315MHz | 5W |
| CH2 | 433MHz | 5W |
| CH3 | 758-803MHz | 5W |
| CH4 | 861-894MHz | 5W |
| CH5 | 925-960MHz | 5W |
| CH6 | 1805-1880MHz | 5W |
| CH7 | 2110-2170MHz | 5W |
| CH8 | 2620-2690MHz | 5W |
| CH9 | 3400-3600MHz | 5W |
| CH10 | 3600-3800MHz | 5W |
| CH11 | 1222-1232MHz | 5W |
| CH12 | 1565-1609MHz | 5W |
| CH13 | 2400-2500MHz | 5W |
| CH14 | 5150-5850MHz | 5W |
Installation, Operation, and Safety Notes
Antenna Installation Notes
Proper antenna installation is critical for optimal performance. First, screw the FRP antenna onto the ports marked on the mainframe one by one, ensuring the connection is firm and stable. After powering on, wait approximately one minute, then check the antenna interface again. If you notice an abnormal temperature rise, it may indicate poor contact between the feeder cable and the output connector. In this case, power off immediately, unscrew both the feeder cable and connector, then reconnect them carefully to avoid damage.
Operating Notes
When you receive the machine, unpack it carefully to inspect the appearance and accessories. Do not open the machine unnecessarily. Before powering up, verify that all antennas are connected and in good contact. It is strictly forbidden to operate the machine without the antenna connected, as this poses a risk of damage to the internal components.
Safety Notes
Safety is paramount during use. In rainy weather, do not open the box to prevent rain from entering the chassis and causing a short circuit. When the machine is powered on, avoid touching electrically charged parts during switch operation to prevent electric shock. The cooling fan blades rotate at high speed during operation; do not touch them with your hands to avoid injury. Finally, all installations require the use of the provided accessories and must be performed by professional engineers to ensure proper setup and safety.
Conclusion: The Ultimate Portable Signal Jammer for Tactical Operations
The MOPTECH portable suitcase interference device represents a pinnacle of efficiency in the field of signal jamming. Its ability to shield a radius of up to 25 meters, combined with a portable design and robust power output, makes it an indispensable tool for security professionals. The integrated analog and noise processing, coupled with intelligent heat dissipation and protection functions, ensure reliability in the most challenging conditions. By focusing on the omnidirectional antenna and customizable frequencies, this portable signal jammer delivers exceptional performance for detonation, counter-terrorism, and mobile security applications. Adhering to the detailed installation and safety notes maximizes both effectiveness and longevity, making the MOPTECH frequency jammer a trusted asset in critical operations.
