Unlocking RF Performance: The Wilkinson Power Divider Advantage
nnIn the high-stakes world of radio frequency (RF) engineering, signal integrity is paramount. The Wilkinson Power Divider stands as a cornerstone technology, a specialized RF splitter engineered to distribute high-frequency signals with remarkable precision, minimal loss, and superior isolation between output ports. Unlike generic frequency dividers, this 2-way splitter utilizes a unique resistive network to maintain perfect impedance matching at 50Ω while drastically reducing reflected power. This makes it an indispensable component for demanding modern networks, including 5G, LTE, and IoT systems.nnThe architecture of a Wilkinson power divider ensures that both output signals are perfectly balanced in amplitude and phase, a critical requirement for advanced applications. This balanced performance is essential for MIMO antennas, distributed antenna systems (DAS), and base stations, where even minor discrepancies can lead to degraded performance. By minimizing both insertion loss and intermodulation distortion, this divider by 2 guarantees reliable signal fidelity even in high-power, interference-prone environments.nn
Key Specifications and Technical Data
nnWhen selecting an RF splitter for critical infrastructure, understanding its precise electrical characteristics is non-negotiable. The table below details the performance parameters for our 2-way, 3-way, and 4-way models, ensuring you can choose the optimal configuration for your specific system.nn| Parameter | 2-Way Model | 3-Way Model | 4-Way Model |n| :— | :— | :— | :— |n| Model Number | MOP-MPS-738-50-XMF | MOP-MPS-738-50-XMF | MOP-MPS-738-50-XMF |n| Frequency Range | 698-3800 MHz | 698-3800 MHz | 698-3800 MHz |n| Distribution Loss | 3.0 dB | 4.8 dB | 6.0 dB |n| Insertion Loss | ≤0.9 dB | ≤1.2 dB | ≤1.2 dB |n| VSWR | ≤1.3:1 | ≤1.3:1 | ≤1.3:1 |n| Isolation (Between Ports) | ≥20 dB | ≥20 dB | ≥20 dB |n| Average Power Handling | 50 W | 50 W | 50 W |n| Intermodulation (PIM) | ≤ -153 dBc | ≤ -153 dBc | ≤ -153 dBc |n| RF Connector | 4.3-10 – Female | 4.3-10 – Female | 4.3-10 – Female |n| Impedance | 50Ω | 50Ω | 50Ω |n| Operating Temperature | -20°C to +70°C | -20°C to +70°C | -20°C to +70°C |n| Waterproof Rating | IP65 | IP65 | IP65 |nn

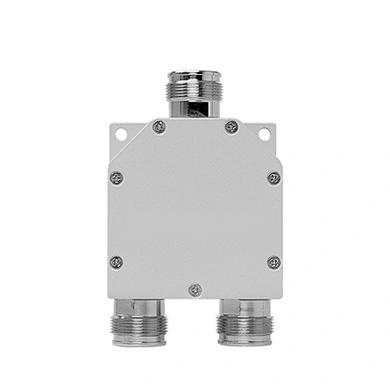

Why the 2-Way Splitter Excels in Modern Networks
nnOur 2-way splitter delivers industry-leading performance across an ultra-wide frequency range of 698-3800MHz, covering all key 5G sub-6GHz bands. Engineered for low distribution loss (3.0 dB) and ultra-low insertion loss (≤0.9 dB), this RF splitter maximizes signal efficiency while maintaining a superior Voltage Standing Wave Ratio (VSWR) of ≤1.3 to minimize reflections. The Wilkinson power divider design ensures high isolation (≥20 dB) between ports, preventing cross-talk in multi-antenna setups and ensuring clean signal paths. With robust average power handling of 50W and exceptional intermodulation suppression (≤-153 dBc), it excels in high-density RF environments where signal purity is non-negotiable.nn
Rugged Design for Demanding Deployments
nnBeyond its electrical prowess, this RF splitter is built to endure. The 4.3-10-Female connectors feature IP65 waterproofing, providing rugged durability for outdoor deployments in base stations, small cells, and distributed antenna systems. The low-PIM (Passive Intermodulation) construction ensures strict compliance with the most stringent cellular infrastructure standards, making it a reliable choice for telecom operators. Whether splitting signals for dual-polarized antennas or in-building DAS, its Wilkinson power divider technology guarantees consistent performance across a wide temperature range of -20°C to +70°C, ensuring unfailing operation in any climate.nn
Versatile Applications and Future-Proofing
nnThe compact design of this divider by 2, paired with its high-isolation outputs, makes it equally suitable for specialized applications such as UAV communications, public safety networks, and military RF systems. By choosing this Wilkinson power divider, users invest in a future-proofed component that seamlessly meets the evolving demands of 5G NR and legacy networks alike. In an era of rapid technological change, a frequency divider that guarantees unmatched signal fidelity, reliability, and low intermodulation is not just a component—it is the bedrock of a high-performance RF infrastructure.
