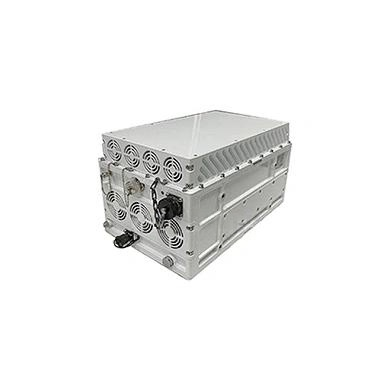

Unleashing the Power of Ku-Band: Introducing the MOPTECH 200W SSPA Series
nn
In the demanding world of satellite communications, radar systems, and high-precision broadcasting, signal integrity and range are everything. The newly developed MOPTECH SSPA series delivers a formidable 200W Solid State Power Amplifier (SSPA), operating in the 13-15GHz Ku-band, engineered to meet the most challenging application scenarios. With a rated output power of +53dBm, this SSPA ensures reliable long-distance signal transmission and robust coverage, even in the harshest environmental conditions. Whether you’re building a large ground station, a long-range radar system, or a high-precision broadcast transmission network, this amplifier provides the stable, high-power output required for peak system performance.
nn
Exceptional Performance and Signal Integrity in the 13-15GHz Range
nn
The MOPTECH SSPA is specifically designed to excel in the Ku-band frequency range of 13 to 15GHz. This makes it perfectly suited for high-precision RF applications where signal clarity and power are non-negotiable. The amplifier delivers a gain of ≥60dB, providing powerful signal amplification that ensures signal integrity and strength over long transmission distances. One of its most impressive features is its exceptional gain stability (±0.5dB/24h), which allows for consistent operation over extended periods, making it ideal for critical, non-stop applications like satellite communications and long-range radar.
nn
Advanced Gain Control and Low-Noise Design
nn
Beyond raw power, the SSPA offers precise gain control and flatness, supporting fine-tuned signal adjustments to meet a diverse range of application requirements. The gain can be adjusted from 0 to 25dB in precise 0.1dB steps. Furthermore, the amplifier maintains extremely low gain fluctuations across the entire frequency band (gain flatness of 0.5dB p-p), ensuring consistent signal transmission quality. Its low-noise and high-linearity design, with an IM3 of -26dBc and a noise power density of ≤-135dBW/4kHz, significantly reduces system noise, thereby improving overall signal quality and receiver sensitivity. This ensures clean, undistorted amplification for your most demanding transmissions.
nn
Technical Specifications at a Glance
nn
To provide a clear overview of the MOPTECH SSPA’s capabilities, all critical electrical and mechanical specifications are detailed in the table below.
nn
| Parameter | Value |
|---|---|
| Electrical Specifications | |
| Frequency Range | 13-15GHz |
| Rated Power | +53dBm / 200W |
| Gain Adjustment | 0-25dB (step 0.1dB) |
| Gain Flatness | 0.5dB p-p |
| Gain | ≥60dB |
| Gain Stability | ±0.5dB / 24h |
| IM3 | -26dBc |
| Spurious | ≤-60dBc |
| Noise Power Density | ≤-135dBW/4kHz |
| AM/PM | ≤3°/dB |
| Group Delay | ≤0.5nS (p-p) |
| Power Supply | 220VAC |
| Power Consumption | 1200W |
| Mechanical Specifications | |
| Dimensions | 350 x 220 x 160mm |
| Weight | 18Kg |
| RF Connectors | Input: SMA, Output: WR62 / BJ140 |
| Communication Interface | LAN / RS485 / RS422 / RS232 (optional) |
| Cooling | Forced Air Cooling |
nn
Conclusion: A Reliable Powerhouse for Critical Communications
nn
The MOPTECH SSPA series stands as a testament to advanced solid-state power amplifier design, offering a stunning combination of 200W output power, wide frequency agility, and high reliability. Its precise gain control, exceptional linearity, and rock-solid stability make it an indispensable component for any high-stakes RF system in the 13-15GHz Ku-band. From enabling clear satellite uplinks to powering long-range radar, this SSPA is built to deliver unwavering performance. By choosing the MOPTECH SSPA, engineers and system integrators secure a solution that guarantees outstanding signal quality, operational longevity, and the confidence that their critical communications are backed by world-class engineering.
