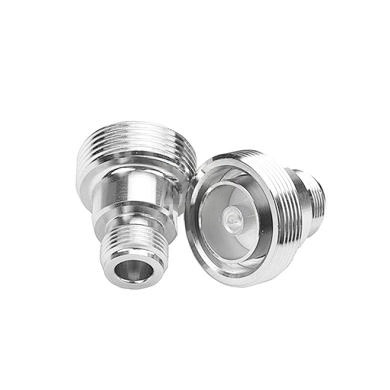

7/16 DIN Female to N Female Coaxial 50 Ohm Adapter: Precision and Reliability for RF Connections
In the demanding world of radio frequency (RF) engineering, every connection point is a potential source of signal loss, reflection, or interference. Achieving flawless performance requires components that offer both precision and durability. The 7/16 DIN female to N female coaxial 50 ohm adapter is engineered to meet these stringent requirements, providing a seamless bridge between two of the most common interface standards in telecommunications. Whether you are deploying a new base station, upgrading a wireless network, or conducting critical lab tests, this adapter ensures that your signal remains clean, strong, and consistent.
Uncompromising Electrical Performance of the 7/16 DIN Female to N Female Coaxial 50 Ohm Adapter
The core of any high-quality RF adapter is its ability to transmit power with minimal degradation. The 7/16 DIN female to N female coaxial 50 ohm adapter is designed with a characteristic impedance of exactly 50 ohms, which is the standard for most wireless and data communication systems. This precise matching ensures maximum power transfer and minimizes signal reflections. Furthermore, the adapter operates across a broad frequency range from DC to 3 GHz, making it suitable for a wide variety of applications, from legacy 2G/3G systems to modern 4G LTE networks and emerging 5G deployments.
The electrical specifications of this adapter are a testament to its advanced engineering. Insertion loss, which measures the signal power lost as it passes through the adapter, is exceptionally low at ≤0.10 dB across the DC to 2.7 GHz band. This means that virtually all the power entering the adapter is delivered to the other side. The Voltage Standing Wave Ratio (VSWR), an indicator of how well the adapter is matched to the transmission line, is also outstanding. At critical frequency bands, the VSWR is ≤1.08 from 0.8 to 1.0 GHz and ≤1.10 from 1.7 to 2.7 GHz. These low VSWR values indicate that very little signal power is reflected back towards the source. Additionally, the Passive Intermodulation (PIM) performance is exceptional, rated at ≤ -155 dBc. Low PIM is crucial in modern multi-carrier systems to prevent interference and maintain network clarity.
Robust Construction of the 7/16 DIN Female to N Female Coaxial 50 Ohm Adapter
The mechanical and material design of the 7/16 DIN female to N female coaxial 50 ohm adapter is as important as its electrical characteristics. This adapter serves as a conversion interface between a 7/16 DIN female connector and an N-Type female connector, a common necessity when integrating equipment from different vendors or upgrading infrastructure. The internal components are crafted from premium materials to ensure longevity and consistent performance. The inner conductor pin and socket are made from brass and tin-bronze, respectively, both with silver plating to enhance conductivity and resist corrosion. The main body and outer conductor are constructed from brass with a tri-metal plating for superior durability and shielding.
To provide reliable insulation, the adapter uses polytetrafluoroethylene (PTFE), a material known for its excellent dielectric properties and thermal stability, ensuring the 50 ohm impedance is maintained. The gasket is made from durable silicone rubber, and the nut is brass with a nickel plating to withstand the torque of repeated installations. This thoughtful combination of materials allows the adapter to endure a harsh operating environment.
Durability and Environmental Specifications
RF components in the field are exposed to extreme weather, vibration, and frequent handling. The 7/16 DIN female to N female coaxial 50 ohm adapter is built to survive these conditions. It is rated to withstand a minimum of 500 mating cycles, ensuring a long service life even in busy installations. The adapter has passed rigorous thermal shock and vibration tests according to MIL-STD-202 standards, verifying its mechanical robustness. Its operating temperature range is from -40°C to +85°C, allowing for use in almost any climate, while an IP67 sealing class guarantees protection against dust and temporary immersion in water. Furthermore, the adapter is fully RoHS compliant, meeting international standards for environmental safety.
Technical Specifications of the 7/16 DIN Female to N Female Coaxial 50 Ohm Adapter
| Parameter | Specification |
|---|---|
| Model | MOP-AD-NF/DF |
| Description | N Female to 7/16 Female Adapter |
| Component | Material & Plating |
|---|---|
| Inner Conductor Pin | Brass / Silver Plating |
| Inner Conductor Socket | Tin-bronze / Silver Plating |
| Body & Outer Conductor | Brass / Tri-metal Plating |
| Insulator | PTFE |
| Gasket | Silicone Rubber |
| Nut | Brass / Nickel Plated |
| Electrical Parameter | Specification / Condition |
|---|---|
| Characteristic Impedance | 50 Ohm |
| Frequency Range | DC ~ 3 GHz |
| Insulation Resistance | ≥5000 MΩ |
| Center Contact Resistance | ≤1.00 mΩ |
| Outer Contact Resistance | ≤1.00 mΩ |
| Dielectric Strength | 2500 V rms |
| Working Voltage / Return Loss (dB) | 5000 V rms / 0-1 GHz: >35; 1-2.7 GHz: >29 |
| Insertion Loss @ DC-2.7 GHz | ≤0.10 dB |
| VSWR @ 0.8-1.0 GHz | ≤1.08 |
| VSWR @ 1.7-2.7 GHz | ≤1.10 |
| PIM3 | ≤ -155 dBc |
| Environmental / Mechanical Parameter | Specification / Condition |
|---|---|
| Durability (Matings) | ≥500 cycles |
| Thermal Shock Test | MIL-STD-202F, Method 107G, Condition D |
| Vibration Test | MIL-STD-202, Method 204, Condition B |
| Temperature Range | -40 ~ +85°C |
| RoHS Compliance | Yes |
| Sealing Class | IP67 |
Conclusion: The Trusted Choice for High-Performance RF Connections
When your project demands a reliable and high-performing connection, the 7/16 DIN female to N female coaxial 50 ohm adapter stands out as the premier solution. With its exceptional electrical performance, robust material construction, and proven environmental durability, it provides a level of signal integrity that is essential for modern communication systems. Whether used in a critical base station, a dense wireless network, or a precise laboratory environment, this 50 ohm adapter offers the peace of mind that comes from a high-quality, well-engineered component. For professionals who cannot compromise on signal excellence, this adapter is the definitive choice.
