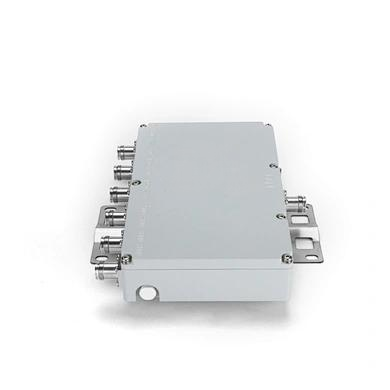

Optimize 5G Infrastructure with a High-Performance 6 Way Combiner
nn
In the rapidly evolving landscape of 5G communication, achieving efficient signal integration and stable transmission is paramount. Our advanced 6 way combiner, also known as an RF combiner, stands as the cornerstone of modern network design. This device is engineered specifically for 5G applications, offering six distinct channels that precisely cover a wide spectrum of frequency bands—from low-band to high-band. This comprehensive coverage ensures compatibility with diverse 5G signal requirements, enabling seamless multi-band operation.
nn
At the heart of this combiner are its premium components, including robust 4.3-10 female connectors. These connectors provide a stable and reliable physical connection, minimizing signal degradation and ensuring lossless transmission. The performance metrics of this device are exceptional. With a low insertion loss, signal energy loss is kept to an absolute minimum, optimizing system efficiency. High isolation values effectively prevent mutual interference between signals, preserving signal purity even in dense frequency environments. These characteristics make the combiner ideal for demanding base station and small cell deployments where reliability is non-negotiable.
nn
Unmatched Reliability: Lightning Protection and Environmental Resilience
nn
Our 6 way combiner is built to withstand the harshest conditions. It features powerful lightning protection capable of handling up to 10kA, 10/350μs pulse lightning strikes, safeguarding critical equipment and ensuring continuous operation during electrical storms. The device achieves an IP67 protection rating, meaning it is fully sealed against dust and can be submerged in water up to one meter for 30 minutes. This makes it suitable for both indoor and outdoor installations, from clean telecom rooms to exposed rooftop sites. Its operating temperature range of -20°C to +65°C and relative humidity tolerance of 5% to 95% guarantee stable performance across diverse climates. Choosing this combiner means securing an advanced communication solution that empowers you to seize the initiative in the 5G era, delivering a high-speed and stable communication experience.
nn
Technical Specifications
nn
Electrical Specifications
nn
| Parameter | Port 1 | Port 2 | Port 3 | Port 4 | Port 5 | Port 6 |
|---|---|---|---|---|---|---|
| Frequency Range (MHz) | 698-806 | 824-960 | 1710-1880 | 1920-2170 | 2500-2700 | 3300-3800 |
| Insertion Loss | 0.5 dB (Max.), 0.3 dB (Typ.) | |||||
| Return Loss / VSWR | >50 dB (Isolation) | |||||
| Impedance | 50 Ohm | |||||
| Input Power PIM (IM3) | DC/AISG By-pass (max, 3000 mA) | |||||
nn
Environmental Specifications
nn
| Parameter | Value |
|---|---|
| Lightning Protection | 10 KA; 10/350 μs pulse |
| Operating Temperature | -20 °C to +65 °C |
| Storage Temperature | -40 °C to +85 °C |
| Environment Humidity | 5% to 95% |
| Application | Indoor or outdoor, IP 67 |
nn
Mechanical Specifications
nn
| Parameter | Value |
|---|---|
| Connectors | 7 pcs 4.3-10 Female |
| Colour | Grey |
| Dimensions (Without Connectors) | 290 x 170 x 50 mm |
nn
This 6 way combiner represents a leap forward in RF combiner technology. By integrating multiple frequency bands into a single, robust unit, it simplifies network architecture while enhancing performance. Whether you are upgrading existing infrastructure or deploying new 5G sites, this combiner delivers the reliability, protection, and efficiency needed to meet modern communication demands. Invest in a solution that not only meets today’s challenges but also prepares your network for future advancements in wireless technology. With its superior specifications and rugged design, this combiner ensures you maintain a competitive edge, enabling uninterrupted, high-speed connectivity for years to come.
