Unlocking Reliable Signal Distribution: The 600MHz–6500MHz Power Divider
nnIn the ever-evolving landscape of telecommunications and wireless infrastructure, the demand for robust, high-performance components has never been greater. Whether you are deploying a 5G network, enhancing indoor coverage, or managing a distributed antenna system (DAS), the backbone of your signal integrity lies in the power dividers you choose. The 600MHz–6500MHz Power Divider is engineered to meet these rigorous demands, offering exceptional performance across a wide frequency spectrum while maintaining low loss and high reliability. Understanding its specifications is key to ensuring seamless signal distribution in critical applications, from cellular base stations to public safety networks.nn
Wide Frequency Coverage for Modern Networks
nnThis power divider operates seamlessly from 600 MHz up to 6500 MHz, covering essential bands for LTE, 5G NR, Wi-Fi, and more. The broad frequency range ensures compatibility with existing infrastructure while future-proofing deployments for emerging technologies. Specifically, it delivers optimized performance within two sub-bands: 600–4000 MHz and 4000–6500 MHz, allowing engineers to tailor their designs for diverse environments.nn
Critical Performance Specifications
nnTo guarantee reliable operation, this device boasts precise electrical characteristics. The insertion loss remains minimal at ≤0.4 dB in the lower band and ≤0.7 dB in the higher band, preserving signal strength over long cable runs. The distribution loss is fixed at 3 dB, typical for a two-way divider, while the Voltage Standing Wave Ratio (VSWR) is maintained at ≤1.3:1 for 600–4000 MHz and ≤1.5:1 for 4000–6500 MHz, ensuring excellent impedance matching and reduced reflections.nn| Parameter | 600–4000 MHz | 4000–6500 MHz |n| :— | :— | :— |n| Frequency Range | 600 MHz – 4000 MHz | 4000 MHz – 6500 MHz |n| Insertion Loss | ≤0.4 dB | ≤0.7 dB |n| Distribution Loss | 3 dB | 3 dB |n| VSWR | ≤1.3:1 | ≤1.5:1 |n| Power Handling | 300 W | 300 W |n| Connector Type | N-Female | N-Female |n| Impedance | 50 Ω | 50 Ω |n| Waterproof Rating | IP65 | IP65 |n| Working Temperature | -35°C to +60°C | -35°C to +60°C |nn
Mechanical and Environmental Resilience

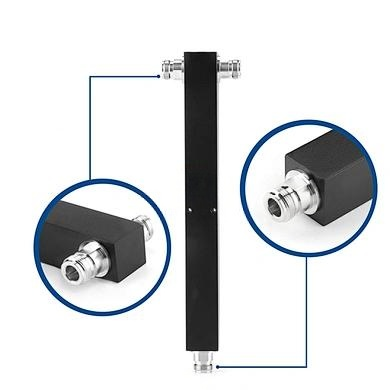

nnBuilt for both indoor and outdoor deployments, this power divider features a robust N-Female connector interface, offering secure, weather-resistant connections. With an IP65 waterproof rating, it withstands dust ingress and low-pressure water jets, making it ideal for rooftop installations or exposed equipment cabinets. The operating temperature range of -35°C to +60°C ensures stable performance in extreme climates, from freezing winters to scorching summers. Its 50 Ω impedance standard ensures seamless integration with coaxial cables and other RF components, eliminating the need for additional matching networks.nn
Why Choose the 600MHz–6500MHz Power Divider?
nnThe reliability of any RF system hinges on the quality of its passive components. This power divider is meticulously designed to deliver low insertion loss and superior VSWR across its entire operational bandwidth, directly contributing to improved signal coverage and reduced interference. The 300 W power handling capability accommodates high-power transmitters common in macro cell sites and enterprise DAS systems. Furthermore, the consistent 3 dB distribution loss ensures balanced signal splitting, critical for applications like antenna arrays or sectorized coverages.nn
Applications in Modern Infrastructure
nnFrom small cell backhaul to public safety radio systems, this component excels in scenarios where signal integrity is non-negotiable. In distributed antenna systems, it enables efficient splitting of signals to multiple antennas, optimizing coverage in stadiums, airports, and office complexes. For 5G network densification, its high-frequency performance up to 6500 MHz supports millimeter-wave and mid-band deployments. The IP65 rating and wide temperature tolerance also make it suitable for outdoor small cells and remote radio heads (RRHs) exposed to harsh environmental conditions.nn
Conclusion
nnSelecting the right 600MHz–6500MHz Power Divider is a critical decision for any RF engineer. With its exceptional electrical performance—featuring low insertion loss, tight VSWR control, and robust power handling—this component ensures that your signal distribution remains efficient and reliable. The combination of wide frequency coverage, durable construction, and IP65 waterproofing makes it a versatile solution for both current and next-generation networks. Whether you are upgrading an existing system or designing a new one, this power divider provides the performance and longevity required to maintain seamless connectivity in demanding environments. Trust in its specifications to deliver consistent results, from the first installation to years of continuous operation.
