Understanding the 3×3 Hybrid: A Key Component for Modern Networks
n
In the fast-evolving world of telecommunications, the demand for high-performance, reliable components has never been greater. At the heart of many advanced signal distribution systems lies a crucial device: the 3×3 hybrid. This component plays an integral role in combining or splitting radio frequency signals across multiple bands, ensuring seamless connectivity for both indoor and outdoor applications. Whether you are designing a complex in-building coverage solution or a robust outdoor macro network, understanding the specifications of a quality 3×3 hybrid is essential for optimizing system performance and minimizing signal loss.
n

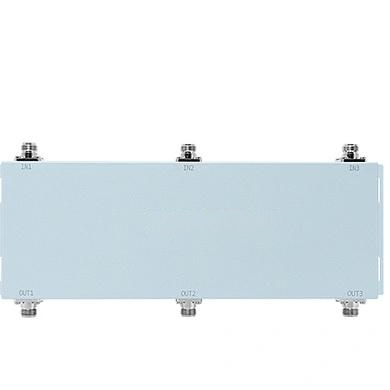

When evaluating a 3×3 hybrid, key parameters such as insertion loss, isolation, and intermodulation distortion (IMD) directly impact network efficiency. A well-engineered hybrid can reduce interference, improve signal clarity, and support higher power levels, making it a cornerstone for modern 4G LTE and 5G deployments. The model discussed here, Part No. MOP-HC-738-500-3/3-NF, exemplifies the blend of wideband capability and rugged design required for today’s demanding environments. By delving into its specifications, we can appreciate how this component meets the rigorous standards of the telecommunications industry.
nn
Electrical Specifications of the 3×3 Hybrid: Performance at a Glance
n
The electrical performance of any hybrid coupler defines its utility in a network. For the MOP-HC-738-500-3/3-NF, a focus on broad frequency coverage and low signal degradation makes it a versatile choice. The following table outlines the critical electrical parameters that system engineers must consider when integrating this 3×3 hybrid into their designs.
nn
| Parameter | Value | Notes |
|---|---|---|
| Frequency Range | 698 – 3800 MHz | Wideband coverage for multi-band systems |
| Insertion Loss | 5.0 +/- 1.0 dB | Typical variation across the band |
| Isolation | ≥ 20 dB | Minimizes cross-port interference |
| Return Loss / VSWR | ≤ 1.25 / -19 dB @ 698-2700 MHz ≤ 1.30 / -18 dB @ 2700-3800 MHz |
Excellent impedance matching |
| Intermodulation (IMD) | ≤ -160 dBc | With 2×20W test tones |
| Impedance | 50 Ω | Standard for RF systems |
| Input Power | ≤ 500 W | High power handling capability |
nn
Environmental and Mechanical Durability for Reliable Operation
n
Beyond electrical performance, the physical and environmental resilience of a 3×3 hybrid determines its longevity in the field. The MOP-HC-738-500-3/3-NF is engineered to withstand harsh conditions while maintaining signal integrity. Below are the environmental and mechanical specifications that ensure consistent operation in diverse climates and installations.
nn
| Parameter | Specification | Details |
|---|---|---|
| Operating Temperature | -20°C to +65°C | Suitable for most outdoor environments |
| Storage Temperature | -40°C to +85°C | Robust for extreme climate storage |
| Relative Humidity | 5% – 95% | Non-condensing conditions covered |
| Application Environment | Indoor or Outdoor (IP67 rated) | Weatherproof for direct exposure |
| Connector Type | N Female | Standard, durable RF interface |
| Dimensions (mm, without connectors) | 376.9 x 126.6 x 39 | Compact form factor for integration |
nn
Why Choose This 3×3 Hybrid for Your System?
n
The combination of a wide frequency range from 698 MHz to 3800 MHz, low return loss, and high isolation makes this 3×3 hybrid an ideal candidate for applications requiring minimal signal degradation. The IMD performance, at ≤ -160 dBc, ensures that even in high-power scenarios (up to 500W), passive intermodulation remains negligible—a critical factor for dense urban networks where interference can cripple throughput. Furthermore, the IP67 rating allows for direct outdoor mounting without additional enclosures, simplifying installation and reducing costs.
n
As network demands continue to escalate with the rollout of 5G and the expansion of LTE bands, components like this 3×3 hybrid provide the reliability and performance necessary to maintain high-quality service. Its robust electrical and mechanical design ensures that it not only meets but exceeds the expectations of system integrators and operators alike. By selecting a well-specified hybrid, you are investing in a solution that enhances signal distribution while minimizing maintenance and downtime.
n
In conclusion, the MOP-HC-738-500-3/3-NF represents a balanced approach to hybrid coupler design, combining wideband agility with exceptional linearity and durability. Whether used in a distributed antenna system (DAS), a base station combining network, or a private cellular infrastructure, this 3×3 hybrid delivers consistent, high-fidelity performance. For any project requiring a reliable, high-power, multi-band hybrid, this component stands as a proven choice that aligns with the rigorous technical standards of today’s telecommunications landscape.
