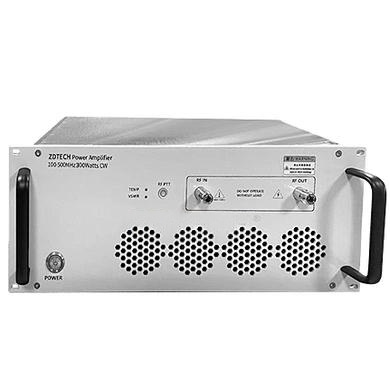

Introducing the High-Performance RF Power Amplifier Module
n
In the world of modern communications, signal integrity and power reliability are non-negotiable. The RF power amplifier module discussed here is a testament to advanced engineering, designed to meet the rigorous demands of industrial, commercial, and military applications. This versatile module covers a broad frequency spectrum, including 100-500 MHz, 500-2500 MHz, and 2500-6000 MHz, offering exceptional flexibility. Whether you need a dedicated narrowband solution or a wideband powerhouse, this RF power amplifier module can be tailored to your specific needs, providing a customizable platform that integrates seamlessly into complex systems. Its robust construction, advanced cooling, and intelligent protection features ensure longevity and consistent performance, making it a reliable choice for high-power applications where failure is not an option.
n
Comprehensive Specifications and Features of the RF Power Amplifier Module
n
To fully appreciate the capabilities of this RF power amplifier module, it is essential to review its technical parameters. The following table presents the detailed specifications, ensuring clarity and completeness.
nn
| Parameter | Specification |
|---|---|
| Frequency Range | 100-500 MHz / 500-2500 MHz / 2500-6000 MHz |
| Gain | ≥55 dB |
| Maximum Input Power | ≤+5 dBm |
| Saturated Output Power | 300W |
| In-Band Gain Flatness | ≤3 ±1 dB |
| Input Power | ≤2 ±2W |
| Temperature Protection | ≥80°C (auto cut-off, LED indicator) |
| Input VSWR | ≤1.8 |
| Clutter Suppression | ≥65 dBc |
| Harmonic Suppression | ≤-10 dBc |
| RF Connectors (Input/Output) | N-Type (N-K) |
| PTT Switch Port | Amplifier off by default; press to turn on |
| Operating Voltage | ~220V AC |
| Power Consumption | ≤1200W (with air cooling) |
| Dimensions (without connector) | 600 × 482 × 180 mm |
| Operating Temperature | -25°C to +55°C |
nn
Advanced Protection and Cooling Systems
n
One of the standout features of this RF power amplifier module is its sophisticated thermal management. Equipped with an advanced air cooling system, the module effectively dissipates heat, ensuring stable operation even under high-power conditions. The built-in temperature protection system automatically disconnects power when the internal temperature reaches or exceeds 80°C, safeguarding the amplifier from thermal damage. An LED indicator on the front panel alerts users to the protection status, allowing for quick diagnostic and intervention. This proactive approach extends the operational life of the RF power amplifier module, making it a durable solution for demanding environments.
n
Customization and Integration Flexibility
n
MOPTECH’s module-level building solutions offer unparalleled flexibility. You can use this RF power amplifier module as a standalone power amplifier or integrate it into a larger, more complex system. The compact dimensions (600×482×180mm) and rugged design facilitate easy mounting and connectivity. With full-gain, self-contained architecture, the module supports both broadband and band-specific variants up to 6 GHz. Customers are encouraged to customize the module based on their unique requirements, and MOPTECH provides comprehensive support to ensure optimal performance and seamless integration.
n
Reliable Connectivity and High-Power Output
n
Stable connections are critical in high-power RF applications. This module utilizes N-type connectors for both input and output, known for their durability and low signal loss. The control switch enhances protection by allowing users to manage power output effectively. With a gain exceeding 55 dB and a saturated output power of 300W, this RF power amplifier module is ideally suited for high-power applications that demand efficiency and reliability. Its wide operating temperature range (-25°C to +55°C) ensures consistent performance in extreme climates, from arctic cold to desert heat.
n
Conclusion
n
In summary, this RF power amplifier module represents a perfect blend of power, precision, and protection. Its wide frequency coverage, high gain, and robust thermal management make it a top choice for professionals seeking a customizable and durable amplification solution. Whether for industrial, commercial, or military use, this module delivers exceptional performance and longevity. For further consultation or to discuss your specific needs, do not hesitate to contact MOPTECH, where expert support is always available to help you maximize the potential of your RF systems.
