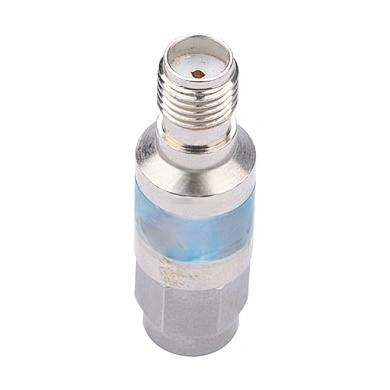

Mastering RF Signal Control with the DC-6GHz 2W Attenuator SMA Male to Female
nn
In the demanding world of radio frequency (RF) signal processing, precision and reliability are paramount. Whether you are fine-tuning a communication network or conducting sensitive laboratory experiments, controlling signal strength is non-negotiable. Enter the DC-6GHz 2W attenuator SMA male to female—a compact yet powerful tool designed to bring unmatched accuracy and stability to your RF chain. This versatile component, offering attenuation values from 1 dB to 50 dB, is engineered to meet the rigorous demands of modern RF systems, ensuring your signals are exactly where they need to be, without distortion or loss.
nn
Wide Frequency Coverage and Power Handling
n
One of the standout features of this attenuator is its broad frequency range, spanning from DC to 6 GHz. This makes it an ideal choice for a multitude of applications, including telecommunications, broadcast systems, and test equipment. The device is rated for a maximum input power of 2 watts (2W), allowing it to handle a variety of signal strengths without performance degradation. This combination of wide bandwidth and moderate power handling ensures that the attenuator can be deployed in both high-frequency digital circuits and traditional analog RF paths, offering exceptional flexibility for engineers and technicians.
nn
Precision Attenuation for Accurate Signal Control
n
At the heart of the DC-6GHz 2W attenuator is its core strength: precise attenuation. The device supports a wide range of fixed attenuation values, including 1 dB, 2 dB, 3 dB, 5 dB, 6 dB, 10 dB, 20 dB, 30 dB, 40 dB, and 50 dB. This variety allows for exact signal level adjustments to match system requirements. The attenuation tolerance is impressively tight, ranging from ±0.3 dB to ±1.0 dB depending on the value, ensuring that your signal adjustment is both accurate and repeatable. Furthermore, with a return loss of ≥19 dB and a voltage standing wave ratio (VSWR) of ≤1.25, this attenuator minimizes signal reflections and maintains excellent impedance matching, safeguarding signal integrity across the entire frequency range.
nn
Critical Specifications at a Glance
nn
| Parameter | Specification |
|---|---|
| Name | Attenuator |
| Frequency Range | DC – 6000 MHz |
| Attenuation Values | 1, 2, 3, 5, 6, 10, 20, 30, 40, 50 dB |
| Attenuation Tolerance | ±0.3 to ±1.0 dB |
| Return Loss | ≥19 dB |
| VSWR | ≤1.25 |
| Intermodulation Products | ≤ -120 dBc (with 2 x +43 dBm) |
| Maximum Input Power | 2 W |
| Operating Temperature | -40°C to +100°C |
| Relative Humidity | 5% to 95% |
| Impedance | 50 Ω |
| Size | 26 × 9 mm |
| Weight | 18 g |
| Connector Type | SMA Male to Female |
| Ingress Protection | IP65 |
| Color | Black or Silver |
nn
Robust Connector and Environmental Resilience
n
The attenuator features an SMA male to female connector interface, widely recognized for its excellent electrical performance and mechanical stability. This standard interface ensures easy integration with a vast array of RF components, from cables to antennas and test instruments. Beyond connectivity, the device is built to withstand harsh conditions. With an operating temperature range of -40°C to +100°C and a relative humidity tolerance of 5% to 95%, it performs reliably in everything from freezing outdoor installations to humid indoor environments. The IP65 ingress protection rating adds an extra layer of durability, shielding the internal components from dust and water jets, making it suitable for field deployments.
nn
Compact Design Meets Versatile Application
n
Measuring just 26×9 mm and weighing only 18 grams, the DC-6GHz 2W attenuator SMA male to female is exceptionally compact and lightweight. This small footprint allows for seamless installation in space-constrained enclosures, PCB boards, or portable test setups without adding unnecessary bulk. Despite its size, it delivers robust performance across a wide range of applications. Whether you are optimizing signal levels in a communication base station, conducting precise attenuation in a research laboratory, or balancing signal paths in a broadcast system, this attenuator serves as a reliable and indispensable partner for signal control.
nn
Conclusion: Your Go-To Solution for Reliable Attenuation
n
In summary, the DC-6GHz 2W attenuator SMA male to female combines wide frequency coverage, precise attenuation, and robust construction in a miniature package. Its ability to deliver accurate signal reduction—from 1 dB all the way to 50 dB—with minimal reflection and high return loss makes it a cornerstone component for any RF engineer. With durable SMA connectors, environmental resilience, and a compact form factor, it stands ready to tackle the challenges of both field installations and laboratory testing. For those seeking a dependable and high-performance signal control solution, this attenuation DC-6GHz 2W attenuator with SMA male to female is an excellent choice that will consistently meet and exceed expectations.
