Understanding the MIMO Omni Antenna: A Professional’s Guide to Indoor Coverage
When it comes to ensuring seamless wireless communication in indoor environments, the MIMO Omni Antenna stands out as a top-tier solution. Designed for professional use, this high-performance omnidirectional ceiling antenna offers unmatched reliability and coverage for modern communication networks. Whether you’re managing a bustling shopping mall, a corporate office, or a luxury hotel, this antenna delivers the robust signal strength and clarity that today’s devices demand.
A MIMO Omni Antenna is not just any standard antenna; it’s a sophisticated piece of equipment engineered to support multiple frequency bands, including GSM, CDMA, LTE, and the latest 5G networks. Operating across 698-960 MHz and 1710-4000 MHz, it ensures compatibility with a wide range of communication devices. With a voltage standing wave ratio (VSWR) of ≤1.8 across all bands and a standard 50Ω impedance, this antenna integrates seamlessly into existing systems, making it an essential component for indoor signal coverage. Its dual-band design guarantees that both low-frequency and high-frequency signals are distributed evenly, eliminating dead zones and enhancing network performance.
Key Features of the MIMO Omni Antenna
The MIMO Omni Antenna is built to deliver exceptional performance in diverse indoor settings. Its vertical polarization and 360° horizontal omnidirectional beam provide uniform coverage without blind spots, ensuring every corner of a room receives optimal signal strength. With a gain ranging from 2 to 5 dBi, this antenna amplifies network speed and call quality, making it ideal for high-traffic areas where connectivity is critical.
One of the standout characteristics of this MIMO Omni Antenna is its support for MIMO (Multiple Input, Multiple Output) dual-channel design. This technology allows for simultaneous data transmission and reception, significantly boosting throughput and reducing interference. The third-order intermodulation (IM3) rating of ≤-150 dBc further enhances its anti-interference capabilities, ensuring clear and stable communication even in environments with high electronic noise. Additionally, the antenna supports a maximum input power of 50W and includes DC ground lightning protection, safeguarding against power surges and ensuring reliable operation in all conditions.
Design and Installation Benefits

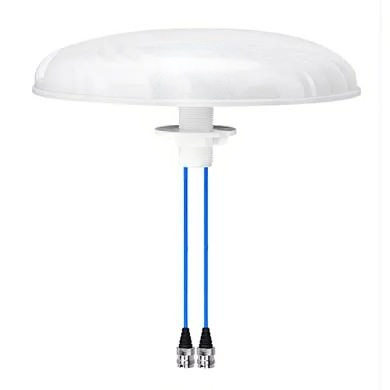

The MIMO Omni Antenna boasts a compact and lightweight design, measuring Φ220*45 mm and weighing just 0.5 kg. This makes it easy to install on ceilings without adding structural stress. The durable ABS housing withstands extreme temperatures ranging from -40°C to +60°C, making it suitable for both heated indoor spaces and cooler environments like warehouses or basements. The standard 2×N/Mini DIN female connectors simplify the installation process, allowing for quick integration with existing cabling systems. Professionals appreciate how this antenna can be mounted discreetly, blending into ceiling designs while providing powerful, dead-angle-free coverage.
Technical Specifications of the MIMO Omni Antenna
For engineers and system integrators, understanding the precise technical parameters of the MIMO Omni Antenna is crucial for planning and deployment. The following table outlines the key electrical and mechanical specifications.
| Parameter | Value |
| — | — |
| Frequency Range (MHz) | 698-960 / 1710-4000 |
| VSWR | ≤1.8 |
| Input Impedance (Ω) | 50 |
| Polarization | Vertical |
| Gain (dBi) | 2 (698-960 MHz) / 3~5 (1710-4000 MHz) |
| Horizontal -3dB Beamwidth (°) | 360 |
| Vertical -3dB Beamwidth (°) | 85~35 |
| Intermodulation IM3 (2x33dBm) | ≤-150 dBc |
| Max Input Power (W) | 50 |
| Connector Type | 2xN/Mini DIN Female |
| Lightning Protection | DC Ground |
| Antenna Dimension (mm) | Φ220 x 45 |
| Weight (kg) | 0.5 |
| Cover Material | ABS |
| Operating Temperature (°C) | -40 to +60 |
These specifications confirm that the MIMO Omni Antenna is a professional-grade solution optimized for maximum performance. Its low VSWR ensures minimal signal reflection, while the high gain across the upper frequency band provides superior coverage in compact spaces. The antenna’s ability to handle intermodulation distortion at such low levels makes it ideal for dense deployments where multiple signals coexist.
Applications and Benefits in Real-World Scenarios
The MIMO Omni Antenna excels in a variety of indoor applications. In shopping malls, it covers large open areas with consistent signal strength, supporting thousands of simultaneous connections for shoppers and staff. In office buildings, it ensures clear voice calls and fast data transfers, boosting productivity. Hotels benefit from the antenna’s ability to provide reliable Wi-Fi and cellular coverage in rooms, lobbies, and conference halls. The omnidirectional pattern eliminates the need for multiple directional antennas, simplifying installation and reducing costs.
Moreover, the MIMO Omni Antenna is a future-proof investment. As 5G networks continue to expand, its wide frequency range ensures compatibility with emerging technologies. The MIMO technology enhances spectral efficiency, allowing for higher data rates without requiring additional bandwidth. This makes the antenna an ideal choice for smart buildings, IoT deployments, and enterprise networks that demand high performance and reliability.
Conclusion and Final Thoughts
Choosing the right indoor antenna is critical for achieving optimal wireless coverage, and the MIMO Omni Antenna delivers on all fronts. From its professional-grade design to its robust technical parameters, this antenna ensures dead-angle-free uniform coverage and greatly boosts network speed and call quality. Whether you’re upgrading an existing system or deploying a new one, the MIMO Omni Antenna provides the versatility and performance needed for modern communication environments. Its lightweight construction, easy installation, and compatibility with GSM, CDMA, LTE, and 5G standards make it the top choice for indoor signal coverage in shopping malls, office buildings, hotels, and beyond. Embrace the power of the MIMO Omni Antenna and transform your indoor network into a seamless, high-speed communication hub.
