Introduction to the RF Attenuator: Precision and Performance
nnWhen working with radio frequency (RF) systems, signal control is paramount. Whether you are a seasoned engineer testing sensitive equipment or a technician ensuring compliance in a laboratory, an RF attenuator is an essential tool. This device is designed to reduce the power of a signal without distorting its waveform, providing a clean and predictable reduction. Our featured RF attenuator is engineered for demanding environments, offering robust performance across a wide frequency range. Its ability to maintain signal integrity while withstanding harsh conditions makes it a reliable choice for professionals.nn
Key Technical Specifications of the RF Attenuator
nnUnderstanding the precise capabilities of this device is crucial for integration into any system. The table below outlines all critical technical parameters, ensuring you have the data needed for accurate application. These specifications demonstrate the attenuator’s versatility and high-quality construction.nn
| Parameter | Value |
|---|---|
| Couple Frequency Range (MHz) | DC-3000 MHz |
| Attenuates Value (dB) | 1-40 dB |
| Attenuates Tolerance (dB) | ±0.75 to ±1.2 dB |
| Return Loss (dB) | ≥19 dB |
| VSWR (dB) | ≤ 1.25 dB |
| Intermodulation Products (DBMS) | ≤ -120 dB (with 2 x 43dBm) |
| Maximum Input (W) | 10 W |
| Operating Temperature (°C) | -40°C to +100°C |
| Relative Humidity (%) | 5% to 95% |
| Impedance (Ω) | 50 Ω |
| Size (mm) | 47.5 x 16.5 x 16.5 mm |
| Weight (g) | 18 g |
| Connector Type | SMA Male to SMA Female |
| Ingress Protection | IP65 |
| Color | Black |
nn
Understanding Attenuates Value and Precision
nnThe attenuates value ranges from 1 to 40 dB, offering a wide adjustability for various signal reduction needs. With a precise tolerance of ±0.75 to ±1.2 dB, this component ensures consistent performance, critical for calibration and measurement applications. This level of accuracy means you can rely on the signal drop being exactly as specified, reducing error margins in your testing or system operation.nn
Durability and Environmental Resilience
nnBuilt to endure extreme conditions, this attenuator operates flawlessly from -40°C to +100°C. Its IP65 ingress protection rating guarantees resistance against dust and water jets, making it suitable for outdoor or industrial settings. The compact size of 47.5 x 16.5 x 16.5 mm and lightweight design of just 18 grams facilitate easy integration into crowded panels or portable test kits.nn
Performance Metrics: Return Loss and VSWR
nnThe device boasts a return loss of ≥19 dB and a Voltage Standing Wave Ratio (VSWR) of ≤ 1.25 dB. These figures indicate excellent impedance matching and minimal signal reflection, which is vital for preserving signal quality in RF systems. Low VSWR reduces power loss and ensures that the attenuator does not introduce unwanted noise or standing waves that could interfere with adjacent components.nn
Intermodulation and Input Handling
nnWith intermodulation products as low as ≤ -120 dBm (when tested with 2 x 43dBm carriers), this attenuator maintains signal purity even under high-power conditions. The maximum input power of 10 Watts allows it to handle substantial signals without degradation. Additionally, the impedance of 50 Ohms aligns with standard RF system configurations, ensuring seamless connectivity and compatibility.nn
Connector Design and Practical Usage

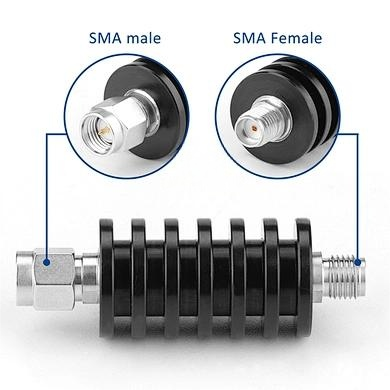

nnEquipped with SMA male to SMA female connectors, this attenuator is designed for easy insertion into coaxial lines. The black anodized finish not only provides a professional aesthetic but also adds a layer of corrosion resistance. Its robust construction, combined with the detailed specifications above, makes it a versatile tool for telecom, broadcast, and research applications.nn
Conclusion: Why This Attenuator Stands Out
nnIn summary, this RF attenuator delivers exceptional performance across a broad frequency spectrum from DC to 3000 MHz. The attenuates value options from 1 to 40 dB, combined with tight tolerances and high return loss, ensure reliable signal reduction without compromising quality. Its rugged design, including IP65 protection and wide temperature range, makes it suitable for both lab and field use. Whether you are optimizing a communications system or calibrating test equipment, this component offers the precision and durability required. Invest in this attenuator to maintain signal integrity and enhance your system’s overall performance.
