Introduction: The Critical Role of Precision RF Adapters
nnIn the demanding world of RF and microwave systems, every connection point is a potential source of signal degradation. The Mini DIN Male to DIN Female RF Adapter emerges as a precision-engineered solution purpose-built to maintain signal fidelity in mission-critical environments. This 50 Ohm connector adapter provides optimal impedance matching essential for seamless transmission across a wide bandwidth, making it indispensable in telecommunications, aerospace, and defense applications. Engineers and system designers require components that deliver consistent performance under extreme conditions, and this adapter answers that call with robust construction and advanced materials.nn

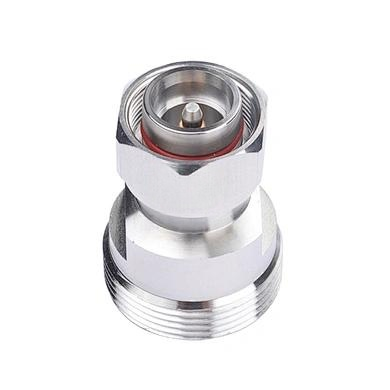

Understanding the Mini DIN Male to DIN Female RF Adapter Design
nnThe adapter features a robust Mini DIN Male connector interface with exceptional material quality. The center contact utilizes tin bronze with silver plating to maximize conductivity while resisting corrosion. The outer conductor and body employ brass with trimetal plating, offering superior durability and reliable electrical performance. The PTFE dielectric core stands as a critical component, minimizing signal loss through its low dissipation factor, while the integrated silicone rubber gasket provides comprehensive environmental sealing against moisture and particulate ingress.nn
Key Characteristics of This 50 Ohm Connector Adapter
nnThe electrical parameters of this RF connector underscore its engineering excellence. The adapter supports a frequency range from DC to 11 GHz, making it suitable for both traditional and modern high-frequency systems. Insulation resistance exceeds 5000 MΩ, ensuring minimal leakage current. Contact resistance values are exceptionally low: the 4.3-10 male center contact stays below 1.5 mΩ, while the DIN female center contact remains under 0.4 mΩ. Outer contact resistance is equally impressive, with the male side at ≤1.0 mΩ and the female side at ≤0.2 mΩ. This precision translates directly into lower insertion loss and stable Voltage Standing Wave Ratio (VSWR).nn
Specifications and Performance Data
nn
| Parameter | Value / Detail |
|---|---|
| Connector Type | Mini DIN 4.3/10 Straight Male to DIN Female |
| Center Contact Material / Plating | Tin Bronze / Silver |
| Body & Outer Conductor | Brass / Trimetal |
| Dielectric Material | PTFE |
| Gasket Material | Silicone Rubber |
| Nominal Impedance | 50 Ohm |
| Frequency Range | DC ~ 11 GHz |
| Insulation Resistance | ≥ 5000 MΩ |
| Contact Resistance – Center (Male 4.3-10) | ≤ 1.5 mΩ |
| Contact Resistance – Center (Female DIN) | ≤ 0.4 mΩ |
| Contact Resistance – Outer (Male) | ≤ 1.0 mΩ |
| Contact Resistance – Outer (Female) | ≤ 0.2 mΩ |
| Dielectric Strength | 2500 V rms |
| Working Voltage | 1000 V rms |
| Insertion Loss @ 3 GHz | ≤ 0.10 dB |
| VSWR | ≤ 1.10 @ DC ~ 3.0 GHz |
| Durability (Mating Cycles) | ≥ 500 cycles |
| Mechanical Shock Test | MIL-STD-202F, Method 107G, Condition B |
| Vibration Test | MIL-STD-202, Method 204, Condition B |
| Operating Temperature Range | -65 °C to +165 °C |
| RoHS Compliance | Yes |
nn
Versatility Across RF and DC Power Applications
nnThis RF connector excels not only in high-frequency signal transmission but also as a reliable DC power connector adapter. Its design allows stable power delivery through the same robust interface, making it ideal for systems where space is constrained and multiple functions must be served by a single connection point. Whether employed in satellite communications base stations, laboratory test equipment, or radar systems, the adapter maintains exceptional signal integrity and power-handling capability.nn
Designed for the Harshest Environments
nnEngineered for durability, this adapter undergoes rigorous testing to meet MIL-STD specifications for shock, vibration, and extreme temperature fluctuations. Its operating temperature range spans from -65°C to +165°C, ensuring reliable performance in environments ranging from Arctic conditions to desert heat. The low contact resistance and high dielectric strength enhance its suitability for high-power applications where efficiency and safety are paramount. With a durability rating exceeding 500 mating cycles, the adapter is built for long-term reliability in systems requiring repeated connections. RoHS compliance further underscores its sustainability for modern engineering projects.nn
Conclusion: A Benchmark for RF Connectivity
nnThe Mini DIN Male to DIN Female RF Adapter stands as a versatile and high-performance interconnect solution for professionals who demand uncompromising reliability. This 50 Ohm connector adapter guarantees compatibility across a broad spectrum of RF and power systems, while the precision-machined Mini DIN Male connector ensures a secure, repeatable fit. Whether acting as an RF connector or a DC power connector adapter, it excels in applications requiring low signal loss, high-frequency stability, and robust mechanical endurance. By combining advanced materials with stringent manufacturing standards and rigorous quality control, this adapter sets a new benchmark for performance in the interconnect industry. For engineers working with complex RF architectures, it delivers seamless connectivity and ensures optimal performance in even the most demanding transmission environments.
