Understanding the MOP-DL-3GHz-xxW-NM(NF/MM/DM/DF) RF Dummy Load Series
nnIn the world of radio frequency (RF) engineering, reliable termination is paramount. A high-quality RF dummy load provides a precise and stable impedance match, ensuring that transmitted power is absorbed rather than reflected back into the system. The MOP-DL-3GHz-xxW-NM(NF/MM/DM/DF) series is designed to meet the rigorous demands of modern communication systems, offering a flexible and high-performance solution for signal termination and testing.nn
Core Specifications and Performance Metrics
nnThe foundation of any effective RF dummy load lies in its electrical characteristics. This series operates with a characteristic impedance of 50Ω, the industry standard for most RF and microwave systems. Covering a broad frequency range from DC to 3GHz, it accommodates diverse applications, from base station maintenance to laboratory testing.nnThe series is available in six distinct power ratings: 2W, 5W, 25W, 50W, 100W, and 200W. This range ensures a suitable option for low-power signal conditioning or high-power transmitter testing. Because power handling is such a critical factor, selecting the correct rating is essential for preventing damage to both the load and the system under test.nn| Parameter | Specification |n| :— | :— |n| Model Number | MOP-DL-3GHz-xxW-NM(NF/MM/DM/DF) |n| Available Power Options | 2W, 5W, 25W, 50W, 100W, 200W |n| Operating Frequency Range | DC – 3 GHz |n| Characteristic Impedance | 50 Ω |n| Voltage Standing Wave Ratio (VSWR) | ≤ 1.2:1 |n| 3rd Order Intermodulation (PIM3) | ≤ -120 dBc @ 2×33 dBm
≤ -105 dBc @ 2×43 dBm |n| 5th Order Intermodulation (PIM5) | ≤ -145 dBc @ 2×33 dBm
≤ -120 dBc @ 2×43 dBm |n| Operating Temperature Range | -20 °C to +55 °C |n| Operating Humidity | ≤ 95% |nn
Low VSWR and Intermodulation Distortion for Signal Integrity
nnA critical measure of a dummy load’s effectiveness is its Voltage Standing Wave Ratio (VSWR). With a VSWR of ≤1.2:1 across the full frequency band, this series minimizes reflected power, protecting transmitters and ensuring accurate test results. This low reflection makes the load suitable for critical applications where every decibel matters, such as in precision RF measurements and high-reliability base station installations.nnPassive Intermodulation (PIM) is another crucial performance parameter, especially in multi-carrier communication environments. High PIM can degrade signal quality and disrupt network performance. The MOP-DL series demonstrates excellent PIM performance, with PIM3 levels of ≤-120 dBc (at 2×33 dBm) and PIM5 levels of ≤-145 dBc (at 2×33 dBm). This ensures that the dummy load itself does not generate unwanted interference, maintaining clean signal paths even under high power conditions.nn
Connector Flexibility and Application Versatility

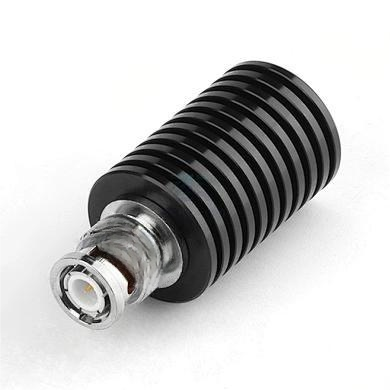

nnA significant advantage of this RF dummy load series is its wide range of connector options. The model designator NM(NF/MM/DM/DF) indicates support for both male and female configurations across several common interface standards. Connectors provided include N-Male and N-Female, DIN-Male and DIN-Female, BNC-Male, and PL259-Male. This adaptability eliminates the need for additional adapters in many setups, simplifying system integration.nnCommon applications include:n- Communication Base Stations: Used as a terminating load during antenna installation, maintenance, and testing to prevent reflections that can damage sensitive transmitter components.n- Test Instruments and RF Equipment: Provides a stable, low-VSWR termination for spectrum analyzers, signal generators, and power meters, ensuring accurate calibration and measurements.n- Transmitter and Receiver Testing: Ideal for bench-top testing of RF amplifiers, transmitters, and other devices where a known, non-radiating load is required.n- Research and Development: Offers a reliable and repeatable load for characterizing new RF designs under controlled laboratory conditions.nn
Selecting the Right RF Dummy Load for Your Application
nnChoosing the appropriate RF dummy load involves matching its specifications to your system’s requirements. First, verify that the frequency range covers all operational frequencies. For applications up to 3GHz, this series is a strong contender. Next, power handling is crucial; always select a load with a power rating that exceeds the maximum output of your transmitter to provide a safety margin.nn
Connector Compatibility and Environmental Considerations
nnConnector type is a practical but vital detail. Ensure the dummy load’s connector matches your system’s output (e.g., N-Female for a transmitter with an N-Male output). The operating temperature range of -20℃ to +55℃ and humidity tolerance of ≤95% make this series suitable for both indoor testing environments and outdoor base station cabinets, provided environmental extremes are respected.nnBy integrating an RF dummy load with the right power, frequency, and impedance characteristics, engineers can maintain signal integrity, protect valuable equipment, and perform accurate measurements. The MOP-DL-3GHz-xxW series offers a reliable and versatile solution, backed by specified low VSWR and low PIM performance, across a meaningful power spectrum. Whether you are troubleshooting a base station or calibrating laboratory gear, this series provides the dependable termination required for clear, interference-free RF signal management.
