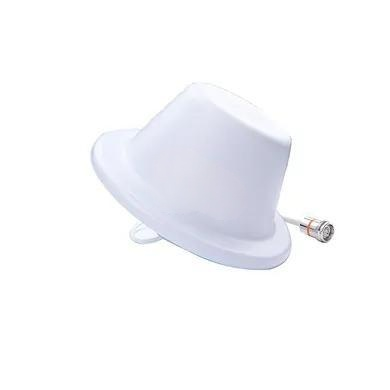

Indoor Omni Ceiling Antenna with 4.3-10 Female 698-4000MHz: Optimal Signal Coverage for Modern Spaces
In today’s connected world, achieving reliable indoor signal coverage is critical for seamless communication and data transmission. Whether you are streamlining operations in a corporate office, enhancing customer experience in a bustling shopping mall, or ensuring smooth streaming at home, the right antenna can make all the difference. We highly recommend the indoor Omni Ceiling Antenna with 4.3-10 female 698-4000MHz as a top-tier solution for these environments. This antenna delivers robust, omnidirectional signal distribution across a wide frequency range, making it an indispensable asset for boosting network performance.
Exceptional Performance and Versatility
As an indoor omni ceiling antenna, our indoor Omni Ceiling Antenna with 4.3-10 female 698-4000MHz offers outstanding performance tailored to diverse communication needs. Its expansive frequency coverage from 698 to 4000MHz ensures compatibility with multiple standards, including 4G, 5G, Wi-Fi, and LTE bands. This broad adaptability means whether deployed in a high-tech office environment or a home entertainment hub, the antenna consistently meets signal transmission requirements. The omnidirectional design eliminates dead zones by providing 360-degree coverage, ensuring every corner benefits from strong, stable connectivity.
Robust Mechanical Build for Easy Installation
The mechanical specifications of the indoor Omni Ceiling Antenna with 4.3-10 female 698-4000MHz are engineered for reliability and convenience. It features a 4.3-10 Female connector, known for its superior electrical connection and mechanical stability—this guarantees firm, long-lasting attachment and minimal signal loss. The antenna dimensions are compact at Φ204mm by 115mm, and it weighs just 0.5kg, making it exceptionally lightweight and unobtrusive. Crafted from durable ABS material, the housing offers both lightness and resilience. Installation on standard drop ceilings is straightforward, requiring no structural reinforcement, which makes this antenna ideal for retrofitting into existing buildings without added burden.
Electrical Excellence for Superior Signal Quality
When it comes to electrical parameters, the indoor Omni Ceiling Antenna with 4.3-10 female 698-4000MHz shines with balanced efficiency and stability. The gain performance adjusts intelligently across the frequency range, with values reaching 2dBi at lower bands and up to 5dBi at higher frequencies, optimizing coverage density. The horizontal 3dB beamwidth is a full 360 degrees, ensuring symmetrical all-around distribution. The vertical 3dB beamwidth spans 85 degrees at lower frequencies and narrows to 35 degrees at higher ones, effectively focusing energy where needed. Key to its performance is a very low voltage standing wave ratio (VSWR) of ≤1.8 at lower bands and ≤1.5 at higher bands, indicating minimal signal reflection and maximum power transfer. Input impedance is a standard 50Ω, and polarization is vertical, aligning with common system requirements. Intermodulation distortion (IM3) is suppressed to ≤-150dBc, which drastically reduces interference in multi-carrier setups. The antenna supports maximum input power up to 50W and incorporates DC grounding for robust lightning protection, ensuring safety and longevity.
| Parameter | Specification |
|---|---|
| Frequency Range | 698 – 4000 MHz |
| Gain | 2 dBi (low band) / 5 dBi (high band) |
| Horizontal 3dB Beamwidth | 360° |
| Vertical 3dB Beamwidth | 85° (low) / 35° (high) |
| VSWR | ≤1.8 (low) / ≤1.5 (high) |
| Input Impedance | 50 Ω |
| Polarization | Vertical |
| Intermodulation (IM3, 2x33dBm) | ≤ -150 dBc |
| Max Input Power | 50 W |
| Connector | 4.3-10 Female |
| Lightning Protection | DC Ground |
| Antenna Dimensions | Φ204 x 115 mm |
| Cover Material | ABS |
| Weight | 0.5 kg |
| Operating Temperature | -40°C to +60°C |
Adaptable to Any Environment
The indoor Omni Ceiling Antenna with 4.3-10 female 698-4000MHz is built to withstand varied indoor climates, operating reliably within a temperature range of -40°C to +60°C. This resilience ensures consistent performance in heated office spaces, chilly warehouses, or humid retail areas. Whether you are a company aiming for efficient, uninterrupted communications or a household prioritizing strong Wi-Fi coverage, this antenna represents a smart, future-proof investment. Its combination of wideband flexibility, low distortion, and simple installation makes it the premier choice for elevating signal quality in any indoor setting.
In conclusion, the indoor Omni Ceiling Antenna with 4.3-10 female 698-4000MHz stands out as a high-performance, reliable solution for modern indoor coverage challenges. Its careful design balances electrical efficiency, mechanical durability, and ease of use, delivering exceptional value wherever it is deployed. For anyone seeking to enhance connectivity with a proven antenna system, this model offers the ideal blend of power and precision.
