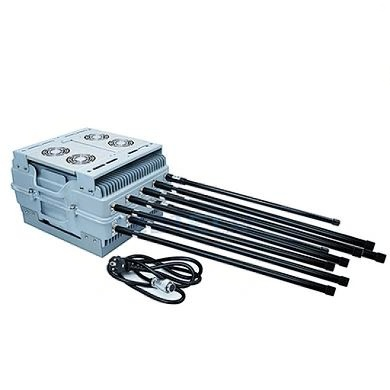

Outdoor Multi-Band Signal Jammer: Engineered for Demanding Environments
nn
In today’s hyper-connected world, maintaining information security and ensuring signal isolation in sensitive areas has become a critical challenge. The outdoor multi-band signal jammer emerges as a robust solution, engineered specifically for harsh environments where reliable signal blocking is non-negotiable. Whether deployed at airports, industrial facilities, or high-stakes security projects, this device delivers comprehensive frequency coverage and unwavering performance. With its rugged construction and advanced cooling system, it supports uninterrupted 24/7 operation, making it an indispensable tool for professionals who demand absolute control over signal dissemination.
nn
This outdoor multi-band signal jammer is not just a single-purpose device; it is a versatile platform capable of blocking a wide spectrum of communication signals. From legacy 2G networks to the latest 5G frequencies, and even optional UHF/VHF bands, it ensures that no signal slips through. Its adaptive shielding range, which spans from 20 to 200 meters depending on surrounding signal strength, provides both precision and flexibility. The unit’s aluminum alloy shell and built-in fans are designed to withstand extreme temperatures and environmental stress, guaranteeing long-term reliability in outdoor installations.
nn
Comprehensive Frequency Coverage and Technical Specifications
nn
At the heart of the outdoor multi-band signal jammer lies its capability to manage nine adjustable frequency bands, each delivering a consistent output power of 50 watts. This design ensures that every targeted frequency is neutralized with equal intensity, preventing communication leaks. Below is the detailed breakdown of the frequency bands and their corresponding output ports:
nn
| Channel | Frequency Range | Average Output Power |
|---|---|---|
| 1 | CDMA / GSM 851-960 MHz | 47 dBm / 50W |
| 2 | DCS / PCS 1805-1990 MHz | 47 dBm / 50W |
| 3 | 3G 2110-2170 MHz | 47 dBm / 50W |
| 4 | 4G 700/800 (700-803 / 738-821 MHz) | 47 dBm / 50W |
| 5 | 4G 2600 (2500-2690 MHz) | 47 dBm / 50W |
| 6 | 5G 3500/3700 (3400-3800 MHz) | 47 dBm / 50W |
| Option 7 | 5G 600 / 5G 1500 (617-698 / 1427-1518 MHz) | 47 dBm / 50W |
| Option 8 | WIFI 2.4G / 4G 2300 (2300-2500 MHz) | 47 dBm / 50W |
| Option 9 | WIFI 5.8G (5725-5850 MHz) | 47 dBm / 50W |
nn
Power Supply and Physical Dimensions
nn
| Parameter | Specification |
|---|---|
| Power Supply | AC Adapter 50-60 Hz (AC 110V or 240V to DC 27V) |
| Total Output Power | 450W (50W per channel) |
| Shielding Radius | 20-200 meters (depends on signal strength) |
| Warranty | One year from delivery date |
| Device Dimensions (WxHxL) | 510 x 450 x 240 mm |
| Package Dimensions | 65 x 55 x 35 cm |
| Net Weight | 29 kg |
| Gross Weight | 35 kg (excluding antennas) |
nn
Antenna Options and Performance Characteristics
nn
To maximize the effectiveness of your outdoor multi-band signal jammer, two antenna options are available, each tailored for specific coverage requirements. The omnidirectional antenna provides 360-degree horizontal coverage, ideal for broad area denial, while the directional antenna offers focused beamwidth for targeted suppression. Below are the detailed specifications:
nn
| Antenna Type | Dimensions (LxWxH) | Net Weight | Gain | VSWR | Beamwidth |
|---|---|---|---|---|---|
| Omni Directional | 900 x 35 mm | 1 kg | 5-10 dBi | 1.5 | H: 360° |
| Directional | 125 x 25 x 8.5 cm | 10 kg | 12-20 dBi | 1.5 | H: 60-90°, V: 20-30° |
nn
Conclusion: Reliable Signal Isolation for High-Stakes Operations
nn
The outdoor multi-band signal jammer stands as a testimony to engineering excellence, providing a powerful and adaptable solution for environments where signal security is paramount. Its comprehensive frequency coverage, from CDMA to 5G and optional UHF/VHF bands, ensures that no potential leak is left unaddressed. With a total output of 450W and a shielding radius that adapts to real-world conditions, this device offers both strength and flexibility. The rugged construction, combined with optional antenna configurations, allows for seamless integration into demanding projects such as military compounds, government buildings, or industrial zones. By choosing this outdoor multi-band signal jammer, you invest in a tool that not only blocks signals but also safeguards your operational integrity, ensuring peace of mind in an increasingly wireless world.
