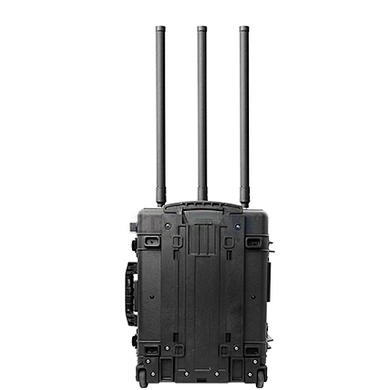

Introducing the MOP-SJP-60W-6B Portable Jammer: Uncompromising Signal Control in the Field
nnWhen security and tactical operations demand reliable signal disruption, the MOP-SJP-60W-6B stands as a powerful and portable solution for mobile phone frequency jamming. Encased in a discreet, rugged suitcase design, this high-power jammer is engineered for rapid deployment and intuitive on-site operation. Its built-in lithium batteries ensure independent, continuous operation for up to two hours, allowing operatives to maintain flexibility without reliance on external power sources. The transmitting power can be precisely adapted to varying operational needs, while the integrated panel antenna provides immediate application upon arrival. For extended missions, the internal batteries are rechargeable even during active operation, and the device ships with a wide-range power adapter suitable for worldwide voltage standards.nnThe heart of this system is its PLL synthesizer-controlled power amplifier, covering critical GSM and UMTS frequency ranges from 850 to 2500 MHz. This adaptability makes the MOP-SJP-60W-6B ideal for changing environments, from urban centers to remote outposts. The unit’s thermal management is equally robust: a specialized design channels the heat generated by the power amplifier outward, enabling sustained use under demanding tropical conditions without performance degradation. This portable jammer is purpose-built for law enforcement and military forces requiring durable reliability in the field, and its form factor allows for vehicle mounting to enhance mobility when securing areas against radio-controlled improvised explosive devices (RCIEDs).nn
Technical Specifications and Performance Data
nnTo fully appreciate the capabilities of the MOP-SJP-60W-6B, it is essential to examine its technical architecture. The table below details the output interface, shielded frequency bands, and RF output power for each of the six independent jamming channels. All specifications are presented for clear reference.nn
| Channel | Shielded Frequency Band | RF Output Power (±1dBm) |
|---|---|---|
| CH1 | 2110–2170 MHz | 40 dBm |
| CH2 | 1805–1920 MHz | 40 dBm |
| CH3 | 925–960 MHz | 40 dBm |
| CH4 | 2400–2500 MHz | 40 dBm |
| CH5 | 2110–2170 MHz | 40 dBm |
| CH6 | 851–894 MHz | 40 dBm |
nn
General Operating Parameters
nnBeyond the channel-specific data, the unit’s overall system specifications provide deeper insight into its field readiness.nn
| Parameter | Value |
|---|---|
| Total RF Output Power | Up to 60 Watts (all channels) |
| Power Supply | AC 220V |
| DC Power Input | 24V DC, 15A (with internal battery) |
| Battery Runtime | Up to 2 hours |
| Jamming Area | 20–80 meters (varies by signal density) |
| Power Consumption | 150W |
| Weight | 12 kg |
| Dimensions (L×W×H) | 43 × 37 × 20 cm |
| Humidity Range | 30%–95% |
| Operating Temperature | -20°C to +55°C |
nn
Advanced Features and Customization Options
nn
Modular Construction and Smart Cooling
nThe MOP-SJP-60W-6B employs a modular design that simplifies maintenance, repair, and future upgrades. Its frequency scan technology enables intelligent targeting, jamming up to six distinct modules simultaneously. A systematic smart cooling system ensures stable performance during prolonged deployment, while independent switches for each frequency band allow operators to control specific channels without affecting others. The power amplifier protection circuitry further guarantees reliability, safeguarding the device from voltage spikes and thermal stress.nn
Configurable Frequency Coverage for Diverse Missions
nThis portable jammer can be customized to address a comprehensive range of frequencies, including AM and FM radio, VHF, UHF, 450 MHz, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA, LTE 700/800/2300/2600, GPS, Galileo, Compass, Glonass, Wi-Fi, WiMAX, and UAV/drone signals. This versatility makes it a strategic asset for countering diverse threats, from cellular-based IEDs to civilian drone intrusions. By focusing exclusively on downlink frequencies, the device avoids interfering with base stations, preserving the integrity of friendly communications networks.nn
Conclusion: The Strategic Value of the MOP-SJP-60W-6B Portable Jammer
nnIn the high-stakes realm of electronic warfare and security operations, the MOP-SJP-60W-6B delivers unmatched portability, power, and precision. Its design integrates rapid deployment, thermal resilience, and customizable frequency coverage into a single, man-portable system. Whether supporting law enforcement in urban environments or providing mobile protection against RCIEDs in the field, this portable jammer ensures operational control over the electromagnetic spectrum. With its robust construction, intuitive interfaces, and flexible power options, the MOP-SJP-60W-6B remains a cornerstone of modern signal disruption technology.
