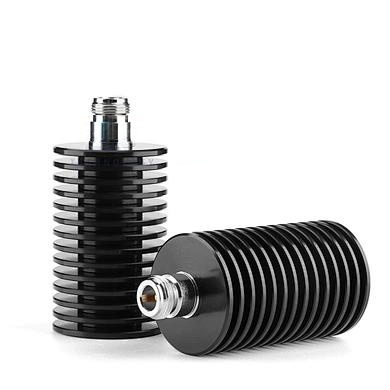

Understanding the MOP-DL-3GHz-xxW-NM(NF/MM/DM/DF) Series: A Reliable Low PIM Termination Solution
nnIn modern telecommunications and RF engineering, signal integrity is paramount. The low PIM termination series, specifically the MOP-DL-3GHz-xxW-NM(NF/MM/DM/DF), offers robust performance across a wide frequency range while maintaining exceptional passive intermodulation (PIM) characteristics. Whether you are optimizing a cellular base station, testing distributed antenna systems, or deploying in-building solutions, this termination series provides the reliability and precision required for critical applications.nnThe design is engineered to handle power levels from 2W up to 200W, making it a versatile choice for both low-power testing and high-power transmitter terminations. The frequency coverage from DC to 3GHz ensures compatibility with most common wireless standards, including GSM, CDMA, LTE, and early 5G deployments. With a characteristic impedance of 50 ohms, it seamlessly integrates into standard RF systems without requiring additional matching networks.nn
Key Electrical and Mechanical Specifications
nnThe core performance metrics of this low PIM termination are strictly controlled to minimize signal reflection and distortion. The voltage standing wave ratio (VSWR) is maintained at ≤1.2:1 across the entire frequency band, which translates to less than 3.6% reflected power. This low VSWR is essential for protecting sensitive transmitter components and ensuring maximum power transfer to the load.nnA critical feature is its PIM3 and PIM5 performance. At 2x33dBm test tones, the PIM3 is ≤-120 dBc and PIM5 is ≤-145 dBc, ensuring minimal intermodulation distortion in multi-carrier environments. For higher power testing (2x43dBm tones), the PIM3 remains ≤-105 dBc and PIM5 ≤-120 dBc. These values are among the industry standards for maintaining signal purity in dense RF environments.nn
Comprehensive Technical Data
nnBelow is the complete set of specifications for the MOP-DL-3GHz series. All parameters are presented in a structured format for quick reference and comparison.nn
| Parameter | Value / Range | Notes |
|---|---|---|
| Model Number | MOP-DL-3GHz-xxW-NM(NF/MM/DM/DF) | Power rating varies by suffix |
| Power Handling | 2W, 5W, 25W, 50W, 100W, 200W | Select based on application |
| Frequency Range | DC – 3 GHz | Full DC to 3GHz coverage |
| Impedance | 50 Ω | Standard RF characteristic |
| VSWR | ≤1.2:1 | Across entire frequency band |
| PIM3 (2×33 dBm) | ≤ -120 dBc | Low-power test condition |
| PIM3 (2×43 dBm) | ≤ -105 dBc | High-power test condition |
| PIM5 (2×33 dBm) | ≤ -145 dBc | Low-power test condition |
| PIM5 (2×43 dBm) | ≤ -120 dBc | High-power test condition |
| Connector Options | N-Male, N-Female, DIN-Male, DIN-Female, BNC-Male, PL259-Male | Other custom types available |
| Operating Temperature | -20°C to +55°C | Industrial ambient range |
| Humidity | ≤95% (non-condensing) | High humidity tolerant |
nn
Connector Variants and Application Suitability
nnThe series offers multiple connector configurations to match existing cabling and port types. The most common options include N-type (both male and female), DIN 7/16 (both male and female), BNC-male, and PL259-male. This flexibility allows the low PIM termination to be used in laboratory environments with N-type test cables, in outdoor base stations with DIN connectors, or in amateur radio setups with PL259 interfaces.nnFor mission-critical deployments where PIM performance directly impacts data throughput and voice call quality, choosing the correct connector is as important as selecting the proper power rating. All connectors are manufactured with precision to maintain the specified electrical performance.nn
Conclusion: Why This Low PIM Termination Matters for Your RF System
nnThe MOP-DL-3GHz series delivers a combination of broad frequency coverage, multiple power handling options, and exceptionally low PIM performance that is often required for modern wireless infrastructure. Whether you are terminating a transmitter during testing, calibrating a network analyzer, or providing a stable load for a base station during maintenance, this low PIM termination ensures minimal signal degradation and consistent results.nnBy adhering to strict VSWR and PIM specifications, this termination protects your equipment from reflected power and intermodulation artifacts. Its wide operating temperature range and high humidity tolerance make it suitable for indoor and outdoor use in various climates. With multiple connector choices and power levels from 2W to 200W, you can select the exact configuration that matches your system requirements without compromising performance. For engineers and technicians seeking a reliable, high-quality termination solution, this series remains a strong choice.
