Optimizing Multi-Network Connectivity with a High-Performance Triplexer
nnIn the rapidly evolving landscape of telecommunications, managing multiple frequency bands across various generations of technology—from 2G and 3G to 4G and 5G—poses a significant challenge for network operators. The triplexer emerges as a sophisticated RF solution designed to streamline frequency management, offering exceptional efficiency and reliability. This triband combiner expertly handles three critical cellular bands—1710-1880 MHz, 1920-2170 MHz, and 2300-2690 MHz—within a single, compact unit. Serving as both a 3 in 1 combiner and a signal separator, it integrates seamlessly into 2G 3G 4G 5G combiner applications, making it indispensable for modern telecom infrastructure. By enabling operators to optimize limited tower space while supporting legacy and next-generation services, this mobile signal combiner delivers a robust performance that minimizes signal degradation and maintains network integrity.nn
Engineering Excellence in the 3 in 1 Combiner
nnAt the heart of this triband combiner lies precise filtering architecture that ensures outstanding signal quality across all operational bands. With an insertion loss below 0.35 dB and port isolation exceeding 50 dB, the device guarantees minimal signal degradation and robust protection against interference. The 3 in 1 combiner configuration demonstrates remarkable linearity, with intermodulation products suppressed to -150 dBc—even when handling two high-power 43 dBm signals simultaneously. This critical feature prevents interference in dense cellular deployments, ensuring reliable connectivity for users. Engineered for telecom base stations and distributed antenna systems, this mobile signal combiner maintains outstanding return loss of ≥20 dB and a VSWR of ≤1.3, reflecting superior impedance matching. The device’s ability to process multiple bands without compromising performance makes it a cornerstone for operators modernizing their RF front-end systems.nn
Technical Specifications in a Compact Form
nnThe specifications of this triplexer are meticulously designed to meet the rigorous demands of outdoor cellular infrastructure. Below, the key parameters are organized for clarity:nn
| Parameter | Value |
|---|---|
| Frequency Range (MHz) | 1710-1880, 1920-2170, 2300-2690 |
| Insertion Loss (dB) | ≤0.35 |
| Return Loss (dB) | ≥20 |
| Isolation (dB) | >50 |
| VSWR | ≤1.3:1 |
| Intermodulation Products (dBc) | ≤ -150 (with 2 x 43 dBm) |
| Maximum Input Power (W) | 200 |
| Impedance (Ω) | 50 |
| Operating Temperature (°C) | -25 to +65 |
| Relative Humidity (%) | 5 – 95 |
| Lightning Protection (kA) | 3 (10/350 μs pulse) |
| Ingress Protection | IP67 |
| Size (mm) | 170 x 140 x 100 (twin) |
| Weight (kg) | 3.8 |
| Connector Type | 4.3-10 female |
nn
Durability and Installation Advantages for the Mobile Signal Combiner

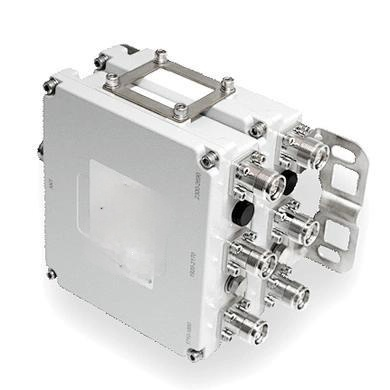

nnThe practical implementation benefits of this triplexer are pronounced in its physical design and operational resilience. The compact twin-unit configuration, measuring 170x140x100 mm, offers significant space savings compared to traditional discrete filtering solutions. Weighing just 3.8 kg, it facilitates easy installation on towers or in cabinets. The device is built for continuous operation across temperatures from -25°C to +65°C and humidity levels from 5% to 95%, ensuring stable performance through seasonal variations and harsh weather. The integrated lightning protection, rated at 3 kA for 10/350 μs pulses, adds crucial durability for exposed outdoor installations. The inclusion of 4.3-10 female connectors provides secure, low-PIM interfaces that meet current industry standards for reliability in 2G 3G 4G 5G combiner applications, while the IP67-rated enclosure safeguards against dust and water ingress. These characteristics make the mobile signal combiner equally suitable for urban macro-cell deployments and remote rural installations where maintenance access may be limited.nn
Future-Ready 5G Combiner Performance
nnLooking toward network evolution, this triband combiner platform offers operators flexible infrastructure that adapts to changing spectrum allocations and technology transitions. The careful frequency planning, covering 1710-2690 MHz, ensures compatibility with existing 2G, 3G, and 4G services while remaining prepared for emerging 5G combiner requirements within these bands. The combination of high power handling, exceptional signal purity, and robust construction positions this 3 in 1 combiner as a long-term investment for carriers modernizing their RF front-end systems. Whether deployed in traditional base stations, small cell networks, or specialized in-building solutions, this device delivers the performance and reliability needed to support the increasingly complex mix of mobile technologies. By optimizing both capital and operational expenditures, the triplexer enables network operators to enhance signal coverage and capacity with confidence.nnIn conclusion, this sophisticated triband combiner stands as a testament to engineering innovation, offering a seamless solution for the challenges of multi-generational wireless networks. With its exceptional specifications, durable design, and future-ready adaptability, it is an essential component for any operator seeking to optimize network performance and prepare for the next wave of 5G evolution.
