Unlock Seamless Connectivity with the 300-6500MHz Wide Band Omni Directional Antenna
In today’s fast-paced digital landscape, reliable wireless communication is non-negotiable. Whether you are managing a public safety network, expanding cellular coverage, or supporting IoT deployments, the antenna you choose is the linchpin of performance. Enter the model MOP-OOA-365-3-NF: a wide band omni directional antenna that delivers exceptional versatility across a staggering frequency spectrum. Designed to bridge the gap between legacy systems and modern high-bandwidth demands, this antenna ensures uninterrupted signal distribution in the most challenging environments. But what makes this model stand out in a sea of options? Let’s dive into its engineering excellence.
The Power of a Wide Band Omni Directional Antenna in Modern Networks
An antenna’s bandwidth defines its adaptability. Covering 300MHz to 6500MHz, the MOP-OOA-365-3-NF spans VHF, UHF, cellular (including 4G/LTE and 5G sub-6GHz), Wi-Fi, and private radio bands. This makes it an ideal backbone for multi-service installations where a single antenna must handle diverse protocols. Unlike narrowband designs that require multiple units, this wide band omni directional antenna simplifies deployment and reduces hardware costs, all while maintaining a 360° horizontal beamwidth for blanket coverage.
Key Technical Specifications at a Glance
To appreciate its capabilities, examine the core parameters that define its performance. Below is a comprehensive breakdown of the antenna’s engineering specs:
| Parameter | Value |
|---|---|
| Model | MOP-OOA-365-3-NF |
| Frequency Band | 300 – 6500 MHz |
| Gain | 3 dBi |
| VSWR | ≤ 1.5 |
| Polarization Type | Vertical |
| Input Impedance | 50 Ω |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 6° |
| Maximum Power Handling | 50 W |
| Connector Type | N Female |
| Lightning Protection | DC Ground |
| Dimensions (H × W) | 1000 × 600 mm |
| Weight | ≤ 5 kg |
| Operating Temperature | −30°C to +80°C |
Every specification is engineered for reliability. The ≤1.5 VSWR minimizes signal reflection, ensuring maximum power transfer from transmitter to antenna. A 3 dBi gain delivers a balanced trade-off between coverage area and signal strength, while the broad 6° vertical beamwidth provides excellent elevation coverage—critical for penetrating multi-story structures or reaching elevated equipment.
Robust Design Meets Environmental Resilience

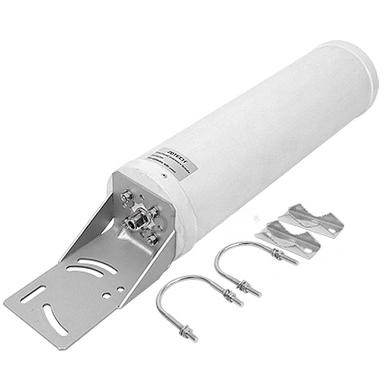

When antennas are exposed to harsh outdoor conditions, durability directly impacts network uptime. The MOP-OOA-365-3-NF is built to withstand extreme temperatures from -30°C to +80°C, making it suitable for arctic installations to desert deployments. Its DC ground lightning protection adds an essential safety layer, diverting surge currents without compromising RF performance. Weighing under 5 kg and measuring 1000×600 mm, this wide band omni directional antenna strikes a careful balance between structural integrity and ease of installation—no heavy lifting equipment is required for most mounting scenarios.
Application Versatility
This antenna excels in applications where omnidirectional coverage over a vast frequency range is paramount. Typical use cases include:
– Neutral host in‑building cellular distribution
– Public safety networks (e.g., P25, TETRA)
– Wi‑Fi 6E and private LTE backhaul
– Smart grid metering and industrial IoT gateways
– Temporary event coverage and emergency response
Because it operates from 300 MHz through 6.5 GHz, a single unit can replace multiple sector or narrowband antennas, simplifying pole inventory and cabling.
Customization Options to Fit Your Exact Needs
While the standard configuration addresses the vast majority of installations, every environment has unique requirements. For other customized frequency ranges or gain values, our engineering team is ready to tailor this wide band omni directional antenna to your specific project. Whether you need a narrow band optimized for a single spectrum, a higher gain variant for longer reach, or a modified connector type, we can adjust the design without compromising the core ruggedness and omnidirectional performance.
Conclusion: A Single Antenna, Infinite Possibilities
The model MOP-OOA-365-3-NF is more than just a component—it is a strategic investment in network agility. By combining a massive 300–6500 MHz bandwidth with a true omnidirectional pattern, robust outdoor durability, and a straightforward N‑Female connector, it eliminates the complexity of multi‑antenna deployments while ensuring consistent, reliable coverage. From dense urban cores to remote industrial sites, this wide band omni directional antenna delivers the connectivity backbone that modern systems demand.
Do not hesitate to contact us for further technical support or to discuss custom frequency ranges and gain options. Equip your network with the antenna that truly does it all.
