High Power Waveguide Load: Engineered for Demanding RF Systems

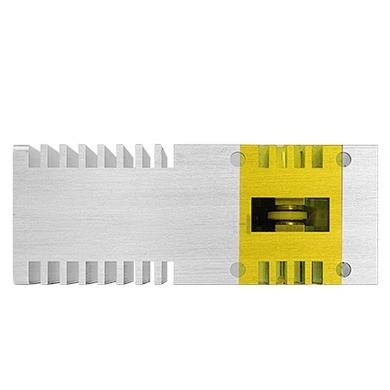

The Model MOP100 High Power Waveguide Load is a professional-grade component designed to meet the rigorous demands of the 8.2–12.5 GHz frequency range. This waveguide load is an ideal choice for high-stakes microwave systems, including radar operations, satellite communication networks, and advanced microwave testing setups. With the capacity to handle up to 3000W of average power, it delivers stable and reliable power termination performance that seamlessly integrates with high power configurations. When paired with a compatible waveguide adapter, it offers flexible connections to diverse transmission lines, making it a versatile asset in any RF engineer’s toolkit.
A standout feature of this waveguide load is its low VSWR (≤1.20:1), which keeps signal reflection below 0.8%. This characteristic ensures efficient power absorption while protecting sensitive front-end devices such as transmitters from potential damage caused by reflected power. The result is a more stable and reliable system operation, even under high power conditions. Whether you are managing high-power radar transmissions or fine-tuning satellite communication signals, this component’s low VSWR design significantly enhances system integrity and longevity.
Rugged Construction for Harsh Environments
The MOP100 is crafted from high-quality aluminum, which undergoes conductive oxidation treatment to improve both conductivity and durability. The final finish is a sea black paint coating that provides exceptional corrosion resistance. This makes the waveguide load particularly suitable for deployment in marine, industrial, or outdoor harsh environments where long-term stability is critical. The robust build ensures that the component can withstand moisture, salt spray, and temperature variations without compromising performance.
Equipped with an FBP flange, the waveguide load enables easy integration into existing systems. For setups that require non-FBP flange configurations, the component works smoothly with a waveguide adapter, offering additional flexibility. The compact dimensions of 401.5 x 190 x 154.2 mm strike an ideal balance between size and resilience, allowing it to fit comfortably in space-constrained racks or enclosures while maintaining the structural integrity needed for high power applications.
Comprehensive Technical Specifications at a Glance
| Parameter | Specification |
|---|---|
| Frequency Range | 8.2–12.5 GHz |
| Voltage Standing Wave Ratio (VSWR) | ≤1.20:1 |
| Average Power Handling | 3000 W |
| Flange Type | FBP |
| Material | Aluminum |
| Surface Treatment | Conductive Oxidation |
| Surface Coating | Sea Black Paint |
| Dimensions (L x W x H) | 401.5 x 190 x 154.2 mm |
Versatile Applications Across Key Industries
This High Power Waveguide Load is engineered for versatility, making it a trusted choice for professionals in various fields. In high-power radar operations, it ensures efficient power absorption and minimal signal reflection, safeguarding expensive transmitter components. For satellite communication signal management, the low VSWR feature helps maintain signal integrity, reducing the risk of interference or degradation. In precise microwave testing environments, the waveguide load provides a consistent and reliable termination point, enabling accurate measurements and reducing test variability.
The combination of high average power handling, compact form factor, and environment-adaptable features makes the MOP100 a go-to solution for engineers who demand reliability. Its ability to integrate with waveguide adapters further extends its usability, allowing it to function seamlessly in diverse system architectures. Whether you are upgrading an existing installation or designing a new high power microwave system, this waveguide load delivers the performance and durability required for long-term success.
Conclusion: A Reliable High Power Waveguide Load for Critical Applications
In summary, the Model MOP100 High Power Waveguide Load stands out as a superior component for professionals working with high-demand microwave systems. Its impressive 3000W average power handling, low VSWR of ≤1.20:1, and rugged construction make it an excellent choice for radar, satellite communication, and microwave testing applications. The use of high-quality aluminum with conductive oxidation and sea black paint ensures long-term durability in harsh environments, while the FBP flange and compatibility with waveguide adapters offer flexible integration options. For those seeking a reliable high power waveguide load that combines performance, durability, and versatility, the MOP100 is a proven solution that meets the most stringent industry standards.
