High-Performance Bandpass Filter for Critical Communication Systems
nn
In the world of telecommunications, signal purity is paramount. When managing high-frequency transmissions in the 3.7–4.2 GHz range, engineers and technicians rely on precision components to eliminate interference and ensure crystal-clear data flow. The high-performance bandpass filter described here is engineered to meet the rigorous demands of modern satellite, broadcast, and point-to-point microwave links. Whether you are upgrading an existing infrastructure or designing a new installation from scratch, understanding its key specifications is essential for achieving optimal system performance.
nn
This filter is designed to pass the 3720–4200 MHz frequency band with minimal loss while aggressively rejecting out-of-band signals. With an insertion loss of ≤0.8 dB, it preserves signal strength, reducing the need for additional amplification. The rejection characteristics are especially noteworthy: the filter provides ≥50 dB of attenuation at the adjacent 3640–3660 MHz range, increasing to ≥65 dB for the broader 3200–3600 MHz spectrum. This ensures that harmful interference from nearby bands—common in dense RF environments—is effectively blocked.
nn
The voltage standing wave ratio (VSWR) is maintained at ≤1.3, indicating excellent impedance matching and minimal signal reflection. This low VSWR translates to better power transfer and reduced stress on connected equipment. The filter operates with a 50 Ω impedance, which is standard for most RF systems, and can handle an average input power of up to 200 W. Such power handling capacity makes it suitable for both base station and repeater applications where robust performance is non-negotiable.
nn
Engineered for Reliability: Key Specifications and Technical Data
nn
When selecting a bandpass filter for outdoor or indoor deployment, environmental resilience is just as critical as electrical performance. This model is rated for operation in temperatures ranging from -10°C to +55°C and can be stored safely between -20°C and +75°C. Relative humidity tolerance spans 5% to 95%, ensuring reliable operation even in humid climates. The unit is designed for both indoor and outdoor use, meeting the IP65 standard for dust and water ingress protection.
nn

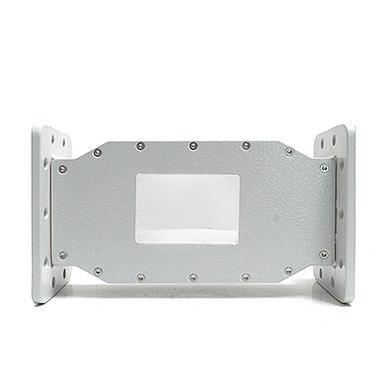

Despite its robust construction, the filter is remarkably lightweight at ≤1.2 kg, facilitating easy installation and handling. Its compact dimensions (174 × 99 × 70.5 mm) without mounting brackets allow it to fit neatly into crowded equipment racks or outdoor enclosures. The connectors are specified as CPR-229G for the input and CPR-229F for the output, both of which are common waveguide flanges in C-band systems. This ensures straightforward integration with existing waveguide runs and antenna feeds.
nn
High-Performance Bandpass Filter Electrical Specifications
nn
| Parameter | Value |
|---|---|
| Frequency Range | 3720–4200 MHz |
| Insertion Loss | ≤0.8 dB |
| Rejection at 3640–3660 MHz | ≥50 dB |
| Rejection at 3620–3640 MHz | ≥55 dB |
| Rejection at 3600–3620 MHz | ≥60 dB |
| Rejection at 3200–3600 MHz | ≥65 dB |
| Voltage Standing Wave Ratio (VSWR) | ≤1.3 |
| Impedance | 50 Ω |
| Input Power (Average) | ≤200 W |
nn
High-Performance Bandpass Filter Mechanical and Environmental Specifications
nn
| Parameter | Value |
|---|---|
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -20°C to +75°C |
| Relative Humidity | 5% to 95% |
| Application Environment | Indoor or Outdoor (IP65) |
| Weight | ≤1.2 kg |
| Dimensions (W × H × D, without brackets) | 174 × 99 × 70.5 mm |
| Input Connector | CPR-229G |
| Output Connector | CPR-229F |
nn
Conclusion: Uncompromising Quality for Your RF Infrastructure
nn
The high-performance bandpass filter detailed above represents a thoughtful balance between electrical performance, mechanical durability, and environmental adaptability. Its combination of low insertion loss, sharp rejection skirts, robust power handling, and IP65-rated enclosure makes it a versatile choice for critical communication links. By integrating this filter into your system, you can effectively isolate the desired frequency band while suppressing interference that could degrade signal quality. For engineers seeking a reliable, specification-driven solution for C-band applications, this filter delivers the performance and longevity required for mission-critical operations.
