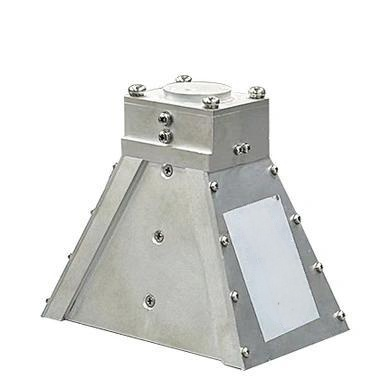

Unleashing Performance: The Broadband 2-18GHz Waveguide Horn Antenna
nnIn the critical world of high-frequency radio communications, radar, and advanced sensing systems, signal integrity is everything. A slight loss in transmission or a dip in gain can mean the difference between mission success and failure. Enter the Waveguide Horn Antenna, a cornerstone of microwave engineering that combines the precision of waveguide propagation with the radiating efficiency of a flared horn. Our Broadband 2-18GHz model is engineered to deliver exceptional performance across an ultra-wide frequency span, making it a definitive High Gain Antenna for demanding applications. This is not just a component—it is a vital gateway for microwave energy, built for engineers and system integrators who refuse to compromise on reliability.nn
Why the Waveguide Horn Antenna Dominates
nnThe design of a Waveguide Horn Antenna is deceptively simple yet profoundly effective. By transitioning from a confined waveguide to an open, flared horn, the antenna efficiently couples electromagnetic energy into free space. This results in superior directivity and gain compared to simpler antenna types. The Broadband 2-18GHz model takes this principle to the next level, maintaining consistent performance across a massive bandwidth. Its high gain, typically 12dBi, ensures weak signals are captured or transmitted with maximum strength, a critical factor in both defense and commercial applications.nn
Critical Applications Across Industries
nnThe versatility of this Horn Antenna makes it indispensable in various high-stakes environments:nn
- n
- Defense and Security: In electronic warfare (EW) systems, radar altimeters, and ground-based surveillance, wide bandwidth and stable radiation patterns are non-negotiable. This antenna delivers exactly that, ensuring reliable detection and jamming capabilities under duress.
- Satellite Communications (SATCOM): Ground stations demand antennas that can handle broad frequency ranges and provide consistent gain. This High Gain Antenna excels in SATCOM links, enabling clear data transmission even in challenging conditions.
- Scientific and Commercial Testing: For spectrum monitoring, RF measurement, and electromagnetic compatibility (EMC) testing, a predictable and high-performance antenna is essential. This model’s precision ensures accurate, repeatable results.
n
n
n
nn
Built for Real-World Environments
nnOutdoor deployment exposes antennas to extremes: temperature swings, moisture, and physical stress. The Broadband 2-18GHz model counters these challenges with a robust ABS housing. This material offers excellent durability, weather resistance, and thermal stability without adding unnecessary weight. Engineers can trust that the antenna will maintain its electrical specifications even after years of service in demanding conditions.nn
Technical Specifications You Can Rely On
nnThe following parameters define the performance envelope of this Waveguide Horn Antenna. Note the exceptional bandwidth and consistent gain characteristics that set it apart.nn
| Parameter | Minimum | Typical | Maximum |
|---|---|---|---|
| Frequency Range | 2 GHz | – | 20 GHz |
| Gain | – | 12 dBi | – |
| Polarization | Linear | ||
| 3dB Beamwidth, E-Plane | 16° | – | 85° |
| 3dB Beamwidth, H-Plane | 18° | – | 77° |
| Cross Polarization Isolation | – | 25 dB | – |
| VSWR | – | 1.5:1 | – |
| Impedance | 50 Ohms | ||
| Power Handling (CW) | – | 50 W | – |
| Power Handling (Peak) | – | 100 W | – |
nn
Design Excellence for System Integration
nnEngineers appreciate a clean, predictable interface. The linear polarization and 50 Ohm impedance of this Horn Antenna ensure seamless integration into existing systems without complex matching networks. The low VSWR of 1.5:1 means minimal reflected power, maximizing the efficiency of the transmitter and reducing heat generation. Whether used in a tightly packed satellite ground station or a mobile radar unit, this High Gain Antenna simplifies system design.nn
Conclusion: The Standard for Broadband Excellence
nnThe Broadband 2-18GHz Waveguide Horn Antenna represents a pinnacle of practical RF engineering. It delivers the high gain, wide bandwidth, and robust construction that mission-critical applications require. From defense and SATCOM to scientific measurement, this antenna is a proven workhorse. When you select this model, you are not just buying a component—you are investing in a reliable interface between your system and the electromagnetic spectrum. Choose the Waveguide Horn Antenna that sets the standard for performance across 2 to 18 GHz.
