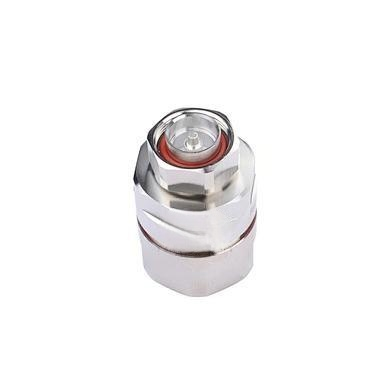

Unmatched Performance with the Precision 4.3-10 RF Coaxial Cable Connector
nn
In the fast-evolving world of telecommunications, signal integrity is non-negotiable. This precision-engineered RF coaxial cable connector delivers exceptional performance for demanding RF applications, from 5G base stations to high-frequency test setups. As a premium RF cable connector, it features a rugged 4.3-10 Mini DIN interface specifically designed for 7/8” flexible RF cables, ensuring reliable connectivity in base station and telecommunications infrastructure. The coaxial cable RF connector boasts superior 50Ω impedance matching, low VSWR, and outstanding passive intermodulation (PIM) performance, making it the go-to choice for professionals who demand uncompromising quality.
nn
This high-performance RF coaxial cable connector maintains excellent signal integrity while the RF cable connector’s straight male configuration provides optimal mating with compatible interfaces. The coaxial cable RF connector is engineered for 5G NR infrastructure, Microwave radio systems, DAS antenna networks, and test and measurement equipment. With its robust design and precision manufacturing, this RF coaxial cable connector ensures long-term reliability in harsh outdoor environments, making it the ideal RF cable connector for professional wireless installations. The coaxial cable RF connector’s threaded coupling mechanism guarantees secure connections resistant to vibration and mechanical stress, while its IP68 sealing class protects against moisture and dust ingress for 24 hours at 1-meter depth.
nn
Key Specifications of the Coaxial Cable RF Connector
nn
To deliver peak performance in critical applications, every parameter of this RF coaxial cable connector is meticulously engineered. Below are the complete technical details, presented in a structured format for clarity.
nn
| Parameter | Specification |
|---|---|
| Product Identification | |
| Model | MOP-CN-MM-CF78 |
| Description | 4.3-10 Straight Male Connector for 7/8” Flexible RF Cable |
| Material and Plating | |
| Inner Conductor Pin | Brass / Silver Plating |
| Inner Conductor Socket | Tin-bronze / Silver Plating |
| Body & Outer Conductor | Brass / Trimetal Plating |
| Insulator | PTFE |
| Gasket | Silicon Rubber |
| Nut | Brass / Nickel Plated |
| Electrical Characteristics | |
| Impedance | 50 Ohm |
| Frequency Range | DC ~ 6 GHz |
| Insulation Resistance | ≥ 10000 MΩ |
| Center Contact Resistance | ≤ 1.5 MΩ |
| Outer Contact Resistance | ≤ 1.5 MΩ |
| Dielectric Strength | 2500 V rms |
| Working Voltage | 1400 V rms |
| Insertion Loss | ≤ 0.10 dB |
| VSWR | ≤ 1.10 |
| PIM (2 x 20W) | ≤ -160 dBc |
| Environmental and Mechanical Specifications | |
| Durability (Matings) | ≥ 500 cycles |
| Thermal Shock Test | MIL-STD-202F, Method 107G, Test Condition B |
| Vibration Test | MIL-STD-202, Method 204, Condition B |
| Temperature Range | -65 ~ +165 °C |
| RoHS Compliant | Yes |
| Sealing Class | IP68 (24 Hrs @ 1M @ 20 °C) |
nn
Why This RF Coaxial Cable Connector Excels in Modern Networks
nn
The combination of low VSWR (≤1.10) and ultra-low PIM (≤-160 dBc) ensures that this RF coaxial cable connector minimizes signal reflections and intermodulation distortion, critical for maintaining high data throughput in 5G NR and MIMO systems. The silver-plated inner conductors and trimetal-plated body provide excellent corrosion resistance and conductivity, while the PTFE insulator guarantees stable dielectric properties across a wide temperature range of -65°C to +165°C. Whether deployed in rooftop antennas, tower-mounted amplifiers, or indoor distributed antenna systems, this coaxial cable RF connector delivers consistent performance.
nn
Built for Harsh Environments
nn
Meeting MIL-STD-202F standards for thermal shock and vibration, this RF cable connector withstands extreme weather and mechanical stress without degradation. The IP68 rating ensures complete protection against dust and prolonged water immersion, making it suitable for outdoor installations where reliability is paramount. Additionally, the RoHS-compliant construction aligns with global environmental standards, ensuring sustainable deployment.
nn
Conclusion: The Ultimate Choice for Your RF Infrastructure
nn
When signal quality and long-term reliability are your top priorities, this precision-engineered RF coaxial cable connector stands as the benchmark. From its robust 4.3-10 Mini DIN interface to its exceptional electrical and mechanical specifications, every detail of this coaxial cable RF connector is optimized for professional-grade performance. Its low insertion loss, superior impedance matching, and durable threaded coupling mechanism make it the definitive RF cable connector for 5G, microwave, and DAS applications. Choose this connector to future-proof your network and ensure seamless, high-fidelity communication in even the most demanding environments.
